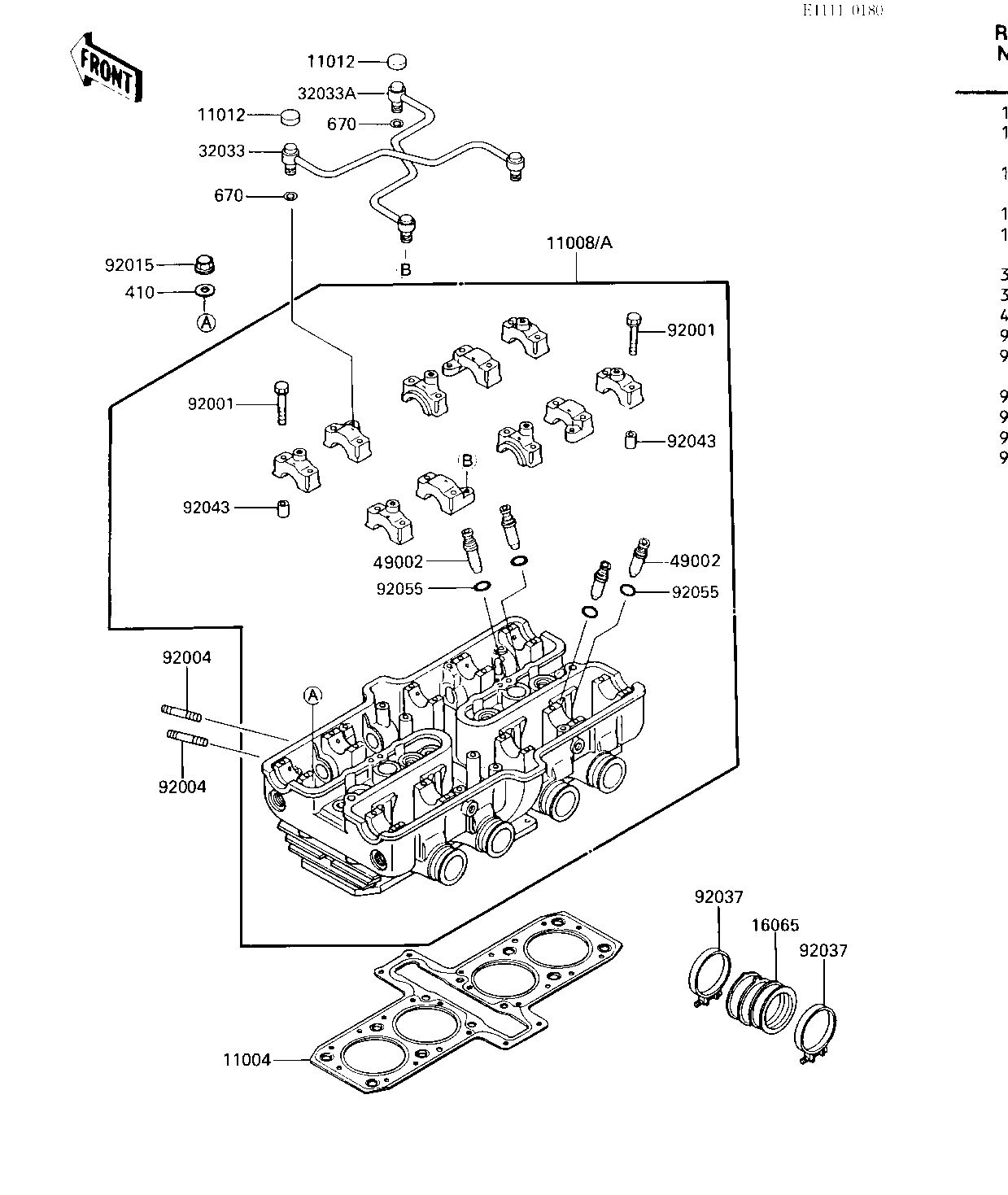

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 11004 | 11004-1152 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-1172 | 1 | CA,US | |
| 11008-1196 (Canada) | 11008A | 11008-1173 | 1 | CN | |
| CAP | 11012 | 11012-1491 | 4 | ||
| HOLDER-CARBURETOR | 16065 | 16065-1129 | 4 | ||
| PIPE | 32033 | 32033-1942 | 1 | ||
| PIPE | 32033A | 32033-1943 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-1060 | 16 | ||
| BOLT,FLANGED,6X38 | 92001 | 92001-1105 | 20 | ||
| STUD,6X27 | 92004 | 92004-066 | 20 | ||
| NUT,CAP,8MM | 92015 | 92015-1151 | 12 | ||
| CLAMP | 92037 | 92037-1326 | 8 | ||
| PIN,DOWEL,6.2X8X14 | 92043 | 92043-1263 | 20 | ||
| RING-O,VALVE GUIDE | 92055 | 92055-1177 | 16 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 12 | ||
| O RING | 670 | 670D1505 | 4 |
