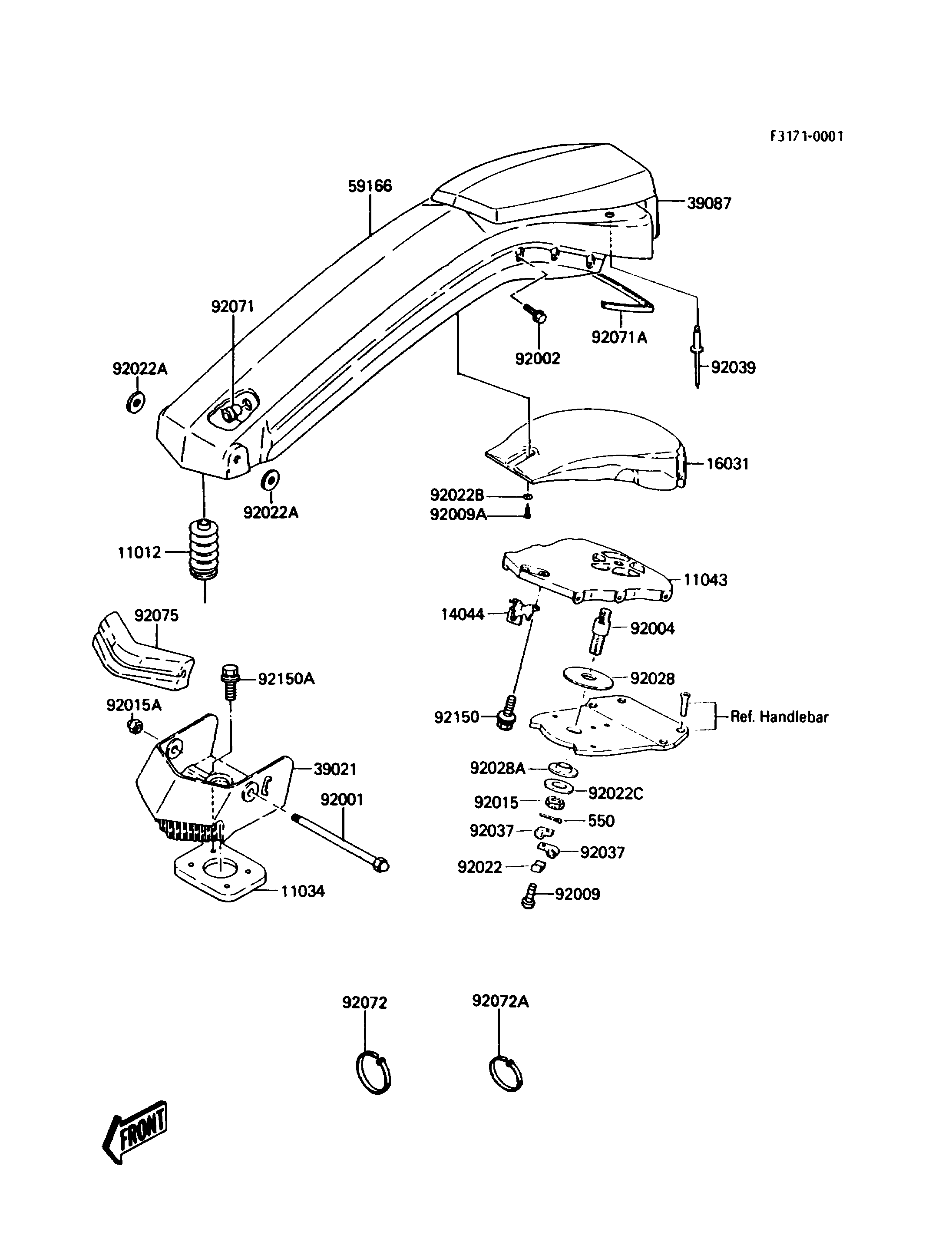

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP. | 11012 | 59176-514 | 1 | ||
| BRACKET,PLATE,HANDLE | 11034 | 59086-538 | 1 | ||
| BRACKET,SUPPORT | 11043 | 11034-3010 | 1 | ||
| HOLDER-CABLE | 14044 | 14044-3001 | 1 | ||
| FLOAT | 16031 | 16031-506 | 1 | ||
| BRACKET-HANDLE POLE,JET WHITE | 39021 | 39021-3701-8C | 1 | ||
| PAD-HANDLE,POLE | 39087 | 39087-3701 | 1 | ||
| POLE-HANDLE,JET WHITE | 59166 | 59166-3002-8C | 1 | ||
| BOLT,14X183 | 92001 | 92001-3018 | 1 | ||
| BOLT,6X16 | 92002 | 92002-3728 | 6 | ||
| STUD | 92004 | 92004-3701 | 1 | ||
| SCREW,5X16 | 92009 | 92009-3736 | 1 | ||
| SCREW | 92009A | 92011-562 | 3 | ||
| NUT,CASTLE,18MM | 92015 | 92015-3006 | 1 | ||
| NUT,14MM | 92015A | 92015-507 | 1 | ||
| WASHER,CLAMP | 92022 | 92022-3014 | 1 | ||
| WASHER,15X36X4.5 | 92022A | 92022-3024 | 2 | ||
| WASHER | 92022B | 92022-563 | 3 | ||
| WASHER | 92022C | 92022-571 | 1 | ||
| BUSHING | 92028 | 92028-512 | 1 | ||
| BUSHING | 92028A | 92028-513 | 1 | ||
| CLAMP,LEAD WIRE | 92037 | 92037-3007 | 2 | ||
| RIVET | 92039 | 92039-3712 | 6 | ||
| GROMMET | 92071 | 92071-530 | 1 | ||
| GROMMET | 92071A | 92071-534 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| BAND,L=149 | 92072A | 92072-031 | 1 | ||
| DAMPER | 92075 | 92075-519 | 1 | ||
| BOLT,6X12 | 92150 | 92150-3709 | 2 | ||
| BOLT,8X30 | 92150A | 92150-3712 | 4 | ||
| PIN-COTTER,4X40 | 550 | 550S4040 | 1 |
| CAP. | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,PLATE,HANDLE | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SUPPORT | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CABLE | |
| REF # | 14044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-HANDLE POLE,JET WHITE | |
| REF # | 39021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-HANDLE,POLE | |
| REF # | 39087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| POLE-HANDLE,JET WHITE | |
| REF # | 59166 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,14X183 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLAMP | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,15X36X4.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,LEAD WIRE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=149 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X30 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4X40 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
