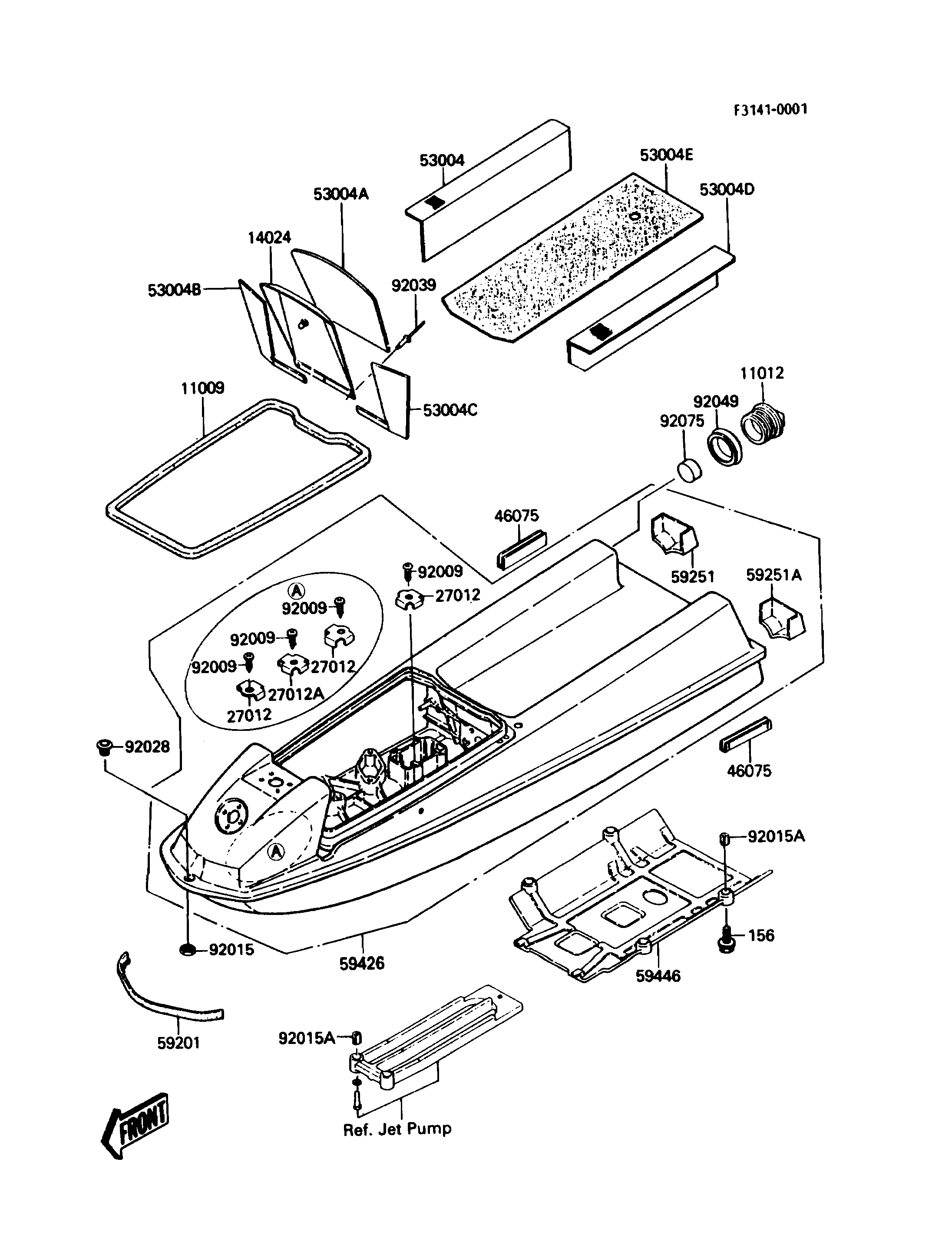

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,ENGINE HOOD | 11009 | 92065-539 | 1 | ||
| CAP | 11012 | 11012-3721 | 1 | ||
| COVER,DASHBOARD | 14024 | 14025-3706 | 1 | ||
| HOOK | 27012 | 27012-501 | 7 | ||
| HOOK | 27012A | 27012-502 | 2 | ||
| GRIP,HULL | 46075 | 46075-3701 | 2 | ||
| MAT,DECK FIN,RH | 53004 | 53004-3701 | 1 | ||
| MAT,DASHBOARD COVER | 53004A | 53004-3705 | 1 | ||
| MAT,DASHBOARD,RH | 53004B | 53004-3709 | 1 | ||
| MAT,DASHBOARD,LH | 53004C | 53004-3710 | 1 | ||
| MAT,DECK FIN,LH | 53004D | 53004-3714 | 1 | ||
| MAT | 53004E | 59131-502 | 1 | ||
| BUMPER | 59201 | 59201-3691 | 1 | ||
| HULL,RH,EXTENSION,JET WHITE | 59251 | 59251-3005-8C | 1 | ||
| HULL,LH,EXTENSION,JET WHITE | 59251A | 59251-3006-8C | 1 | ||
| HULL-COMP,JET WHITE | 59426 | 59426-3711-8C | 1 | ||
| COVER-JET PUMP | 59446 | 59446-3002 | 1 | ||
| SCREW,TAPPING | 92009 | 92011-561 | 9 | ||
| NUT,20MM | 92015 | 92015-3721 | 1 | ||
| NUT,INSERT,6MM | 92015A | 92015-523 | 6 | ||
| BUSHING,L=18 | 92028 | 92028-3724 | 1 | ||
| RIVET,4MM | 92039 | 92039-3703 | 3 | ||
| SEAL-OIL | 92049 | 92049-3709 | 1 | ||
| DAMPER,69X16T | 92075 | 92075-3710 | 1 | ||
| BOLT-WP,6X25 | 156 | 156R0625 | 4 |
