Parts Diagrams |

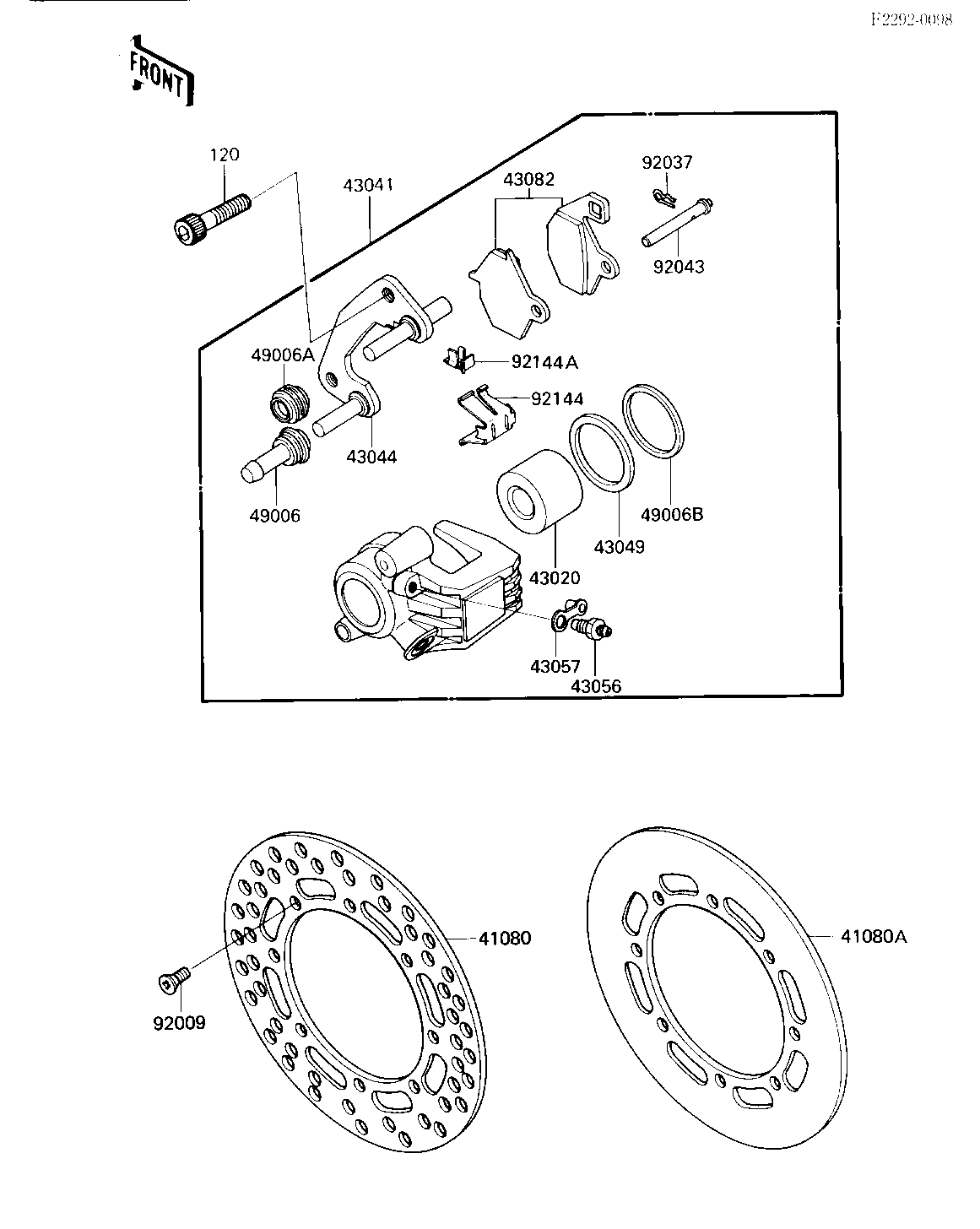

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR | 41080 | 41080-1147 | 1 | ||
| DISC,FR | 41080A | 41080-1188 | 1 | (OPTION) | |
| PISTON-COMP-BRAKE | 43020 | 43020-1097 | 1 | ||
| CALIPER-ASSY,FR | 43041 | 43041-1227 | 1 | ||
| HOLDER-COMP-CALIPER,FR | 43044 | 43044-1069 | 1 | ||
| RING-PISTON | 43049 | 43049-001 | 1 | ||
| BREEDER | 43056 | 43056-003 | 1 | ||
| CAP,BREEDER | 43057 | 43057-003 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1072 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1054 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1055 | 1 | ||
| BOOT,PISTON SEAL | 49006B | 49006-1212 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1375 | 8 | ||
| CLIP | 92037 | 43084-003 | 1 | ||
| PIN,PAD | 92043 | 92043-1356 | 1 | ||
| SPRING,PAD | 92144 | 92144-1117 | 1 | ||
| SPRING,PAD STOPPER | 92144A | 92144-1118 | 1 | ||
| BOLT-SOCKET,8X20 | 120 | 120P0820 | 2 |
| DISC,FR | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DISC,FR | |
| REF # | 41080A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,FR | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-COMP-CALIPER,FR | |
| REF # | 43044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-PISTON | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREEDER | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,BREEDER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,PISTON SEAL | |
| REF # | 49006B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLIP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,PAD | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD STOPPER | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
