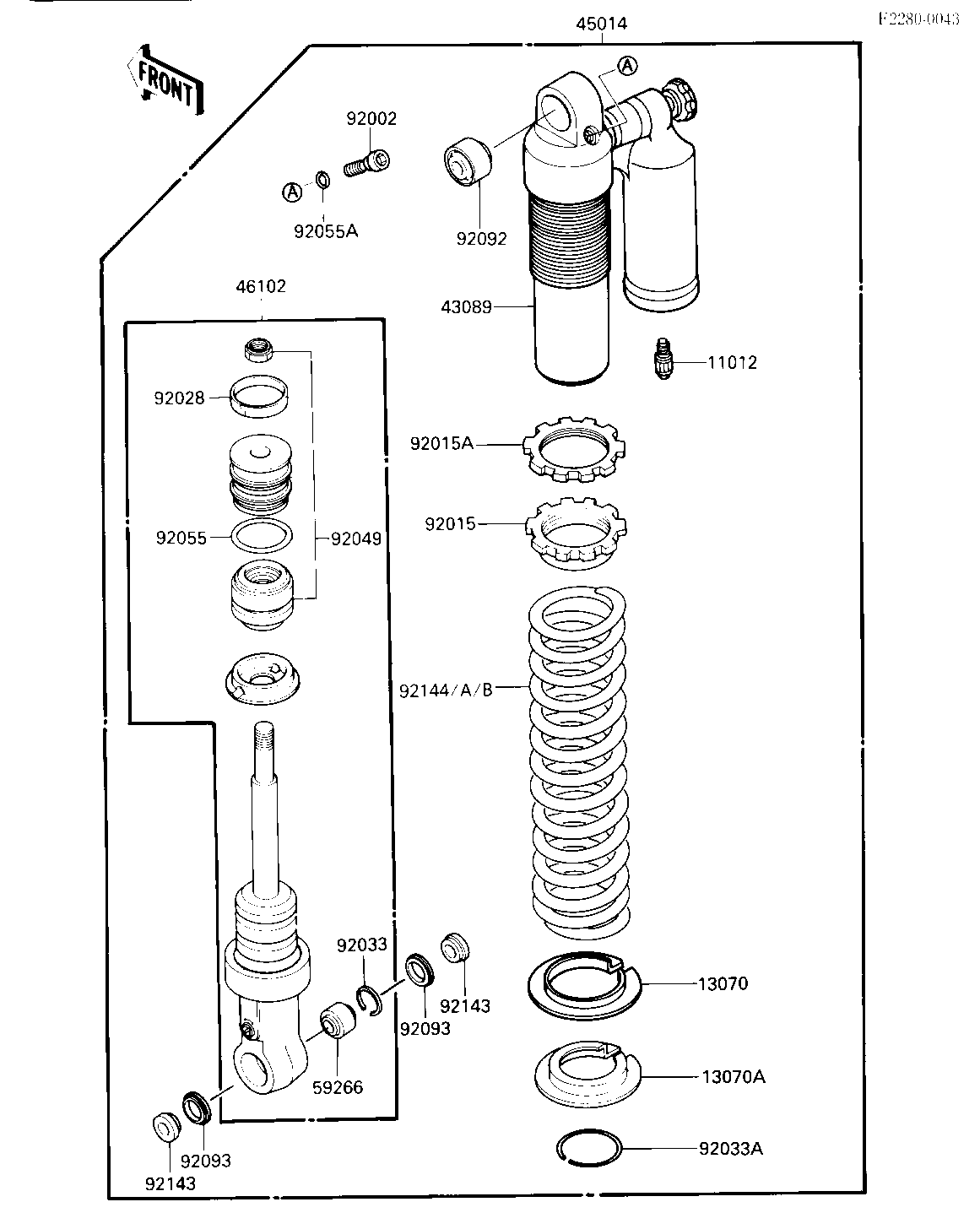

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,VALVE AIR | 11012 | 11012-1391 | 1 | ||
| GUIDE,SPRING | 13070 | 13070-1161 | 1 | ||
| GUIDE,SPRING | 13070A | 13070-1165 | 1 | ||
| CYLINDER-SHOCKABSORBE | 43089 | 43089-1119 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-1357 | 1 | ||
| ROD,SHOCKABSORBER | 46102 | 46102-1199 | 1 | ||
| JOINT-BALL,REAR SHOCK | 59266 | 59266-1053 | 1 | ||
| BOLT | 92002 | 92002-1955 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1556 | 1 | ||
| NUT,SPRING ADJUST LOC | 92015A | 92015-1557 | 1 | ||
| BUSHING,ROD | 92028 | 92028-1473 | 1 | ||
| RING-SNAP,REARSHOCK | 92033 | 92033-1090 | 1 | ||
| RING-SNAP,SHOCKABSORB | 92033A | 92033-1228 | 1 | ||
| SEAL-OIL | 92049 | 92049-1281 | 1 | ||
| RING-O,ROD | 92055 | 92055-1369 | 1 | ||
| RING-O | 92055A | 92055-1383 | 1 | ||
| BUSHING-RUBBER,SHOCKA | 92092 | 92092-1062 | 1 | ||
| SEAL,REAR SHOCK | 92093 | 92093-1183 | 2 | ||
| COLLAR,SHOCKABSORBER | 92143 | 92143-1116 | 2 | ||
| SPRING,SHOCKABSORBER, | 92144 | 92144-1089 | 1 | ||
| SPRING,SHOCKABSORBER, | 92144A | 92144-1132 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER, | 92144B | 92144-1135 | 1 | (OPTION) |
