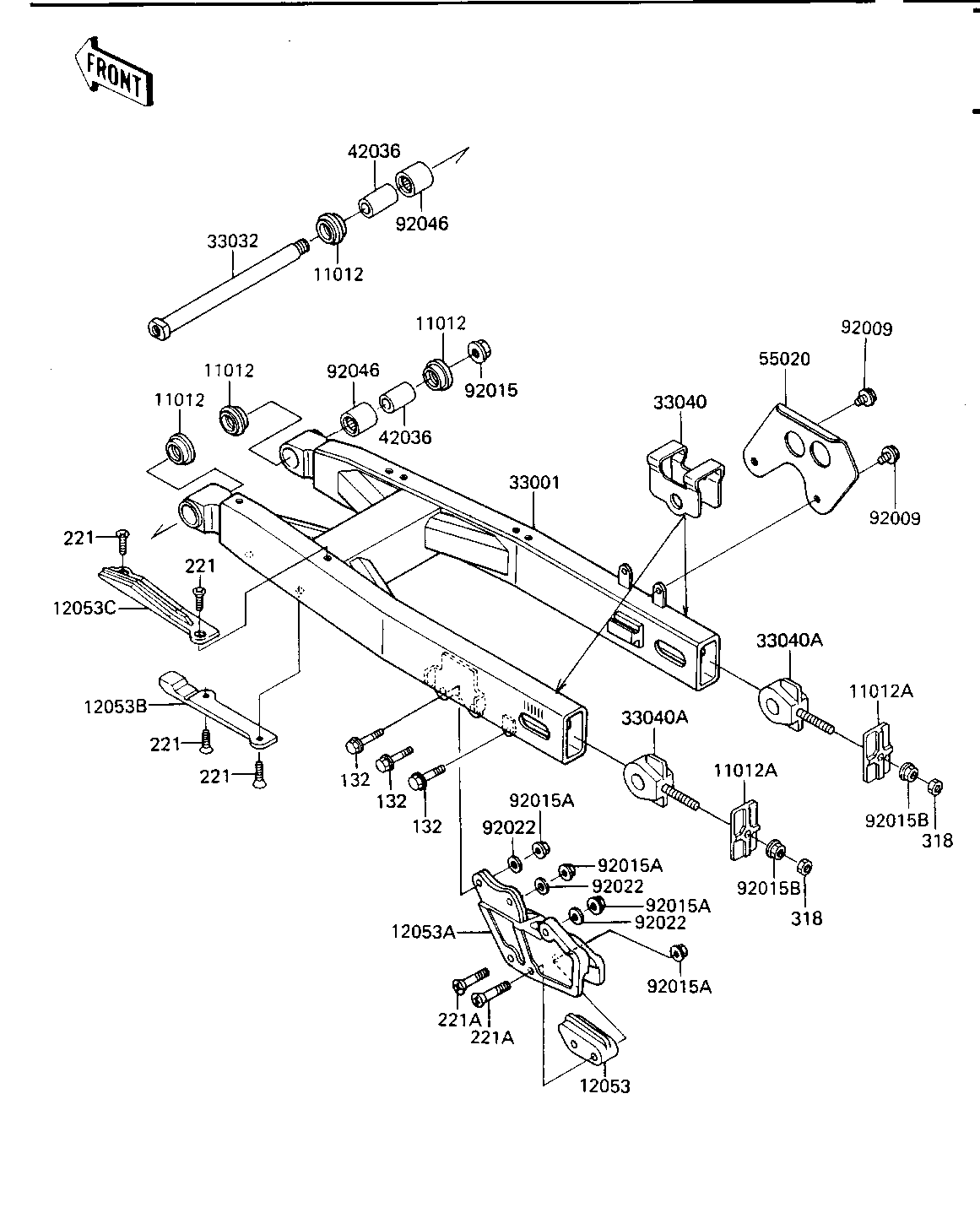

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1259 | 4 | ||
| CAP,CHAIN ADJUSTER | 11012A | 11012-1431 | 2 | ||
| GUIDE-CHAIN,RR,INSIDE | 12053 | 12053-1105 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-1179 | 1 | ||
| GUIDE-CHAIN,FR,LWR | 12053B | 12053-1208 | 1 | ||
| GUIDE-CHAIN,FR,UPP | 12053C | 12053-1213 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-1276 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1127 | 1 | ||
| ADJUSTER-CHAIN,OUTSID | 33040 | 33040-1058 | 2 | ||
| ADJUSTER-CHAIN,INSIDE | 33040A | 33040-1059 | 2 | ||
| SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
| GUARD,CALIPER | 55020 | 55020-1247 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1287 | 2 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| NUT-6MM | 92015A | 92015-1078 | 5 | ||
| NUT-8MM | 92015B | 92015-1143 | 2 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 3 | ||
| BEARING-NEEDLE,TA2030 | 92046 | 92046-1128 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 3 | ||
| SCREW CNTSNK HD 6X10 | 221 | 221B0610 | 4 | ||
| SCREW,CONTRUNK HEAD | 221A | 221B0650 | 2 | ||
| NUT 8MM | 318 | 318G0800 | 2 |
| CAP,SWING ARM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP,CHAIN ADJUSTER | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR,INSIDE | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR,LWR | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR,UPP | |
| REF # | 12053C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN,OUTSID | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN,INSIDE | |
| REF # | 33040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SWING ARM | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,CALIPER | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT-8MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,TA2030 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X10 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,CONTRUNK HEAD | |
| REF # | 221A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
