Parts Diagrams |

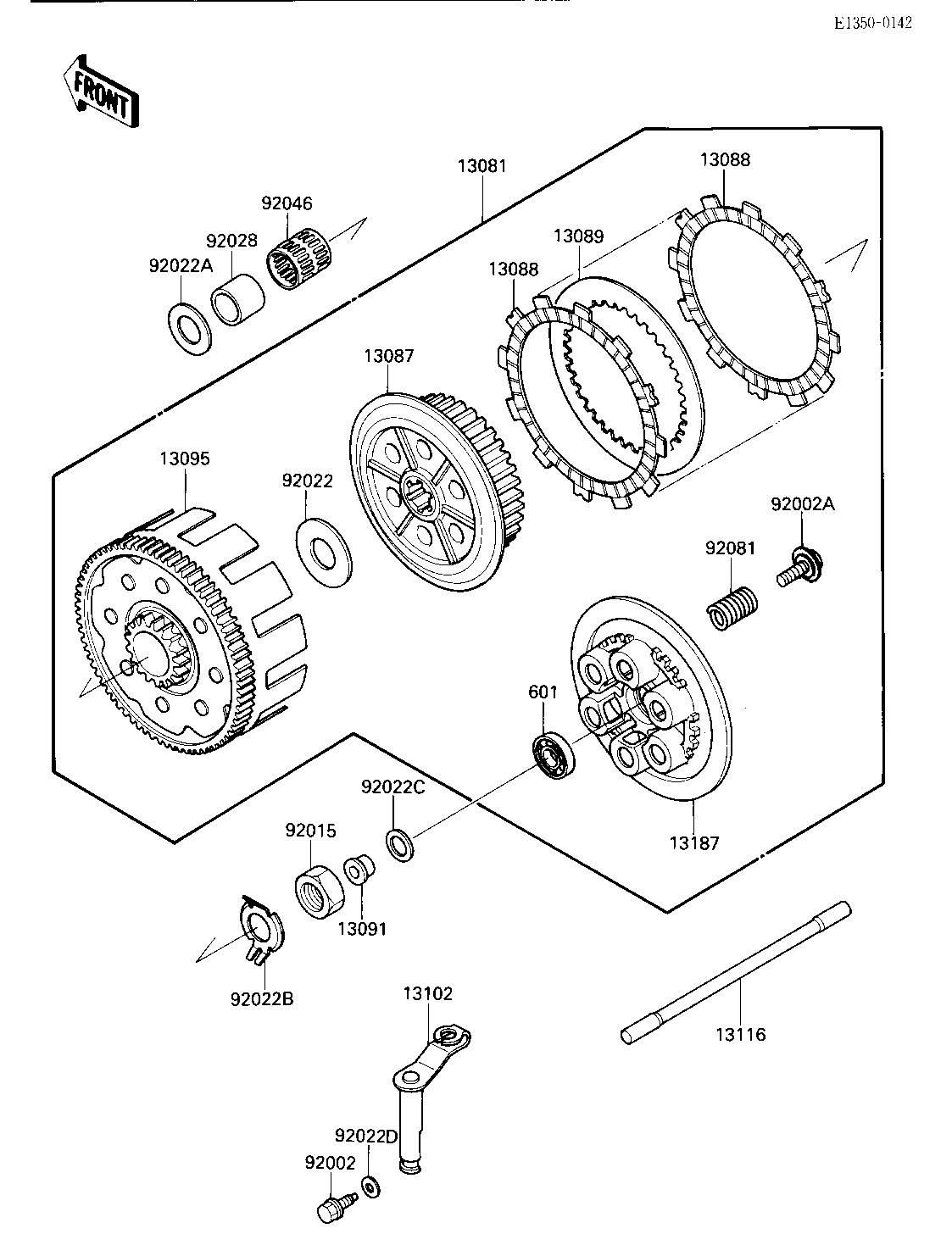

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1240 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1085 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1069 | 8 | ||
| PLATE-CLUTCH | 13089 | 13089-1074 | 7 | ||
| HOLDER,ROD | 13091 | 13091-1582 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1196 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1090 | 1 | ||
| ROD-PUSH,L=205 | 13116 | 13116-1124 | 1 | ||
| PLATE-CLUTCH OPERATIN | 13187 | 13187-1060 | 1 | ||
| BOLT | 92002 | 92002-1357 | 1 | ||
| BOLT,CLUTCH | 92002A | 92150-1489 | 6 | ||
| NUT 20MM | 92015 | 92016-028 | 1 | ||
| WASHER,22.5X46X2.6 | 92022 | 92022-1739 | 1 | ||
| WASHER,22.3X38X3.0 | 92022A | 92022-1832 | 1 | ||
| WASHER | 92022B | 92022-1835 | 1 | ||
| WASHER,PLAIN | 92022C | 92022-269 | 1 | ||
| WASHER,PLAIN | 92022D | 92022-304 | 1 | ||
| BUSHING,22X28X27.5 | 92028 | 92028-1385 | 1 | ||
| BEARING-NEEDLE,28R322 | 92046 | 92046-1149 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-139 | 6 | ||
| BEARING-BALL | 601 | 92045-1235 | 1 |
