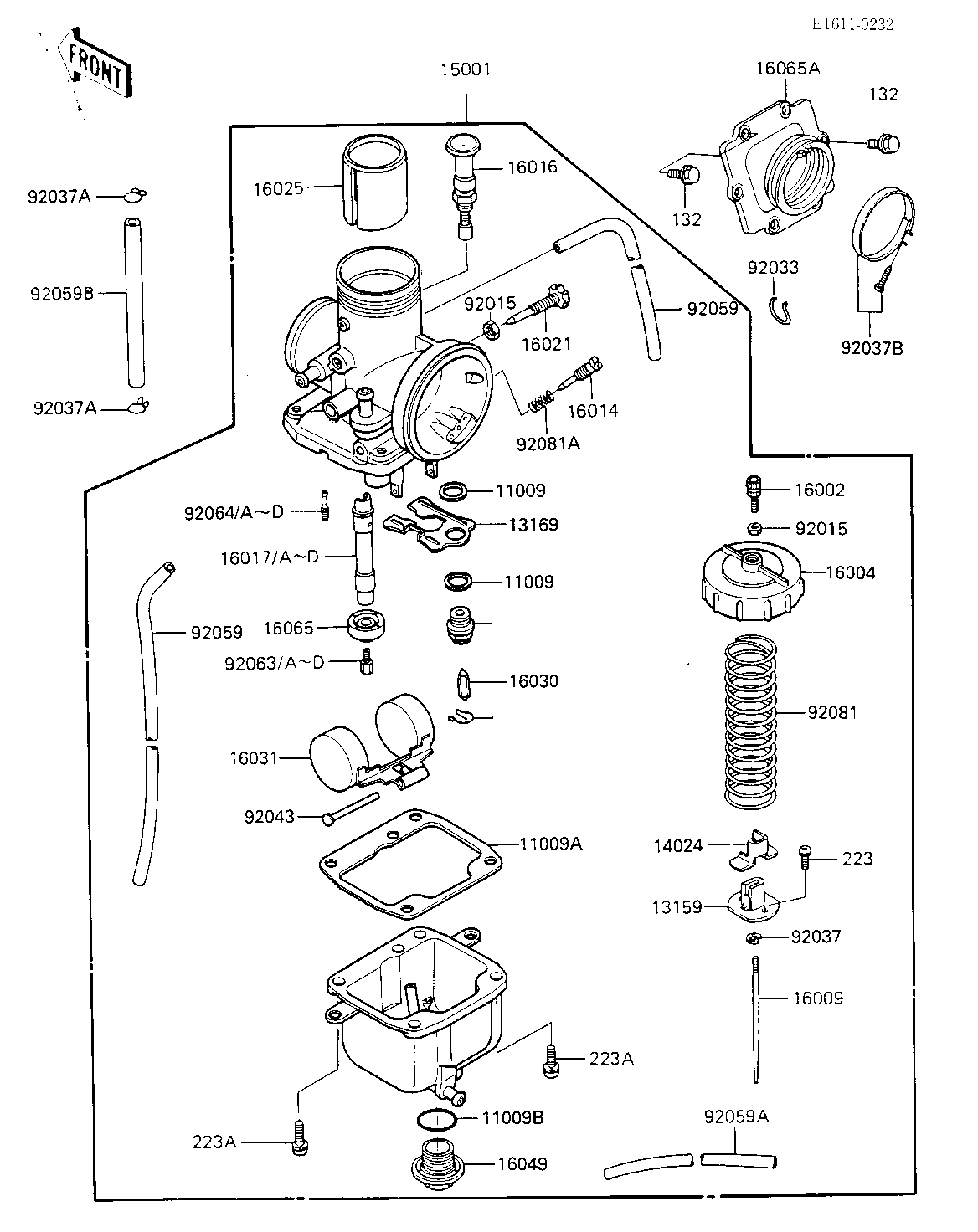

1987 KX250 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT VALVE 11009 11009-1076 2
GASKET,FLOAT CHAMBER 11009A 16019-028 1
GASKET-COVER 11009B 16038-009 1
CONNECTOR,THROTTLE 13159 13159-1010 1
PLATE,FLOAT CHAMBER 13169 13169-1520 1
COVER,THROTTLE 14024 14025-1478 1
CARBURETOR-ASSY 15001 15001-1311 1
CABLE ADJUSTER 16002 16002-011 1
CAP-MIXING CHAMBER 16004 16004-026 1
NEEDLE-JET,6FJ58 16009 16009-1338 1
SCREW 16014 16014-006 1
PLUNGER,STARTER 16016 16016-1026 1
JET-NEEDLE,R-6 16017 16017-1214 1 (OPTION)
JET-NEEDLE,R-0 16017A 16017-1235 1 (OPTION)
JET-NEEDLE,R-4 16017B 16017-1236 1 (OPTION)
JET-NEEDLE,R-2 16017C 16017-1234 1
JET-NEEDLE,Q-8 16017D 16017-1295 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1108 1
VALVE-THROTTLE,CA 3.0 16025 16025-1138 1
VALVE-FLOAT 16030 16030-1015 1
FLOAT 16031 16031-030 1
COVER,MAIN JET 16049 16049-1005 1
HOLDER-CARBURETOR 16065 16065-1040 1
HOLDER-CARBURETOR 16065A 16065-1150 1
NUT-CABLE ADJUST LOCK 92015 16003-006 2
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CLAMP,CHAIN OILER 92037A 92037-147 2
CLAMP,55MM 92037B 92037-1486 1
PIN,FLOAT 92043 16032-008 1
TUBE,3.5X6.5X410 92059 92059-1142 2
TUBE,3.5X6.5X300 92059A 92059-1233 1
TUBE 92059B 92059-1812 1
MAIN JET NO 360A 92063 92063-032 1 (OPTION)
JET-MAIN NO 370A 92063A 92063-033 1 (OPTION)
JET-MAIN NO 330A 92063B 92063-048 1 (OPTION)
MAIN JET NO 340A 92063C 92063-049 1 (OPTION)
JET-MAIN NO 350A 92063D 92063-050 1
JET-PILOT NO 35 92064 92064-023 1 (OPTION)
JET-PILOT NO 40 92064A 92064-024 1 (OPTION)
JET-PILOT NO 45 92064B 92064-044 1
PILOT JET,#50 92064C 92064-1005 1 (OPTION)
JET-PILOT,#55 92064D 92064-1006 1 (OPTION)
SPRING,THROTTLE VALVE 92081 16006-028 1
SPRING-THR STOP SCREW 92081A 16022-007 1
BOLT-FLANGED-SMALL 132 132G0620 6
SCREW-PAN-WS-CROS 223 223B0308 2
SCREW-PAN-WS-CROS 223A 223B0516 4
