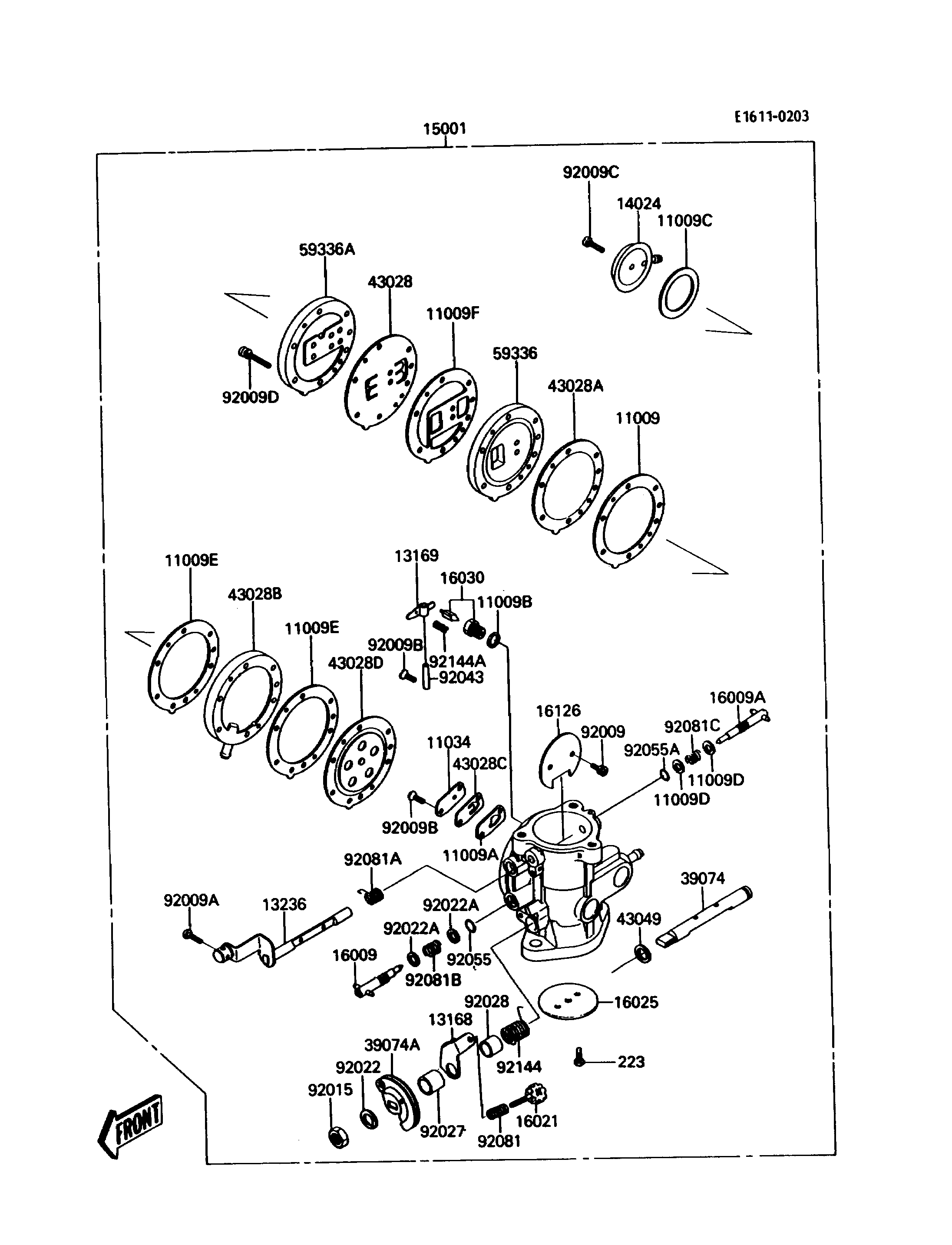

1988 JS300 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-3036 1
GASKET 11009A 11009-3734 1
GASKET,FLOAT VALVE SEAT 11009B 16029-004 1
GASKET 11009C 92065-526 1
GASKET 11009D 92065-528 2
GASKET 11009E 92065-531 2
GASKET 11009F 92065-532 1
BRACKET,CARBURETOR 11034 59086-541 1
LEVER,THROTTLE SHAFT 13168 13168-3703 1
PLATE 13169 59001-506 1
LEVER-COMP,CHOKE 13236 13236-3701 1
COVER,CARBURETOR 14024 14024-3721 1
CARBURETOR-ASSY 15001 15001-3703 1
NEEDLE-JET,PILOT SCREW 16009 16009-2092 1
NEEDLE-JET,HIGH SPEED 16009A 16009-3002 1
SCREW-THROTTLE STOP 16021 16021-3701 1
VALVE-THROTTLE,#140 16025 16025-3702 1
VALVE-FLOAT,#1.8 16030 16030-3702 1
VALVE,CHOKE 16126 16126-3701 1
LEVER-ASSY-THROTTLE,SHAFT 39074 39074-3703 1
LEVER-ASSY-THROTTLE,THROTTLE 39074A 39074-3704 1
DIAPHRAGM,PUMP,CARBURETOR 43028 43028-3001 1
DIAPHRAGM,PUMP,CARBURETOR 43028A 43028-3002 1
DIAPHRAGM,PUMP 43028B 43028-3701 1
DIAPHRAGM,CHECK SHEET 43028C 51069-501 1
DIAPHRAGM,MAIN,CARB 43028D 51069-502 1
PACKING 43049 43049-3702 1
CASE-PUMP 59336 59336-3002 1
CASE-PUMP 59336A 59336-3003 1
SCREW,CHOKE VALVE 92009 92009-3704 2
SCREW,CHOKE LEVER 92009A 92009-3705 1
SCREW 92009B 92009-3714 3
SCREW,4X12 92009C 92011-510 1
SCREW,4X30 92009D 92011-515 6
NUT,THROTTLE LEVER 92015 92015-3717 1
WASHER,THROTTLE LEVER 92022 92022-3722 1
WASHER 92022A 92022-537 2
COLLAR,THROTTLE SHAFT 92027 92027-3709 1
BUSHING,CARBURETOR 92028 92028-514 1
PIN,FLOAT 92043 16032-006 1
RING-O 92055 92055-510 1
RING-O 92055A 92055-511 1
SPRING,THROTTLE CABLE BRACKET 92081 16040-022 1
SPRING,CHOKE SHAFT 92081A 92081-3705 1
SPRING 92081B 92081-528 1
SPRING 92081C 92081-534 1
SPRING,THROTTLE SHAFT 92144 92144-3707 1
SPRING 92144A 92144-3709 1
SCREW-PAN-WS-CROS 223 223B0307 2
