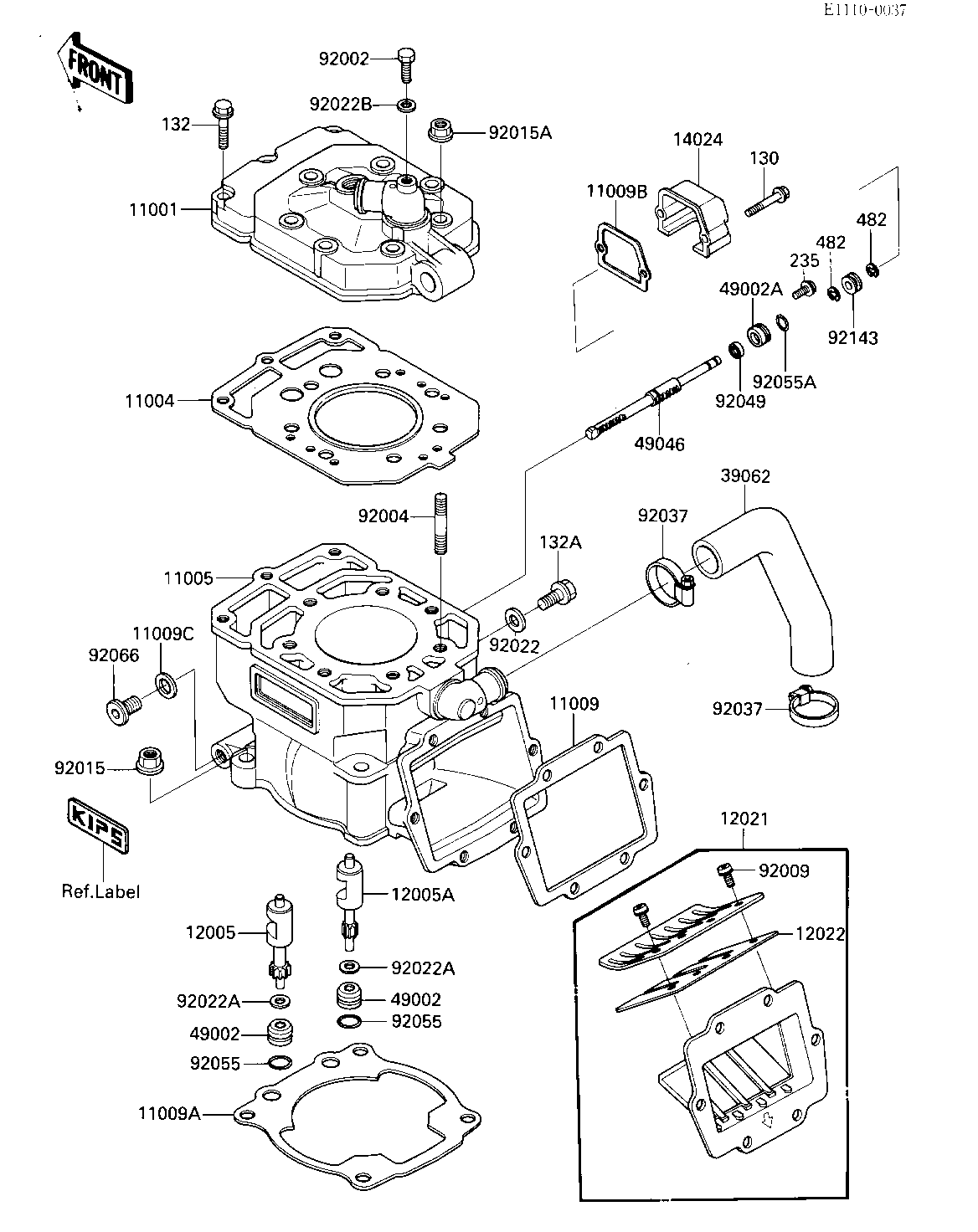

1987 KX250 - CYLINDER HEAD/CYLINDER/REED VALVE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1245 1
GASKET-HEAD 11004 11004-1157 1
CYLINDER-ENGINE 11005 11005-1509 1
GASKET,REED VALVE 11009 11009-1950 1
GASKET,CYLINDER BASE 11009A 11009-1624 1
GASKET,GOVERNOR COVER 11009B 11009-1946 1
GASKET-DRAIN PLUG 11009C 92065-073 1
VALVE-EXHAUST,LH 12005 12005-1081 1
VALVE-EXHAUST,RH 12005A 12005-1092 1
VALVE-ASSY-REED 12021 12021-1065 1
VALVE-REED 12022 12022-1056 2
COVER,GOVERNOR 14024 14024-1359 1
HOSE-COOLING 39062 39062-1105 1
GUIDE-VALVE 49002 49002-1073 2
GUIDE-VALVE 49002A 49002-1074 1
ROD-GOVERNOR 49046 49046-1058 1
BOLT,6X10 92002 92002-1222 1
STUD 92004 92004-1210 7
SCREW,3X6 92009 92009-1371 8
NUT,10MM 92015 92015-1415 4
NUT-8MM 92015A 92015-1143 7
WASHER,8.2X14X1 92022 92022-1488 1
WASHER 92022A 92022-1869 2
WASHER,PLAIN 92022B 92022-304 1
CLAMP,COOLING HOSE 92037 92037-1589 2
SEAL-OIL,RSO-5.5 11 4 92049 92049-1206 1
"0" RING 92055 92055-022 2
"O" RING 92055A 92055-061 1
PLUG,12X10 92066 92066-1222 1
COLLAR 92143 92143-1056 1
BOLT-FLANGED 130 130G0535 2
BOLT-FLANGED-SMALL 132 132G0625 3
BOLT-FLANGED-SMALL 132A 132G0810 1
SCREW-PAN-WP-CROS 235 235B0510 1
482K4000 (Canada) 482 482J4000 2
