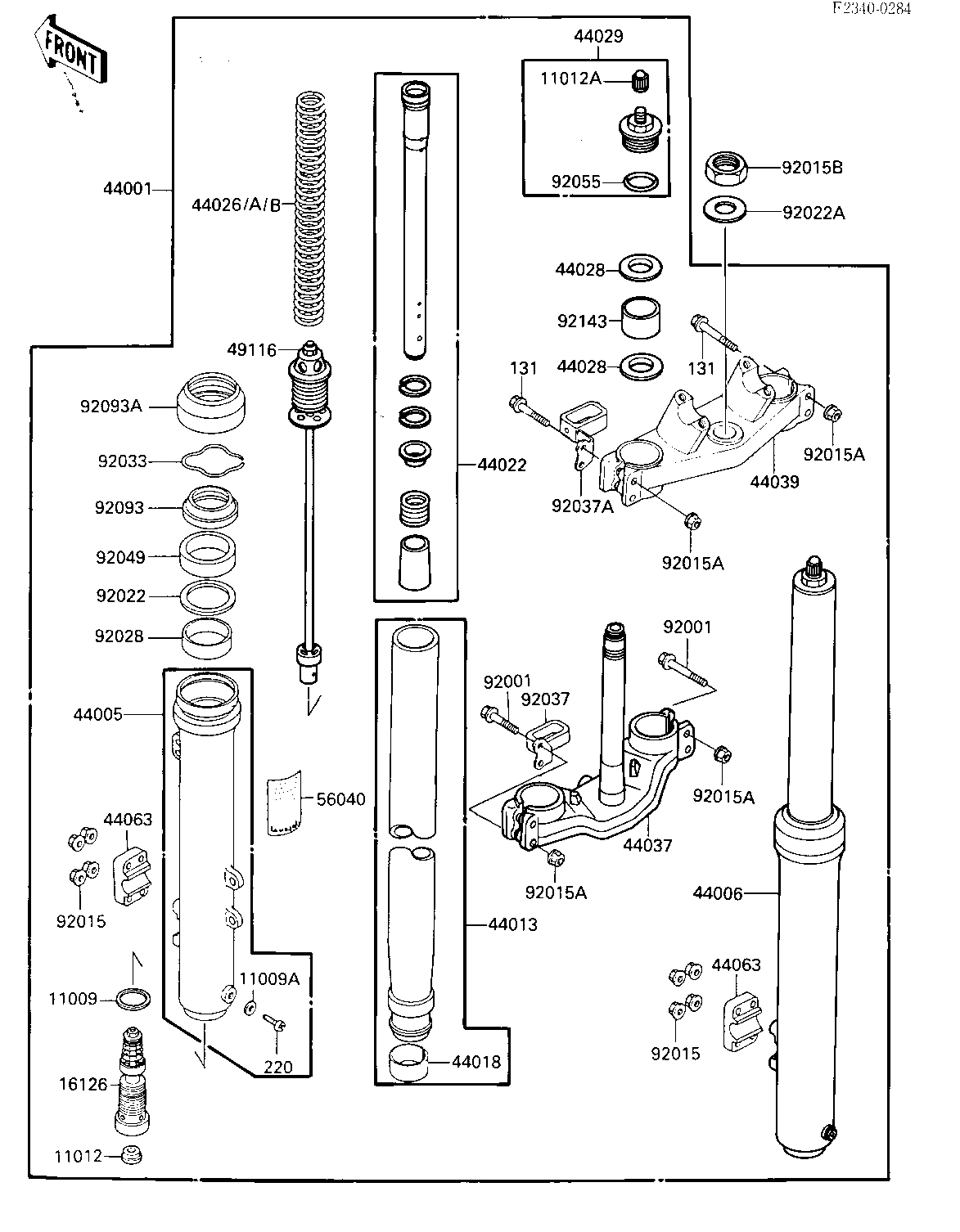

1987 KX125 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1592 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,FORK CYLINDER 11012 11012-1381 2
CAP,VALVE AIR 11012A 11012-1391 2
VALVE,FORK CYLINDER 16126 16126-1185 2
FORK-FRONT 44001 44001-1643 1
PIPE-LEFT FORK OUTER 44005 44005-1253 1
PIPE-RIGHT FORK OUTER 44006 44006-1243 1
PIPE-FORK INNER 44013 44013-1256 2
PISTON-FORK 44018 44018-1005 2
CYLINDER-FORK 44022 44022-1200 2
SPRING-FRONT FORK,K=0 44026 44026-1208 2 (OPTION)
SPRING-FRONT FORK,K=0 44026A 44026-1324 2 (OPTION)
SPRING-FRONT FORK,K=0 44026B 44026-1360 2
GUIDE-FORK SPRING 44028 44028-1010 4
SEAT-FORK SPRING 44029 44029-1107 2
HOLDER-FORK UNDER 44037 44037-1218 1
HOLDER-FORK UPPER 44039 44039-1154 1
HOLDER-FRONT AXLE 44063 44063-1008 2
VALVE-ASSY,FORK 49116 49116-1068 2
LABEL,FRONT FORK 56040 56040-1120 1
BOLT 92001 92001-1639 4
NUT-6MM 92015 92015-1078 8
NUT,FLANGED,8MM 92015A 92015-1485 8
NUT 92015B 92015-1653 1
WASHER 92022 92022-1299 2
WASHER 92022A 92022-1873 1
BUSHING 92028 92028-1145 2
RING-SNAP 92033 92033-1077 2
CLAMP 92037 92037-1627 1
CLAMP 92037A 92037-1628 1
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
RING-O 92055 92055-1123 2
SEAL,FORK DUST 92093 92093-1086 2
SEAL,FORK 92093A 92093-1184 2
COLLAR,L=55.5 92143 92143-1065 2
BOLT,FLANGED,8X50 131 130G0850 4
SCREW PAN HEAD 4X8 220 220B0408 4
