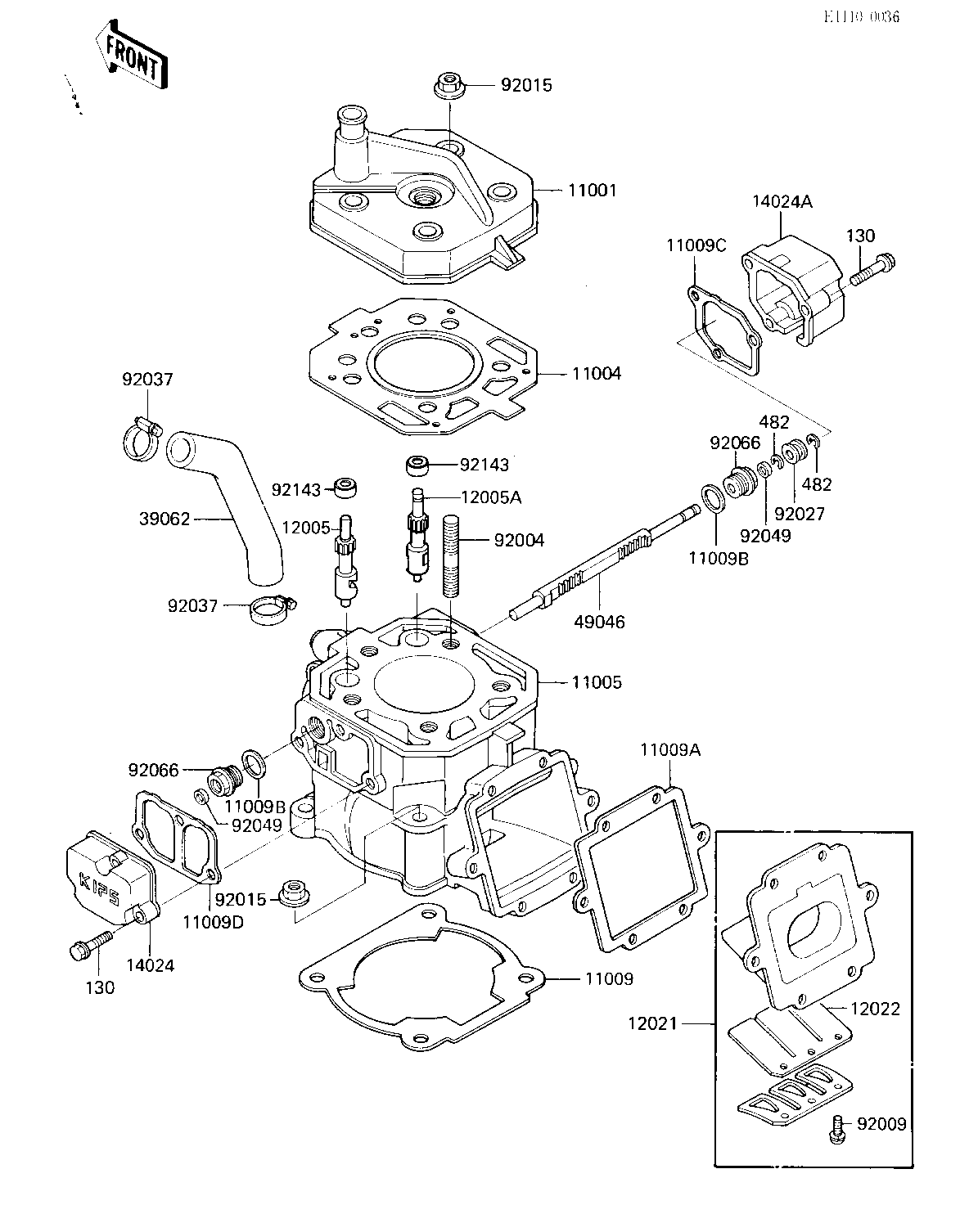

1987 KX125 - CYLINDER HEAD/CYLINDER/REED VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-CYLINDER | 11001 | 11001-1244 | 1 | ||
| GASKET-HEAD | 11004 | 11004-1160 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-1508 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1258 | 1 | ||
| GASKET,REED VALVE | 11009A | 11009-1941 | 1 | ||
| GASKET,16.2X22X1 | 11009B | 11009-1467 | 2 | ||
| GASKET,RH,GOVERNOR | 11009C | 11009-1479 | 1 | ||
| GASKET,LH,RESONATOR | 11009D | 11009-1641 | 1 | ||
| VALVE-EXHAUST,LH | 12005 | 12005-1088 | 1 | ||
| VALVE-EXHAUST,RH | 12005A | 12005-1089 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-1064 | 1 | ||
| VALVE-REED | 12022 | 12022-1057 | 2 | ||
| COVER,LH,RESONATOR | 14024 | 14024-1400 | 1 | ||
| COVER,RH,GOVERNOR | 14024A | 14024-1650 | 1 | ||
| HOSE-COOLING,PUMP-CYL | 39062 | 39062-1205 | 1 | ||
| ROD-GOVERNOR | 49046 | 49046-1059 | 1 | ||
| STUD | 92004 | 92004-1175 | 5 | ||
| SCREW,REED VALVE | 92009 | 92009-1014 | 6 | ||
| NUT-8MM | 92015 | 92015-1143 | 9 | ||
| COLLAR,GOVERNOR ROD | 92027 | 92027-1834 | 1 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 2 | ||
| SEAL-OIL,RSO-5.5 11 4 | 92049 | 92049-1206 | 2 | ||
| PLUG,ROD | 92066 | 92066-1194 | 2 | ||
| COLLAR,EXHAUST VALVE | 92143 | 92143-1074 | 2 | ||
| BOLT-FLANGED | 130 | 130G0525 | 6 | ||
| 482K4000 (Canada) | 482 | 482J4000 | 2 |
| HEAD-CYLINDER | |
| REF # | 11001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,16.2X22X1 | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,RH,GOVERNOR | |
| REF # | 11009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,LH,RESONATOR | |
| REF # | 11009D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,LH | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,RH | |
| REF # | 12005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-REED | |
| REF # | 12022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,LH,RESONATOR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RH,GOVERNOR | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PUMP-CYL | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-GOVERNOR | |
| REF # | 49046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,REED VALVE | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT-8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| COLLAR,GOVERNOR ROD | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RSO-5.5 11 4 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,ROD | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST VALVE | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| 482K4000 (Canada) | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
