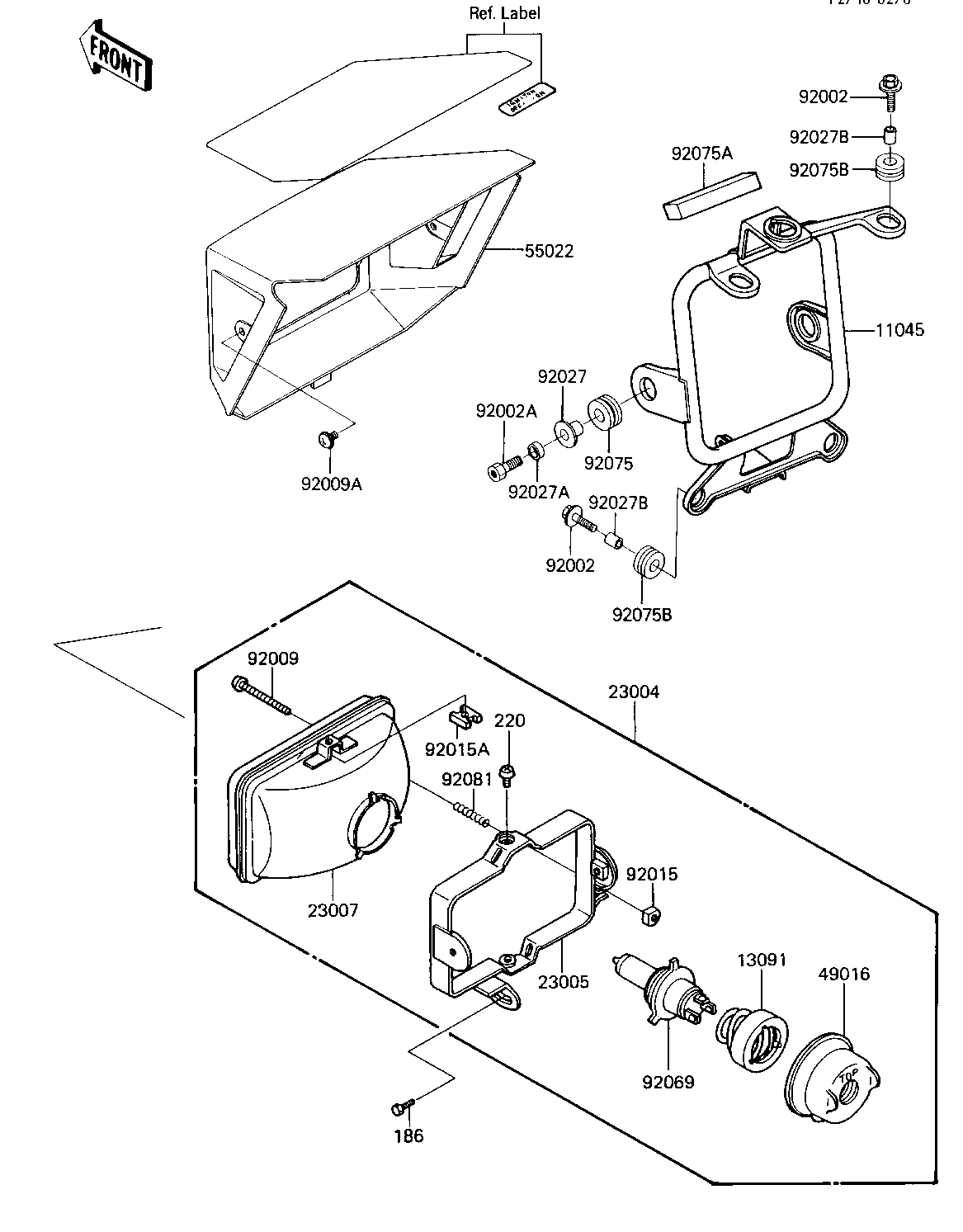

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP | 11045 | 11045-1386 | 1 | ||
| HOLDER,SOCKET | 13091 | 13091-1558 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1251 | 1 | ||
| BODY-COMP-HEAD LAMP | 23005 | 23005-1052 | 1 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1174 | 1 | ||
| COVER-SEAL,SOCKET | 49016 | 49016-1037 | 1 | ||
| COVER-HEAD | 55022 | 55022-1053-6W | 1 | ||
| BOLT,6X25 | 92002 | 92002-1137 | 4 | ||
| BOLT | 92002A | 92002-1754 | 2 | ||
| SCREW,FOCUS ADJUSTING | 92009 | 92009-1065 | 1 | ||
| SCREW,6X8 | 92009A | 92009-1294 | 2 | ||
| NUT,4MM | 92015 | 23020-018 | 1 | ||
| NUT,5MM | 92015A | 92015-1354 | 2 | ||
| COLLAR,FUEL TANK FITT | 92027 | 92027-1134 | 2 | ||
| COLLAR,8.2X13X6 | 92027A | 92027-1565 | 2 | ||
| COLLAR,REAR FENDER | 92027B | 92027-162 | 4 | ||
| BULB,12V-60/55W | 92069 | 92069-1002 | 1 | ||
| DAMPER | 92075 | 92160-1007 | 2 | ||
| DAMPER | 92075A | 92075-1899 | 1 | ||
| DAMPER | 92075B | 92075-1901 | 4 | ||
| SPRING FOCUS ADJUST | 92081 | 23014-005 | 1 | ||
| BOLT | 186 | 186B0614 | 1 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 2 |
