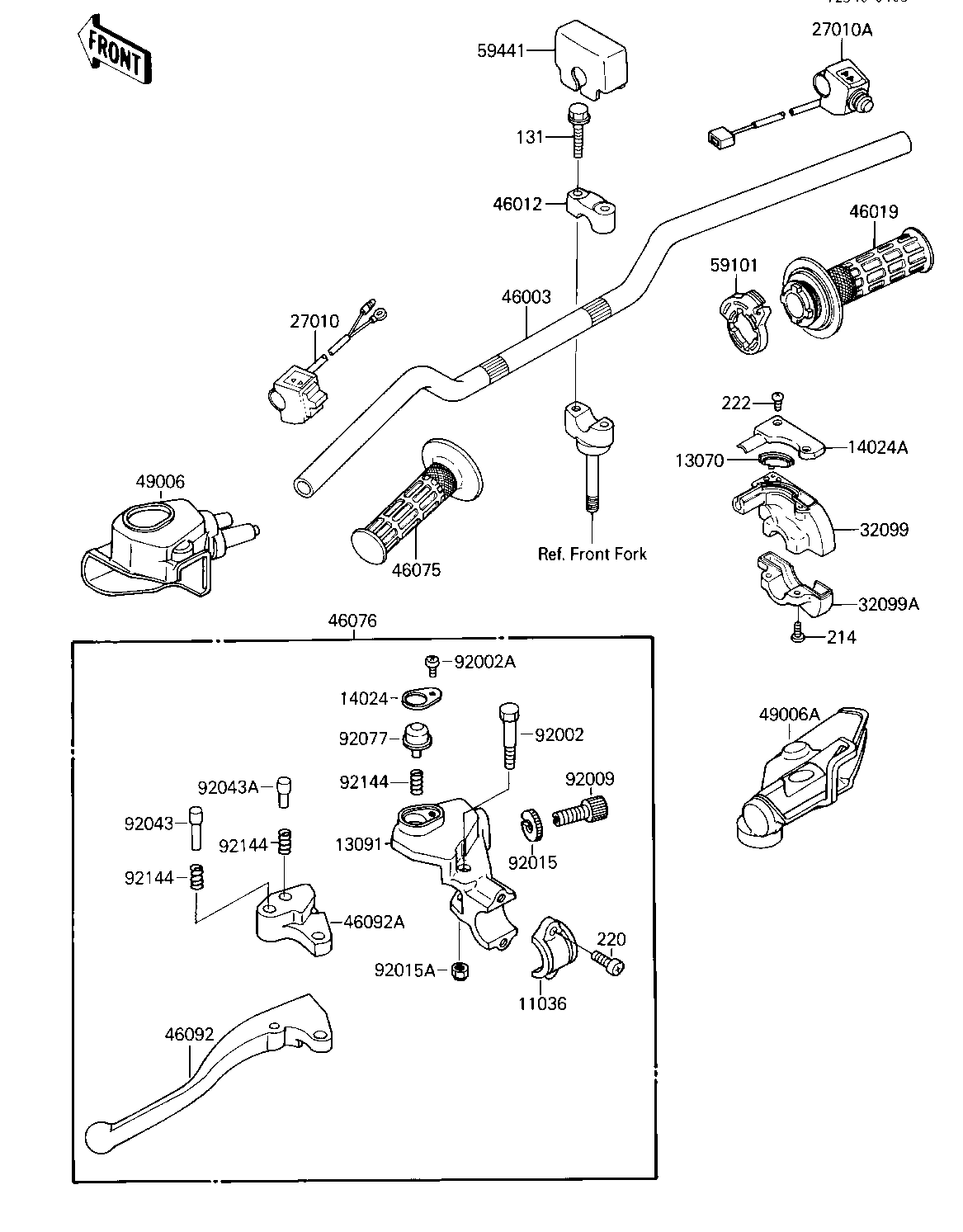

1987 Tecate - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A 11036 11036-1297 1
GUIDE,THROTTLE 13070 13070-1074 1
HOLDER 13091 13091-1456 1
COVER 14024 14024-1351 1
COVER,THROTTLE CASE U 14024A 14025-1646 1
SWITCH,ENGINE STOP 27010 27010-1194 1
SWITCH,LIGHITING 27010A 27010-1195 1
CASE,THROTTLE UPP 32099 32099-1036 1
CASE,THROTTLE LWR 32099A 32099-1044 1
HANDLE-BAR 46003 46003-1245 1
HOLDER-HANDLE,UPP 46012 46012-1119 2
GRIP-ASSY, THROTTLE 46019 46019-1054 1
GRIP,LH 46075 46075-1024 1
LEVER-ASSY-GRIP,LH 46076 46076-1137 1
LEVER-GRIP,CLUTCH 46092 46092-1137 1
LEVER-GRIP,PARKING 46092A 46092-1138 1
BOOT 49006 49006-1197 1
BOOT 49006A 49006-1198 1
REEL,THROTTLE 59101 59101-1110 1
COVER-HANDLE 59441 59441-1075 2
BOLT,LEVER SET 92002 92002-1833 1
BOLT,TAPPING 92002A 92002-1834 1
SCREW,CABLE ADJUST 92009 46055-009 1
NUT,CABLE ADJUST LOCK 92015 46056-006 1
NUT 92015A 92019-008 1
PIN 92043 92043-1341 1
PIN 92043A 92043-1342 1
KNOB,PARKING LEVER 92077 92077-1076 1
SPRING 92144 92144-1058 3
BOLT-FLANGED,8X30 131 131G0830 4
SCREW-PAN-CROS,5X18 214 220C0518 2
SCREW-PAN-CROSS,5X14 220 220C0514 2
SCREW OVL CNTSNK 4X12 222 222E0412 2
