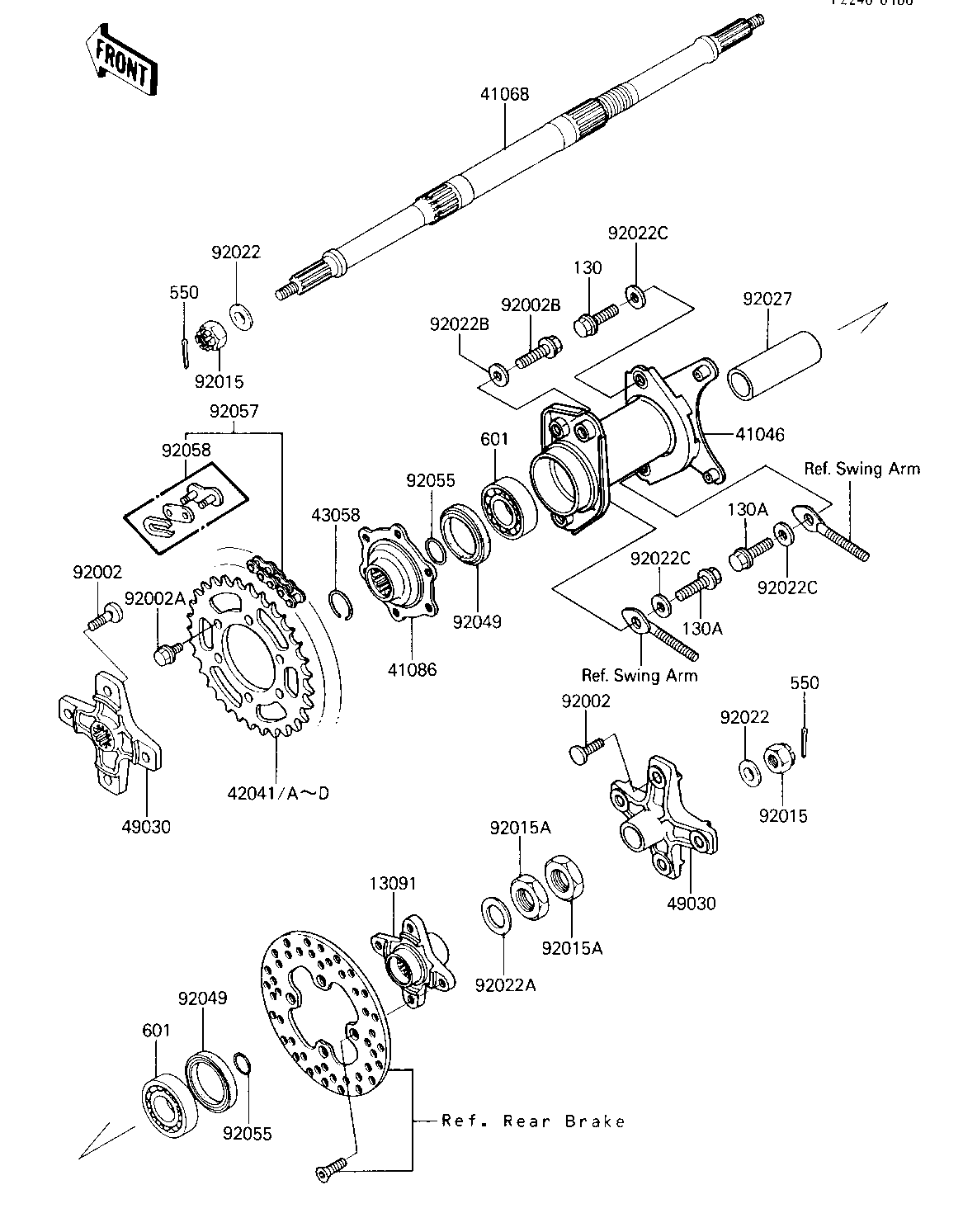

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,DISC PLATE | 13091 | 13091-1470 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1079 | 1 | ||
| AXLE,RR | 41068 | 41068-1216 | 1 | ||
| FLANGE,REAR SPROCKET | 41086 | 41086-1063 | 1 | ||
| SPROCKET-HUB | 42041 | 42041-1236 | 1 | (OPTION) | |
| SPROCKET-HUB | 42041A | 42041-1237 | 1 | (OPTION) | |
| SPROCKET-HUB | 42041B | 42041-1238 | 1 | ||
| SPROCKET-HUB | 42041C | 42041-1239 | 1 | (OPTION) | |
| SPROCKET-HUB | 42041D | 42041-1240 | 1 | (OPTION) | |
| RING,SNAP | 43058 | 43058-1060 | 1 | ||
| HUB,RR | 49030 | 49030-1078 | 2 | ||
| BOLT,10X30 | 92002 | 92002-1388 | 8 | ||
| BOLT,FLANGED,8X16 | 92002A | 92002-1645 | 6 | ||
| BOLT | 92002B | 92002-1714 | 1 | ||
| NUT CASTLE,18MM | 92015 | 42045-018 | 2 | ||
| NUT,LOCK,37MM | 92015A | 92015-1545 | 2 | ||
| WASHER,18.3X34X4.5 | 92022 | 92022-1658 | 2 | ||
| WASHER,37.5X48X2.3 | 92022A | 92022-1746 | 1 | ||
| WASHER | 92022B | 92022-1806 | 1 | ||
| WASHER,12.5X28X4.5 | 92022C | 92022-4037 | 4 | ||
| COLLAR,40.2X45.4X129 | 92027 | 92027-1953 | 1 | ||
| SEAL-OIL | 92049 | 92049-1237 | 2 | ||
| RING-O,38MM | 92055 | 92055-1317 | 2 | ||
| DR CHAIN,EK520SH-0X94 | 92057 | 92057-1203 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-1055 | 1 | ||
| BOLT-FLANGED | 130 | 130P1230 | 2 | ||
| BOLT-FLANGED | 130A | 130P1235 | 2 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 2 | ||
| BEARING | 601 | 601A6008UU | 2 |
| HOLDER,DISC PLATE | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-BEARING | |
| REF # | 41046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLANGE,REAR SPROCKET | |
| REF # | 41086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB | |
| REF # | 42041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB | |
| REF # | 42041B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB | |
| REF # | 42041C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB | |
| REF # | 42041D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| RING,SNAP | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,RR | |
| REF # | 49030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X16 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,37MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X34X4.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,37.5X48X2.3 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.5X28X4.5 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,40.2X45.4X129 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,38MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DR CHAIN,EK520SH-0X94 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN,DRIVE | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
