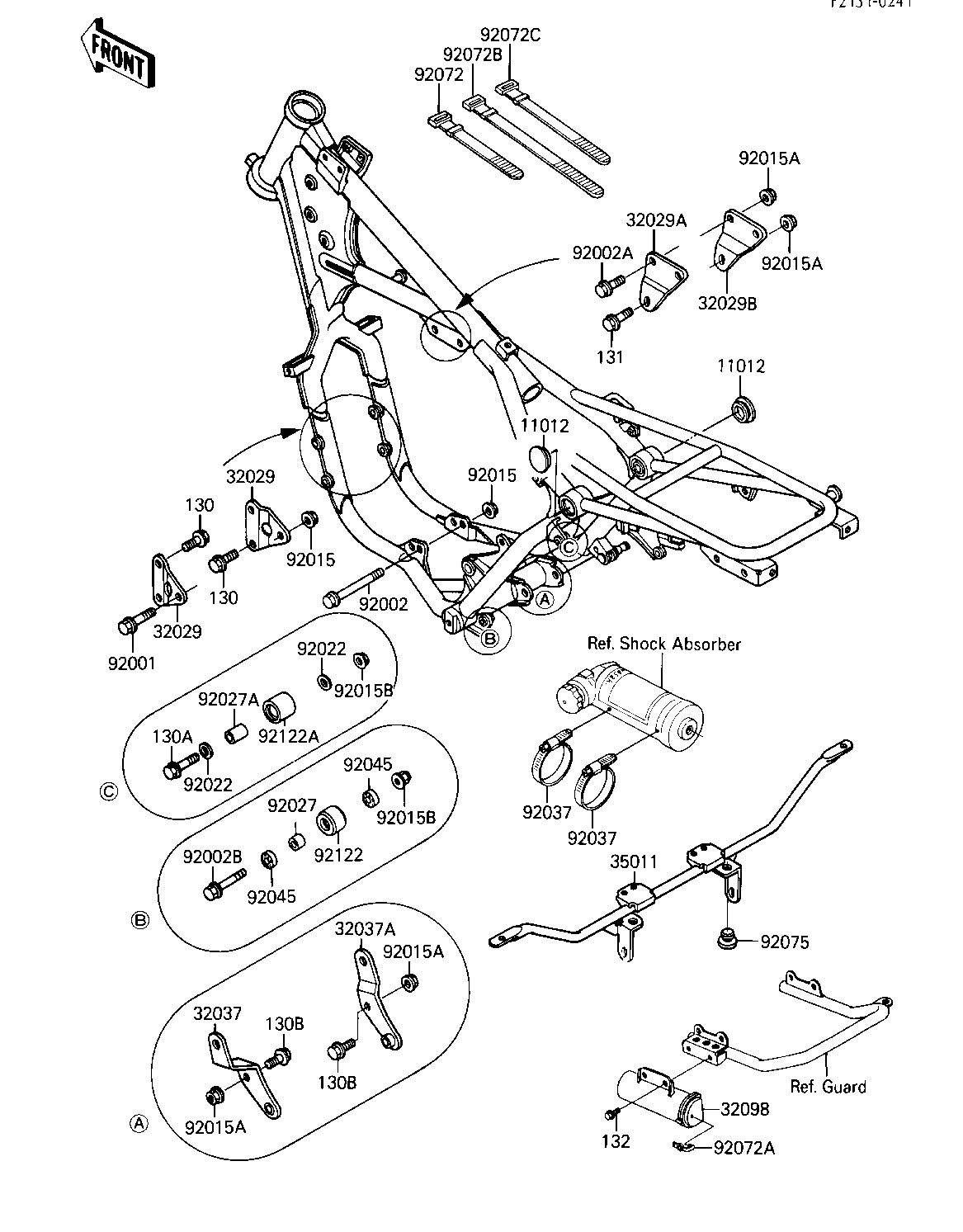

1987 Tecate - FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,UNI TRAK 11012 11012-1211 2
BRACKET-ENGINE,FR 32029 32029-1438 2
BRACKET-ENGINE,LH 32029A 32029-1439 1
BRACKET-ENGINE,RH 32029B 32029-1488 1
BRACKET-SHOCKABSORBER 32037 32037-1378 1
BRACKET-SHOCKABSORBER 32037A 32037-1379 1
CASE-TOOL 32098 32098-1016 1
STAY,RR 35011 35011-1295 1
BOLT,FLANGED,8X75 92001 92002-1481 1
BOLT 92002 92002-1543 1
BOLT 92002A 92002-1544 2
BOLT 92002B 92002-1857 1
NUT-8MM 92015 92015-1143 2
NUT,10MM 92015A 92015-1415 5
NUT,8MM 92015B 92015-1432 2
WASHER,8.5X22X1.5 92022 92022-1629 2
COLLAR 92027 92027-1081 1
COLLAR,CHAIN ROLLER 92027A 92027-1670 1
CLAMP 92037 92037-509 2
BEARING,BALL 92045 92045-1009 2
BAND,SHORT 92072 92072-030 5
BAND,TOOL CASE 92072A 92072-1060 1
BAND,L-444.5 92072B 92072-1211 1
BAND 92072C 92072-3505 1
DAMPER RUBBER 92075 92075-281 2
ROLLER,CHAIN GUIDE 92122 92122-1102 1
ROLLER,CHAIN GUIDE 92122A 92122-1117 1
BOLT-FLANGED,8X25 130 130G0825 4
BOLT,FLANGED,8X55 130A 130G0855 1
BOLT-FLANGED,10X20 130B 130P1020 2
BOLT-FLANGED,10X55 131 131G1055 1
BOLT-FLANGED-SMALL 132 132G0816 2
