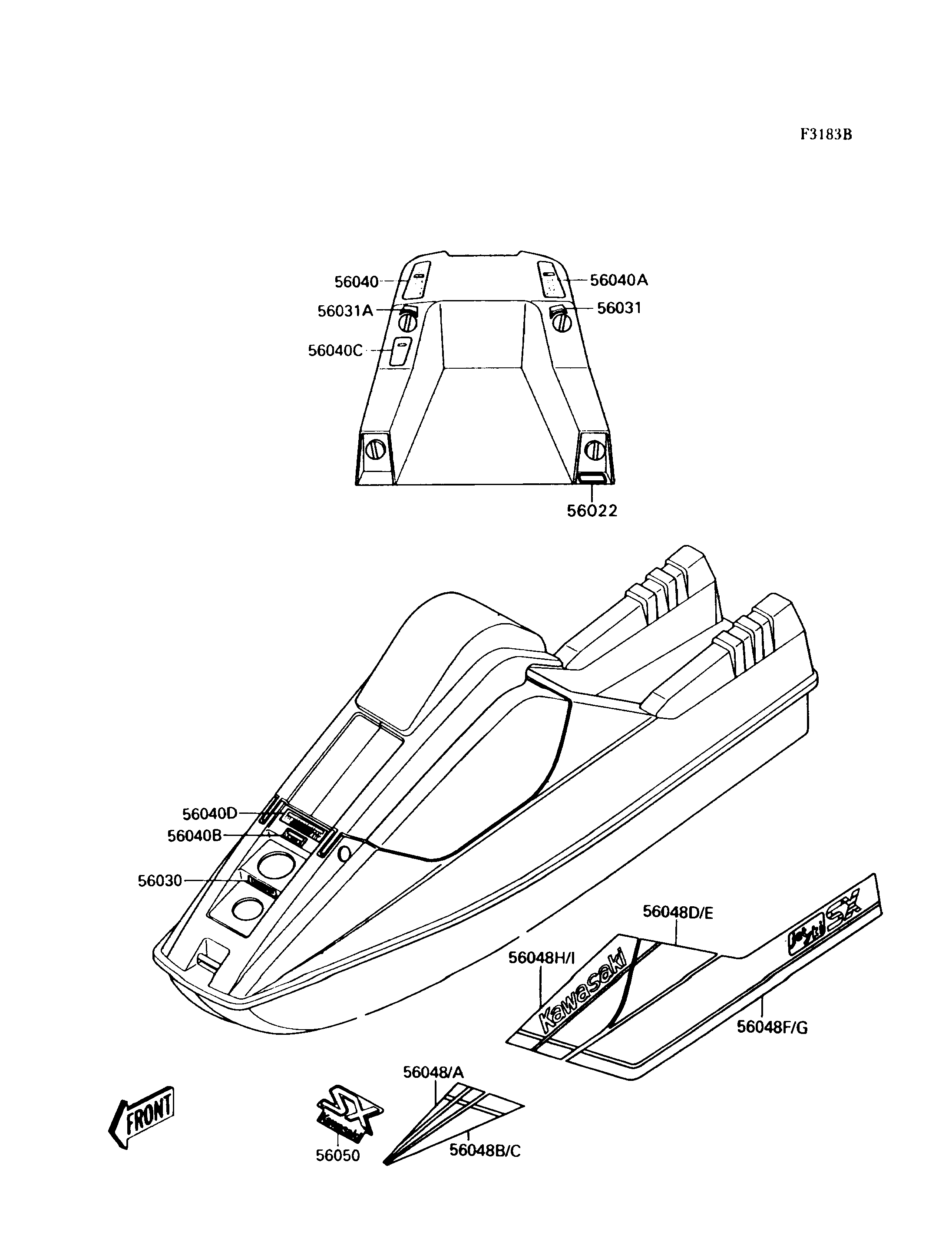

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56022 | 56022-506 | 1 | ||
| LABEL,OIL | 56030 | 56030-3721 | 1 | ||
| LABEL-MANUAL,FUEL | 56031 | 56031-3701 | 1 | ||
| LABEL-MANUAL,CHOKE | 56031A | 56031-3702 | 1 | ||
| LABEL-WARNING,SAFETY | 56040 | 56040-3707 | 1 | ||
| LABEL-WARNING,SAFETY | 56040A | 56040-3708 | 1 | ||
| LABEL-WARNING,FUEL | 56040B | 56040-3712 | 1 | ||
| LABEL-WARNING,MAINTENANCE | 56040C | 56040-3722 | 1 | ||
| LABEL-WARNING,BREAK-IN | 56040D | 56040-3738 | 1 | ||
| PATTERN,HULL,LH,FR,UPP | 56048 | 56048-1605 | 1 | ||
| PATTERN,HULL,RH,FR,UPP | 56048A | 56048-1606 | 1 | ||
| PATTERN,HULL,LH,FR,LWR | 56048B | 56048-1607 | 1 | ||
| PATTERN,HULL,RH,FR,LWR | 56048C | 56048-1608 | 1 | ||
| PATTERN,HULL,LH,RR,UPP | 56048D | 56048-1609 | 1 | ||
| PATTERN,HULL,RH,RR,UPP | 56048E | 56048-1610 | 1 | ||
| PATTERN,HULL,LH,RR,LWR | 56048F | 56048-1611 | 1 | ||
| PATTERN,HULL,RH,RR,LWR | 56048G | 56048-1612 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56048H | 56048-1613 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56048I | 56048-1614 | 1 | ||
| MARK,SX/KAWASAKI | 56050 | 56050-1211 | 1 |
