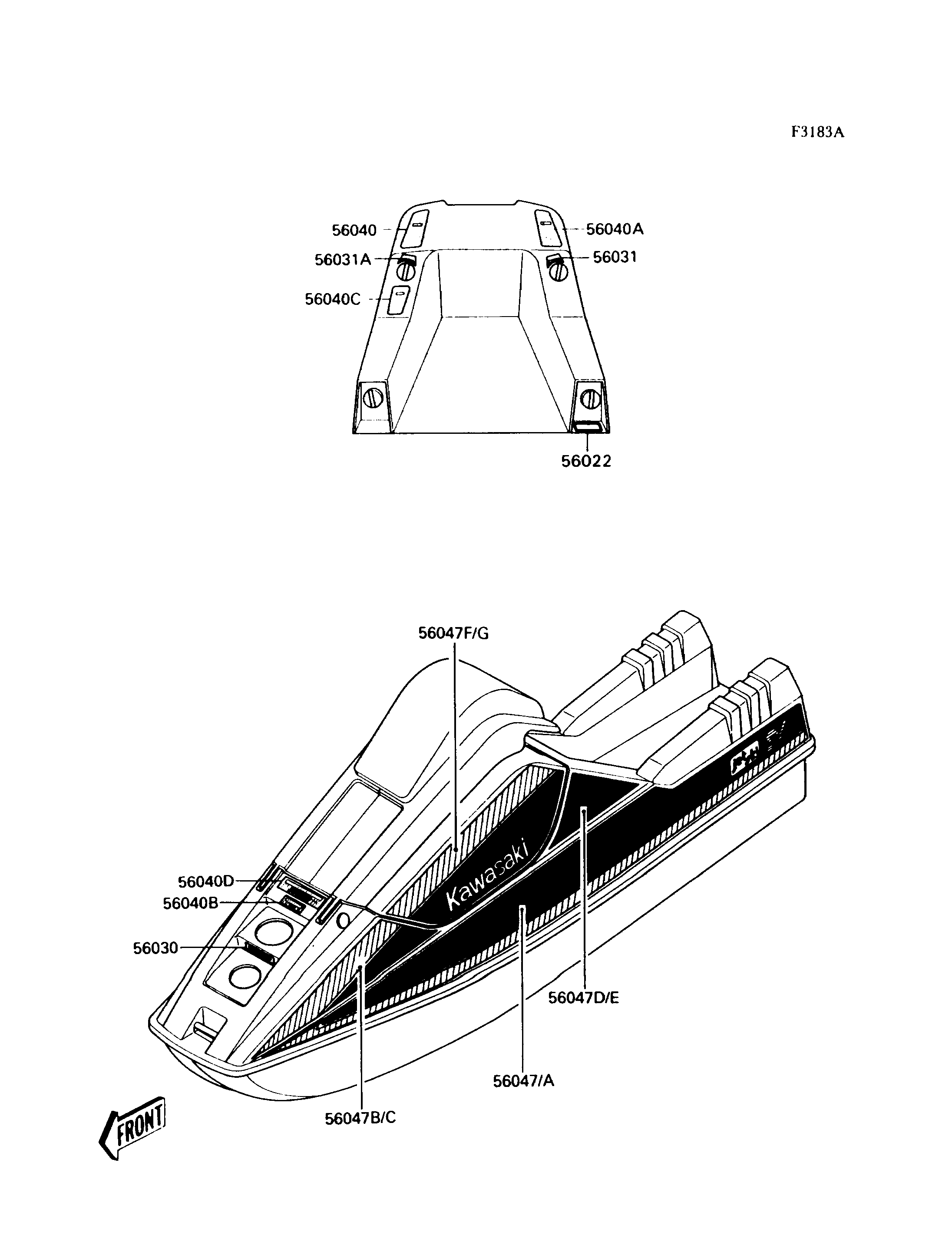

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56022 | 56022-506 | 1 | ||
| LABEL,OIL | 56030 | 56030-3721 | 1 | ||
| LABEL-MANUAL,FUEL | 56031 | 56031-3701 | 1 | ||
| LABEL-MANUAL,CHOKE | 56031A | 56031-3702 | 1 | ||
| LABEL-WARNING,SAFETY | 56040 | 56040-3707 | 1 | ||
| LABEL-WARNING,SAFETY | 56040A | 56040-3708 | 1 | ||
| LABEL-WARNING,FUEL | 56040B | 56040-3712 | 1 | ||
| LABEL-WARNING,MAINTENANCE | 56040C | 56040-3722 | 1 | ||
| LABEL-WARNING,BREAK-IN | 56040D | 56040-3738 | 1 | ||
| PATTERN,HULL,BOTTOM,LH | 56047 | 56047-1855 | 1 | ||
| PATTERN,HULL,BOTTOM,RH | 56047A | 56047-1856 | 1 | ||
| PATTERN,HULL,FRONT,LH | 56047B | 56047-1857 | 1 | ||
| PATTERN,HULL,FRONT,RH | 56047C | 56047-1858 | 1 | ||
| PATTERN,HULL,REAR,LH | 56047D | 56047-1859 | 1 | ||
| PATTERN,HULL,REAR,RH | 56047E | 56047-1860 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56047F | 56047-1861 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56047G | 56047-1862 | 1 |
| LABEL,FIRE EXTINGUISHER | |
| REF # | 56022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,OIL | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,FUEL | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,CHOKE | |
| REF # | 56031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SAFETY | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SAFETY | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,FUEL | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAINTENANCE | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BREAK-IN | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,BOTTOM,LH | |
| REF # | 56047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,BOTTOM,RH | |
| REF # | 56047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,FRONT,LH | |
| REF # | 56047B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,FRONT,RH | |
| REF # | 56047C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,REAR,LH | |
| REF # | 56047D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,REAR,RH | |
| REF # | 56047E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,LH | |
| REF # | 56047F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RH | |
| REF # | 56047G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
