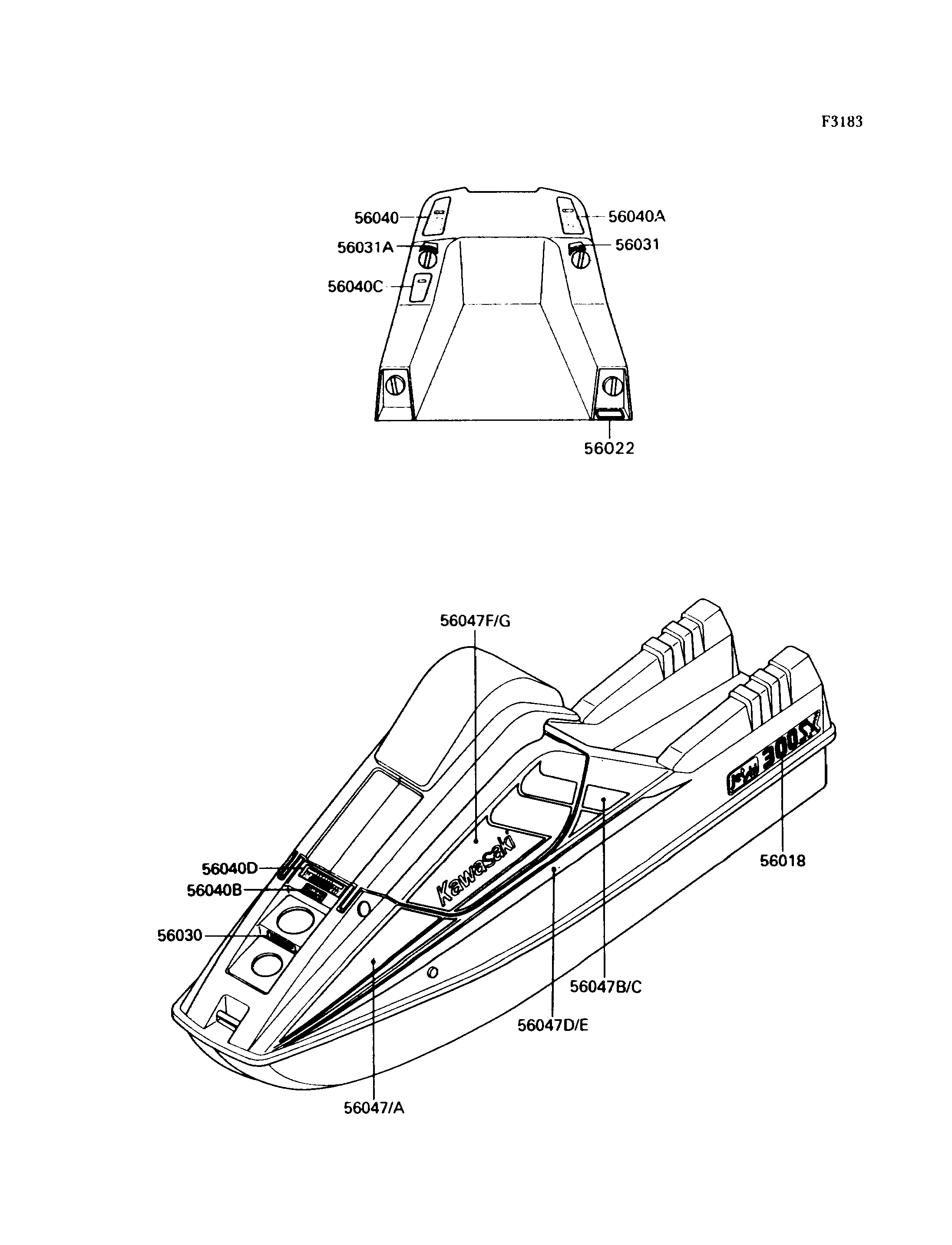

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,JET SKI 300SX | 56018 | 56018-1905 | 2 | ||
| LABEL,FIRE EXTINGUISHER | 56022 | 56022-506 | 1 | ||
| LABEL,OIL | 56030 | 56030-3721 | 1 | ||
| LABEL-MANUAL,FUEL | 56031 | 56031-3701 | 1 | ||
| LABEL-MANUAL,CHOKE | 56031A | 56031-3702 | 1 | ||
| LABEL-WARNING,SAFETY | 56040 | 56040-3707 | 1 | ||
| LABEL-WARNING,SAFETY | 56040A | 56040-3708 | 1 | ||
| LABEL-WARNING,FUEL | 56040B | 56040-3712 | 1 | ||
| LABEL-WARNING,MAINTENANCE | 56040C | 56040-3722 | 1 | ||
| LABEL-WARNING,BREAK-IN | 56040D | 56040-3738 | 1 | ||
| PATTERN,HULL-COMP,FR,LH | 56047 | 56047-1171 | 1 | ||
| PATTERN,HULL-COMP,FR,RH | 56047A | 56047-1172 | 1 | ||
| PATTERN,HULL-COMP,RR,LH | 56047B | 56047-1173 | 1 | ||
| PATTERN,HULL-COMP,RR,RH | 56047C | 56047-1174 | 1 | ||
| PATTERN,HULL-COMP,LWR,LH | 56047D | 56047-1175 | 1 | ||
| PATTERN,HULL-COMP,LWR,RH | 56047E | 56047-1176 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56047F | 56047-1177 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56047G | 56047-1178 | 1 |
