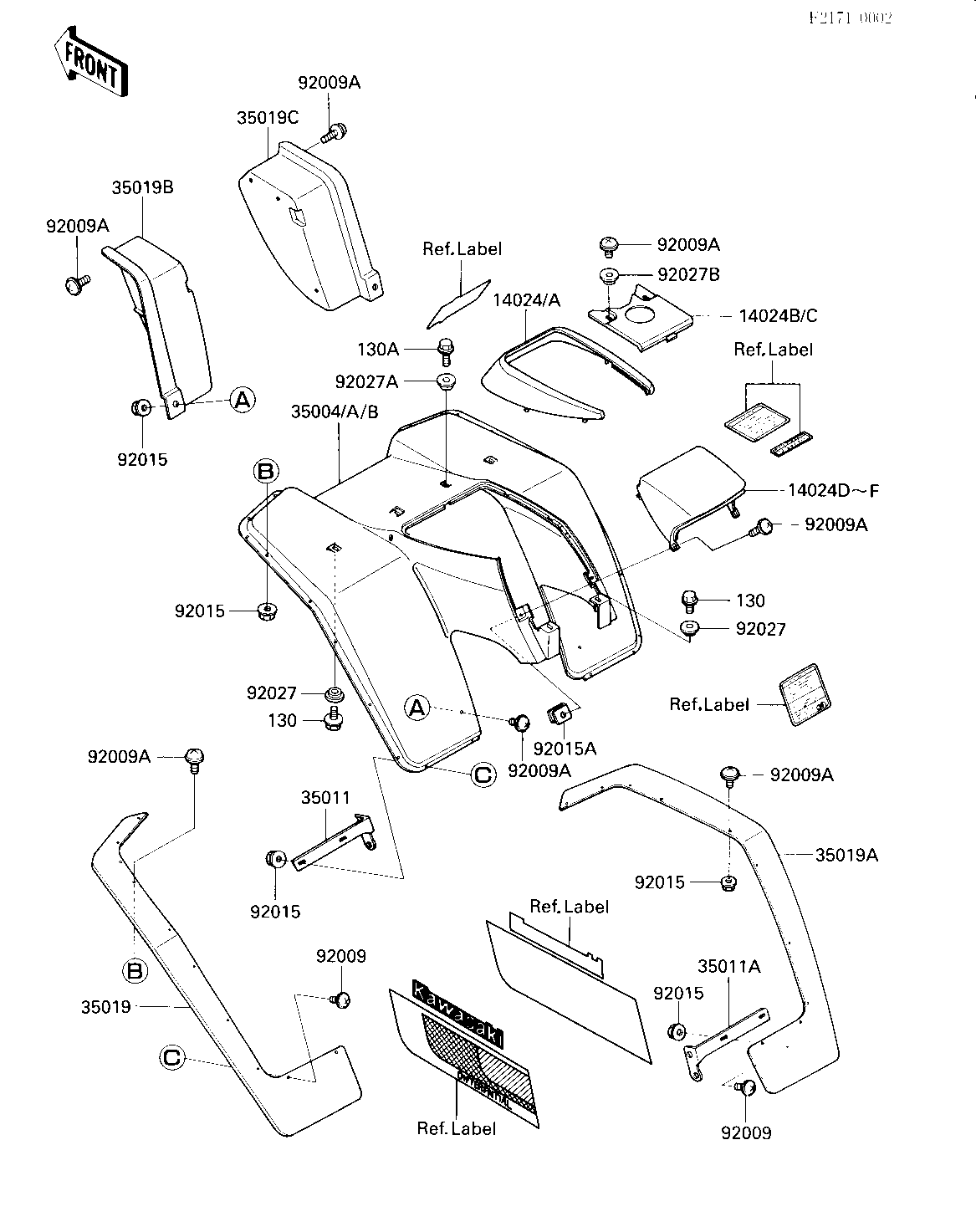

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FRONT FENDER,FR,EBO (Can | 14024 | 14024-1064-6C | 1 | CN | |
| COVER-FRONT-EBONY | 14024A | 14024-1064-6D | 1 | US | |
| 14024-1080-6D (Canada) | 14024B | 14024-1080-6C | 1 | CN | |
| COVER-REAR | 14024C | 14024-1080-6D | 1 | US | |
| COVER,FRONT FENDER,RR,EBO (Can | 14024D | 14024-1093-6C | 1 | CN | |
| COVER-REAR-EBONY | 14024E | 14024-1093-6D | 1 | CN | |
| COVER-REAR-RED | 14024F | 14024-1093-6L | 1 | ||
| FENDER-FRONT,EBONY (Canada) | 35004 | 35004-1172-6C | 1 | CN | |
| FENDER-FRONT-EBONY | 35004A | 35004-1172-6D | 1 | US | |
| FENDER-FRONT-RED | 35004B | 35004-1172-6L | 1 | ||
| STAY | 35011 | 35011-1259 | 1 | ||
| STAY | 35011A | 35011-1260 | 1 | ||
| FLAP,FR,LH | 35019 | 35019-1146 | 1 | ||
| FLAP,FR,RH | 35019A | 35019-1147 | 1 | ||
| FLAP,FR,INSIDE,LH | 35019B | 35019-1148 | 1 | ||
| FLAP,FR,INSIDE,RH | 35019C | 35019-1149 | 1 | ||
| SCREW | 92009 | 92009-1663 | 4 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 28 | ||
| NUT | 92015 | 92015-1675 | 22 | ||
| NUT | 92015A | 92015-1678 | 2 | ||
| COLLAR | 92027 | 92027-122 | 4 | ||
| COLLAR | 92027A | 92027-1909 | 2 | ||
| COLLAR,L=4.7 | 92027B | 92027-1964 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130C0616 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130C0820 | 2 |
