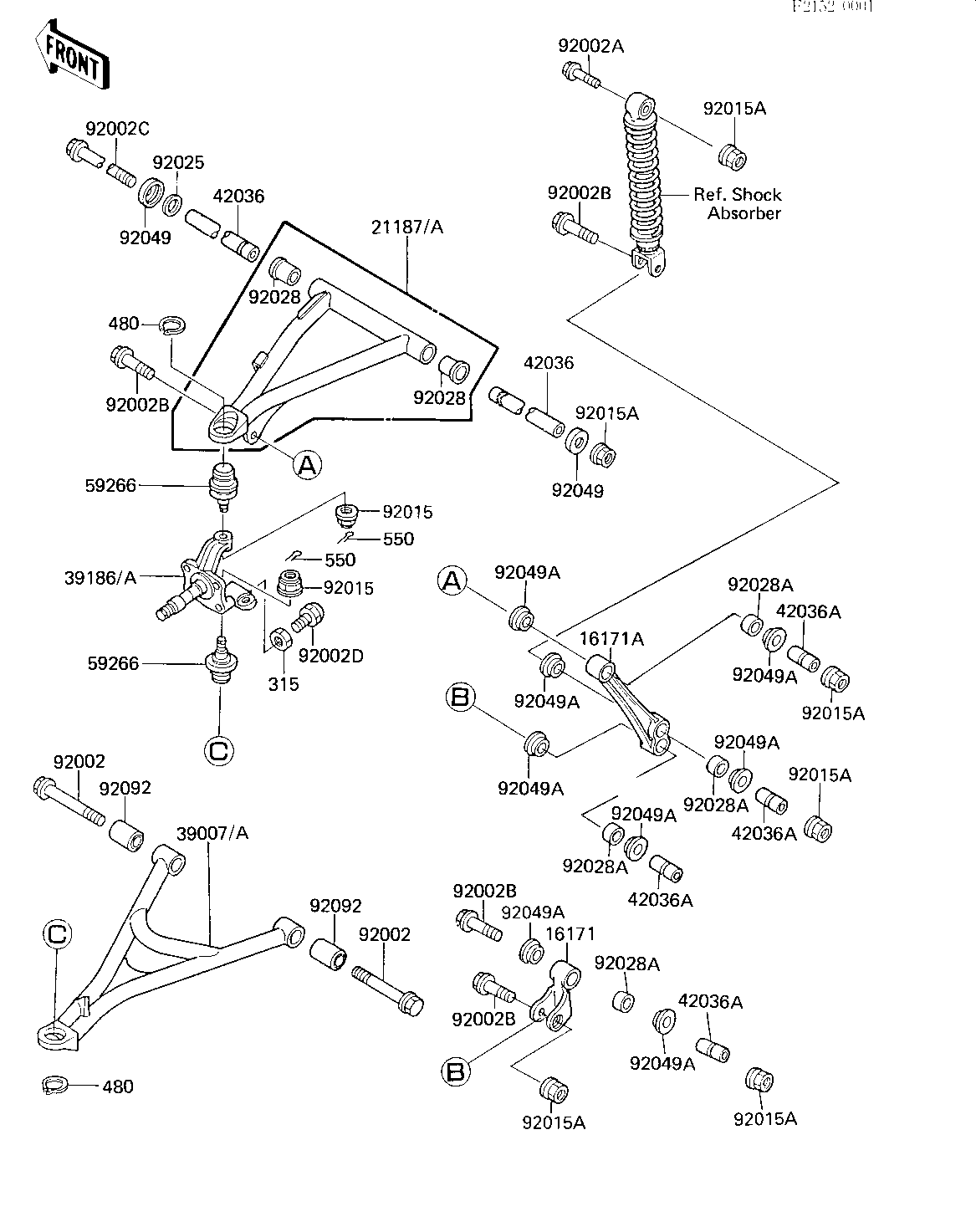

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LINK,SUSPENSION,FR,LW | 16171 | 16171-1052 | 2 | ||
| LINK,SUSPENSION,FR,UP | 16171A | 16171-1055 | 2 | ||
| ARM-ASSY,SUSPENSION,F | 21187 | 21187-1051 | 1 | ||
| ARM-ASSY,SUSPENSION,F | 21187A | 21187-1052 | 1 | ||
| ARM-SUSP,FR,LH,LWR | 39007 | 39007-1076 | 1 | ||
| ARM-SUSP,FR,RH,LWR | 39007A | 39007-1077 | 1 | ||
| KNUCKLE,LH | 39186 | 39186-1054 | 1 | ||
| KNUCKLE,RH | 39186A | 39186-1055 | 1 | ||
| SLEEVE,SUSPENSION ARM | 42036 | 42036-1160 | 4 | ||
| SLEEVE | 42036A | 42036-1176 | 8 | ||
| JOINT-BALL | 59266 | 59266-1060 | 4 | ||
| BOLT,FLANGED,12X60 | 92002 | 92002-1456 | 4 | ||
| BOLT,FLANGED,10X46.5 | 92002A | 92002-1528 | 2 | ||
| BOLT,FLANGED,10X53.5 | 92002B | 92002-1529 | 8 | ||
| BOLT,FLANGED,10X291.5 | 92002C | 92002-1549 | 2 | ||
| BOLT,8X30 | 92002D | 92002-1559 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1338 | 4 | ||
| NUT,LOCK,10MM | 92015A | 92015-1597 | 12 | ||
| SHIM | 92025 | 92025-1678 | 2 | ||
| BUSHING,KNUCKLE | 92028 | 92028-1318 | 4 | ||
| BUSHING,SUSPENSION LI | 92028A | 92028-1373 | 8 | ||
| SEAL-OIL,KNUCKLE | 92049 | 92049-1198 | 4 | ||
| SEAL-OIL,MHA17245.7F | 92049A | 92049-1223 | 16 | ||
| BUSHING-RUBBER | 92092 | 92092-1057 | 4 | ||
| NUT-HEX-FINE | 315 | 315J1000 | 2 | ||
| CIRCRIP-TYPE-C | 480 | 480J3200 | 4 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 4 |
| LINK,SUSPENSION,FR,LW | |
| REF # | 16171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LINK,SUSPENSION,FR,UP | |
| REF # | 16171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ARM-ASSY,SUSPENSION,F | |
| REF # | 21187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-ASSY,SUSPENSION,F | |
| REF # | 21187A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,FR,LH,LWR | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,FR,RH,LWR | |
| REF # | 39007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KNUCKLE,LH | |
| REF # | 39186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KNUCKLE,RH | |
| REF # | 39186A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SUSPENSION ARM | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SLEEVE | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X60 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X46.5 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X53.5 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X291.5 | |
| REF # | 92002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X30 | |
| REF # | 92002D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SHIM | |
| REF # | 92025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,KNUCKLE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SUSPENSION LI | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,KNUCKLE | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA17245.7F | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE | |
| REF # | 315 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCRIP-TYPE-C | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
