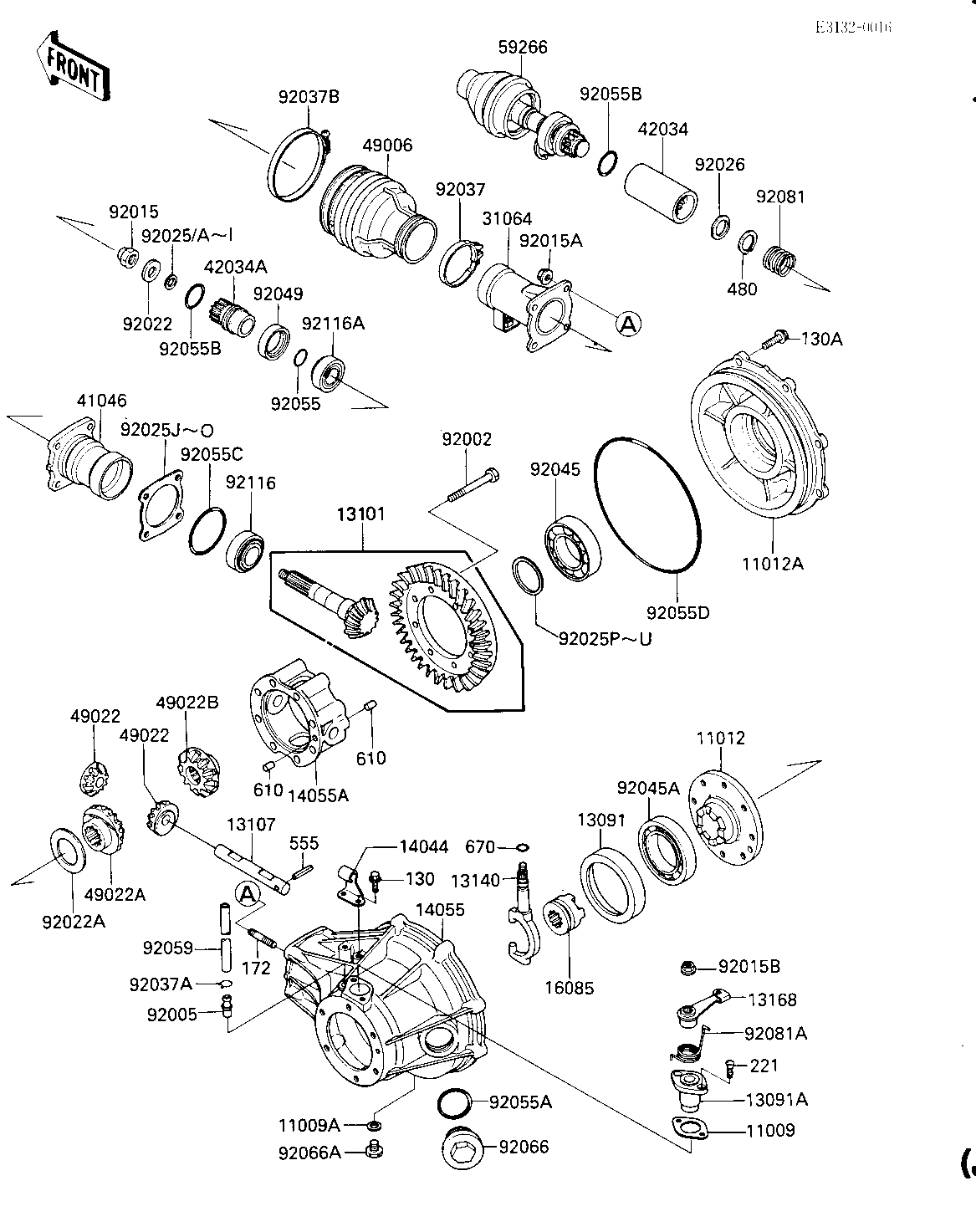

1987 Bayou 300 - DRIVE SHAFT/FINAL GEARS (HB518102~

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1521 1
GASKET CHECK VALVE 11009A 92065-058 1
CAP,BEVEL GEAR 11012 11012-1444 1
CAP 11012A 11012-1445 1
HOLDER 13091 13091-1374 1
HOLDER 13091A 13091-1375 1
GEAR-ASSY,DIFFERENTIA 13101 13101-5054 1
SHAFT,BEVEL GEAR 13107 13107-1149 1
FORK-SHIFT,DIFF LOCK 13140 13140-1136 1
LEVER 13168 13168-1268 1
HOLDER-CABLE,DIFFEREN 14044 14044-1058 1
CASE-GEAR 14055 14055-1082 1
CASE-GEAR,BEVEL 14055A 14055-1072 1
GEAR,DIFF LOCK 16085 16085-1142 1
PIPE-COMP,FR 31064 31064-1068 1
HOUSING-BEARING 41046 41046-1065 1
COUPLING,DRIVE SHAFT 42034 42034-1077 1
COUPLING,DIFFERENTIAL 42034A 42034-1078 1
BOOT,DRIVE SHAFT 49006 49006-1237 1
UNAVAILABLE IN PRICE BOOK 49022 49022-2107 2
GEAR-BEVEL,OD=35,16T 49022A 49022-1076 1
GEAR-BEVEL,OD=30,16T 49022B 49022-1077 1
JOINT-BALL,DRIVE SHAF 59266 59266-1068 1
BOLT,8X68 92002 92002-1553 8
FITTING,BREATHER 92005 92005-1127 1
NUT,12MM 92015 92015-1182 1
NUT,8MM 92015A 92015-1402 4
NUT,8MM 92015B 92015-1406 1
WASHER,12X3X25X3.2 92022 92022-1293 1
WASHER 92022A 92022-1742 1
SHIM,12.5X17X1.30 92025 92025-1282 AR
SHIM,12.5X17X0.1 92025A 92025-1287 AR
SHIM,12.5X17X0.2 92025B 92025-1288 AR
SHIM,12X5X17X0.3 92025C 92025-1289 AR
SHIM,12.5X17X0.5 92025D 92025-1290 AR
SHIM,12.5X17X0.6 92025E 92025-1291 AR
SHIM,12.5X17X0.7 92025F 92025-1292 AR
SHIM,12.5X17X0.8 92025G 92025-1293 AR
SHIM,12.5X17X0.9 92025H 92025-1294 AR
SHIM,12.5X17X1.0 92025I 92025-1295 AR
SHIM,T=0.10 92025J 92025-1703 AR
SHIM,T=0.15 92025K 92025-1704 AR
SHIM,T=0.50 92025L 92025-1705 AR
SHIM,T=0.80 92025M 92025-1706 AR
SHIM,T=1.00 92025N 92025-1707 AR
SHIM,T=1.20 92025O 92025-1708 AR
SHIM,40.5X50X0.10 92025P 92025-1709 AR
SHIM,40.5X50X0.15 92025Q 92025-1710 AR
SHIM,40.5X50X0.50 92025R 92025-1711 AR
SHIM,40.5X50X0.80 92025S 92025-1712 AR
SHIM,40.5X50X1.00 92025T 92025-1713 AR
SHIM,40.5X50X1.20 92025U 92025-1714 AR
SPACER,DRIVE SHAFT 92026 92026-1106 1
CLAMP 92037 92037-1523 1
CLAMP 92037A 92037-1610 1
CLAMP 92037B 92037-1654 1
BEARING-BALL,6208CM 92045 92045-1145 1
BEARING-BALL 92045A 92045-1162 1
SEAL-OIL 92049 92049-1231 1
"0" RING 92055 92055-022 1
"O" RING,VLV ADJUST 92055A 92055-1005 1
RING-0,27MM 92055B 92055-1119 2
RING-O,54.8MM 92055C 92055-1296 1
RING-O,179.8MM 92055D 92055-1297 1
TUBE,6X9X750 92059 92059-1372 1
PLUG,VLV ADJUST 92066 92066-1006 1
PLUG OIL DRAIN 92066A 92067-001 1
SPRING 92081 92081-1650 1
SPRING 92081A 92081-1853 1
BEARING-ROLLER,4T-CR- 92116 92116-1005 1
BEARING-ROLLER,4T3200 92116A 92116-1010 1
BOLT,FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X25 130A 130G0825 8
STUD,8X25 172 92004-1008 4
SCREW 6X18 221 221B0618 2
CIRCLIP, 20MM 480 480J2000 1
PIN-SPRING 555 555A0528 1
PIN-DOWEL,8X12 610 610A0812 2
"0" RING, 10MM 670 670B2010 1
