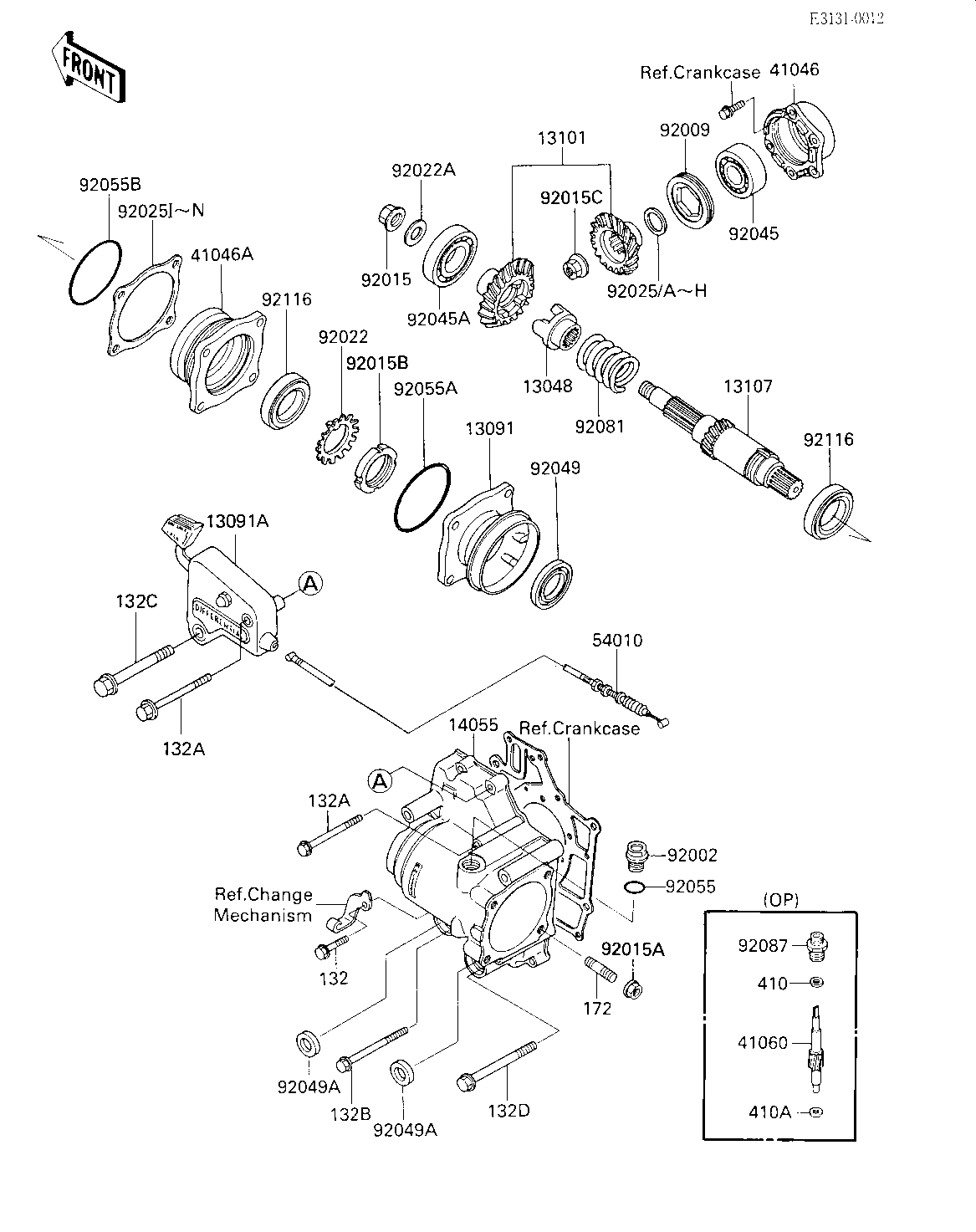

1987 Bayou 300 - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER,FR 13048 13048-1059 1
HOLDER,GEAR CASE,FR 13091 13091-1377 1
HOLDER,DIFF LOCK 13091A 13091-1410 1
GEAR-ASSY,FRONT BEVEL 13101 13101-5053 1
SHAFT-COMP,GEAR CASE, 13107 13234-1085 1
CASE-GEAR,FRONT BEVEL 14055 14055-1071 1
HOUSING-BEARING,GEAR 41046 41046-1064 1
HOUSING-BEARING,GEAR 41046A 41046-1066 1
GEAR-METER SCREW 41060 41060-1113 1 (OPTION)
CABLE,DIFF LOCK 54010 54010-1053 1
BOLT,16X10 92002 92002-1238 1
SCREW,55MM 92009 92009-1384 1
NUT,FLANGED,14MM 92015 92015-1341 1
NUT,8MM 92015A 92015-1402 4
NUT,RING 35MM 92015B 92015-1515 1
NUT 92015C 92015-1581 1
WASHER,LOCK 92022 92022-1687 1
WASHER,14.2X28X2.6 92022A 92022-1688 1
SHIM,20.3X28X1.3 92025 92025-1533 AR
SHIM,20.3X28X0.7 92025A 92025-1534 AR
SHIM,20.3X28X0.8 92025B 92025-1535 AR
SHIM,20.3X28X0.9 92025C 92025-1536 AR
SHIM,20.3X28X1.0 92025D 92025-1537 AR
SHIM,20.3X28X1.2 92025E 92025-1538 AR
SHIM,20.3X28X0.15 92025F 92025-1573 AR
SHIM,20.3X28X0.20 92025G 92025-1574 AR
SHIM,20.3X28X1.1 92025H 92025-1575 AR
SHIM,T=0.10 92025I 92025-1697 AR
SHIM,T=0.15 92025J 92025-1698 AR
SHIM,T=0.50 92025K 92025-1699 AR
SHIM,T=1.00 92025M 92025-1701 AR
SHIM,T=1.20 92025N 92025-1702 AR
BEARING-BALL,5304 92045 92045-1144 1
BEARING-BALL,6206CM 92045A 92045-1155 1
OIL SEAL,TB30508 92049 92050-057 1
OIL SEAL,CHANGE SHAFT 92049A 92050-082 2
RING-O,ID=13.8 92055 92055-1141 1
RING-O,76MM 92055A 92055-1213 1
RING-O 92055B 92055-1316 1
SPRING,DAMPER 92081 92081-1854 1
BUSHING-METER GEAR 92087 92087-1054 1 (OPTION)
BEARING-ROLLER 92116 92116-1055 2
BOLT-FLANGED-SMALL 132 132J0630 4
BOLT-FLANGED-SMALL 132A 132J0675 2
BOLT-FLANGED-SMALL 132B 132J0685 1
BOLT-FLANGED-SMALL 132C 132J0875 1
BOLT-FLANGED-SMALL 132D 132J0890 3
STUD 8X30 172 172G0830 4
WASHER PLAIN 5MM 410 410B0500 1 (OPTION)
WASHER PLAIN 6MM 410A 410B0600 1 (OPTION)
