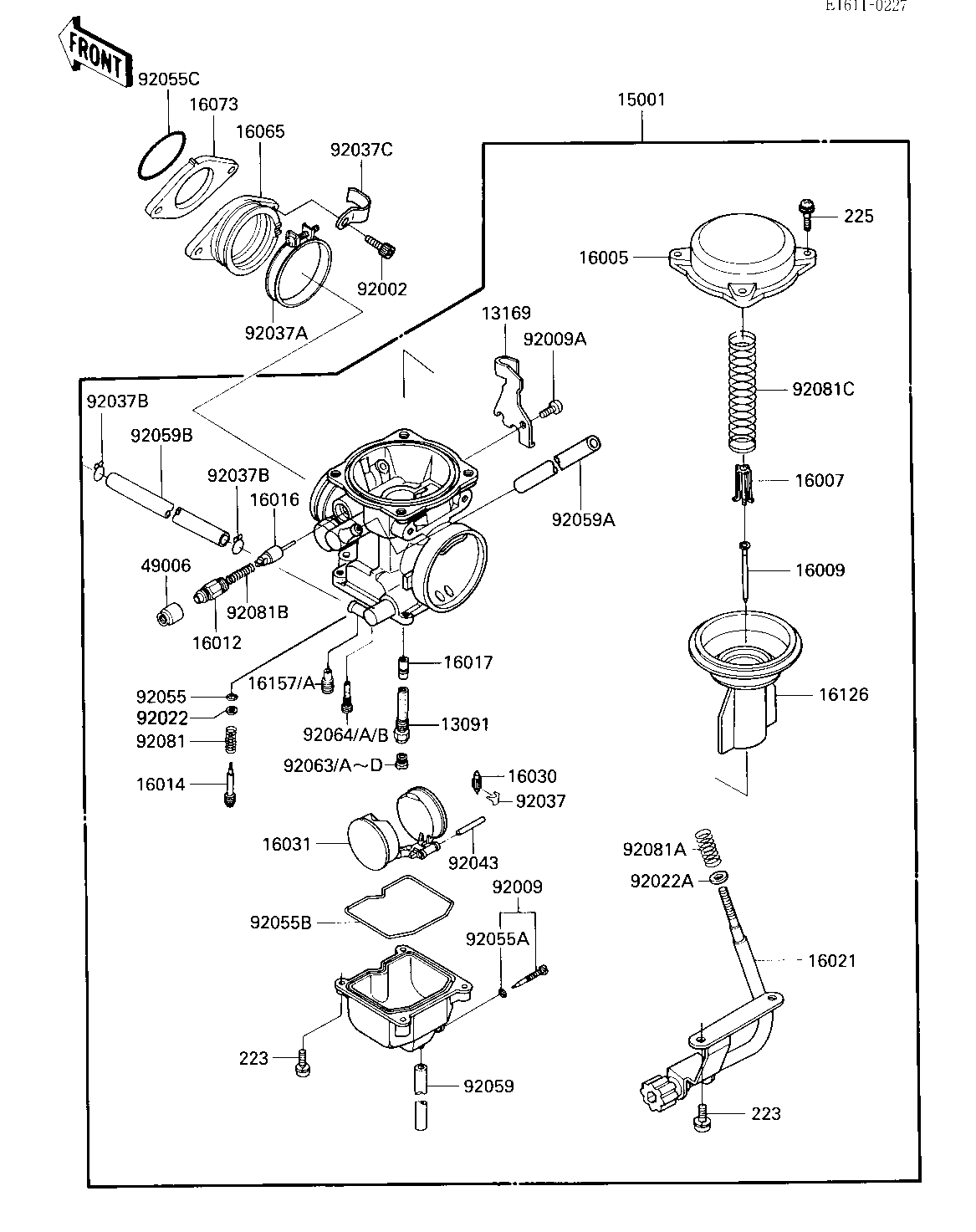

1987 Bayou 300 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,THROTTLE CABLE 13169 13169-1977 1
CARBURETOR-ASSY 15001 15001-1332 1
TOP-CHAMBER 16005 16005-1056 1
SEAT-SPRING 16007 16007-1120 1
NEEDLE-JET,27Q 16009 16009-1277 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1054 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE 16017 16017-1270 1
SCREW-THROTTLE STOP 16021 16021-1115 1
FLOAT VALVE 16030 16030-1007 1
FLOAT 16031 16031-1056 1
HOLDER-CARBURETOR 16065 16065-1177 1
INSULATOR 16073 16073-5001 1
VALVE,VACUUM 16126 16126-1160 1
JET-STARTER 16157 16157-1051 1 (OPTION)
JET-STARTER 16157A 16157-1052 1 (OPTION)
BOOT,STARTER PLUNGER 49006 49006-1165 1
BOLT,6X25 92002 92002-1093 2
SCREW,DRAIN 92009 92009-1095 1
SCREW 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLIP,FLOAT VALVE 92037 16044-007 1
CLAMP 92037A 92037-1326 1
CLAMP,TUBE 92037B 92037-1531 2
CLAMP 92037C 92037-1871 1
PIN,FLOAT 92043 92043-1148 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O,38MM 92055C 92055-1295 1
HOSE,FUEL OVERFLOW 92059 92059-111 1
TUBE,L=350 92059A 92059-1237 1
TUBE,6.5X11.5X150 92059B 92059-1463 1
MAIN JET,#135 92063 92063-1014 1 (OPTION)
MAIN JET,2ND,#125 92063 92063-1069 1 (OPTION)
MAIN JET,2ND,#128 92063B 92063-1074 1 (OPTION)
MAIN JET,2ND,#130 92063C 92063-1075 1
JET-MAIN,#132 92063D 92063-1076 1 (OPTION)
JET-PILOT,#35 92064 92064-1101 1 (OPTION)
JET-PILOT 92064A 92064-1119 1
JET-PILOT 92064B 92064-1125 1 (OPTION)
SPRING,PIROT ADJ SCRW 92081 92081-1002 1
SPRING,THROTTLE STOP 92081A 92081-1617 1
SPRING,PLUNGER 92081B 92081-1720 1
SPRING,VACUUM VALVE 92081C 92081-1912 1
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
