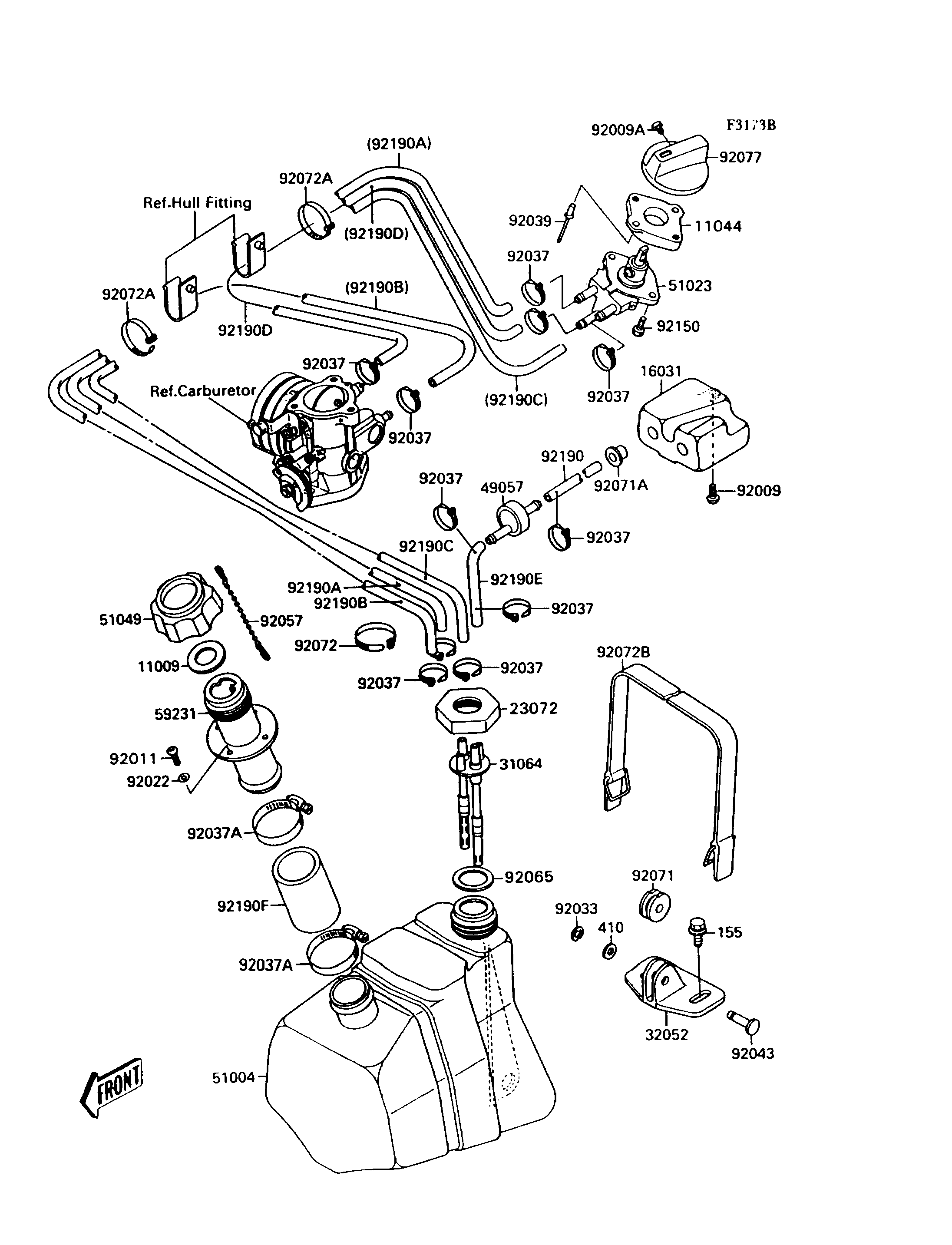

1991 300 SX - Fuel Tank(JS300-A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
BRACKET,FUEL TAP 11044 11044-3708 1
FLOAT 16031 16031-3709 1
RETAINER 23072 23072-501 1
PIPE-COMP,FUEL 31064 31064-3718 1
BRACKET-TANK 32052 32052-3704 1
VALVE-RELIEF 49057 49057-3001 1
TANK-FUEL 51004 51004-3703 1
TAP-ASSY,FUEL 51023 51023-3715 1
CAP-TANK,FUEL 51049 51049-3705 1
FILLER 59231 59231-3701 1
SCREW,5X10 92009 92009-3718 1
SCREW,4X8 92009A 92009-3729 1
SCREW 92011 92011-562 4
WASHER 92022 92022-563 4
RING-SNAP,7MM 92033 92033-3704 1
CLAMP 92037 92037-1173 11
CLAMP 92037A 92037-3009 2
RIVET 92039 92039-3714 2
PIN 92043 92043-3705 1
CHAIN,COVER,L=100 92057 92057-3704 1
GASKET 92065 92065-504 1
GROMMET 92071 92071-3730 1
GROMMET 92071A 92071-3739 2
BAND,L=123 92072 92072-030 1
BAND,L=149 92072A 92072-031 2
BAND,L=456 92072B 92072-3708 1
KNOB,FUEL TAP 92077 92077-3704 1
BOLT,5X16 92150 92150-3778 2
TUBE,5.8X10.8X650 92190 92190-3755 1
TUBE,"ON",5.8X10.8X1000 92190A 92190-3756 1
TUBE,"RETURN",7X12X780 92190B 92190-3757 1
TUBE,"RES",5.8X10.8X1000 92190C 92190-3758 1
TUBE,5.8X10.8X560 92190D 92190-3759 1
TUBE,5.8X10.8X55 92190E 92190-3765 1
TUBE,45X53X80 92190F 92190-3776 1
BOLT-WSP-SMALL,8X20 155 155R0820 2
WASHER-PLAIN-SMALL,8MM 410 410S0800 1
