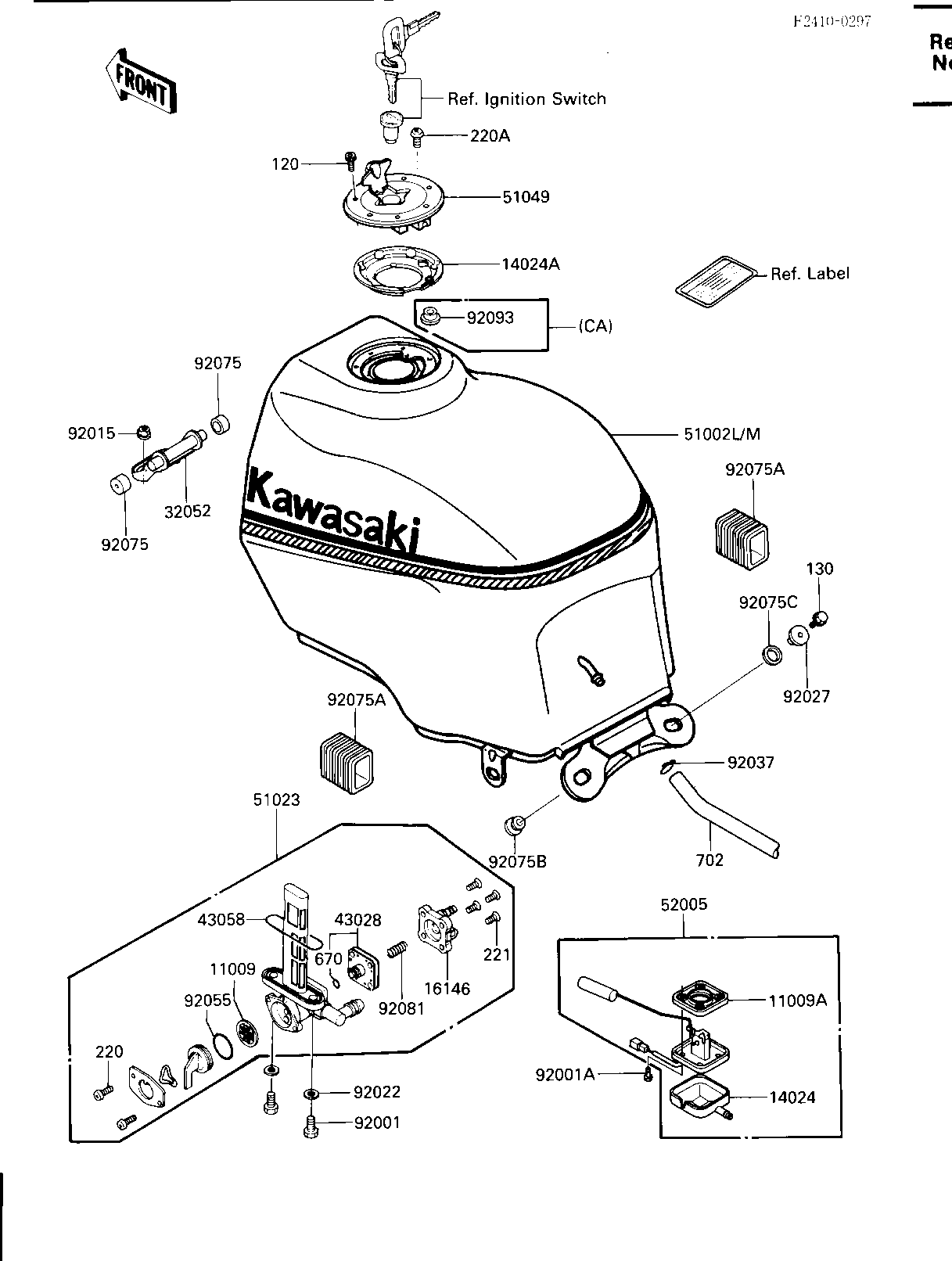

1987 Ninja® 600RX - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TAP 11009 11009-1188 1
GASKET,FUEL GAUGE 11009A 11009-1656 1
COVER,FUEL GUAGE 14024 14025-1536 1
COVER,TANK CAP 14024A 14025-1913 1
COVER ASSY,FUEL TAP 16146 16146-1009 1
BRACKET-TANK 32052 32052-1202 1
DIAPHRAGM 43028 43028-1033 1
RING,DUST SEAL 43058 43058-003 1
TANK-COMP-FUEL,EBONY/ 51002L 51002-5241-T4 1 US
TANK-COMP-FUEL,EBONY/ 51002M 51002-5252-T4 1 CA
TAP-ASSY,FUEL 51023 51023-1186 1
CAP-TANK,FUEL 51049 51049-1091 1
GAUGE,FUEL 52005 52005-1071 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
BOLT,FUEL GAGE 92001A 92001-1705 4
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER-PLAIN 92022 92022-183 2
COLLAR 92027 92027-251 2
CLAMP FUEL PIPE 92037 92037-010 1
"0" RING,FUEL TAP LEV 92055 92055-1085 1
DAMPER,FUEL TANK,FRON 92075 92075-1115 2
DAMPER,FUEL TANK 92075A 92075-1718 2
RUBBER,FENDER COVER 92075B 92075-174 2
DAMPER RUBBER 92075C 92075-175 2
SPRING,DIAPHRAGM VALV 92081 92081-1240 1
OIL SEAL,FUEL TANK 92093 92093-1030 1 CA
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X25 130 130J0625 2
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE-BREATHER (BULK) 702 702A071000 1
