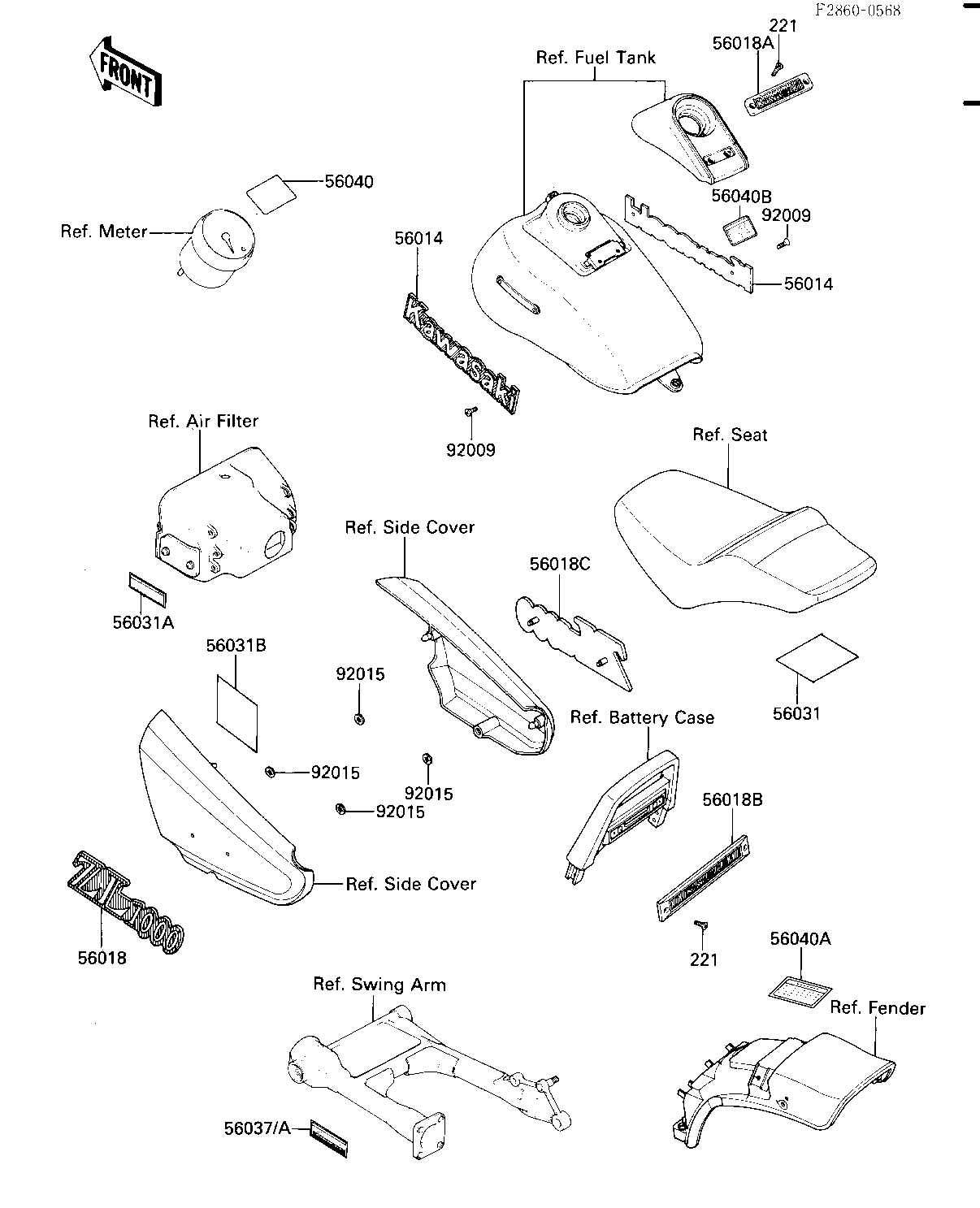

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWA | 56014 | 56014-1140 | 2 | ||
| MARK,SIDE COVER | 56018 | 56018-1885 | 1 | ||
| MARK,FUEL TANK COVER | 56018A | 56018-1886 | 1 | ||
| MARK,FRAME GRIP,UPP | 56018B | 56018-1887 | 1 | ||
| MARK | 56018C | 56018-1889 | 1 | ||
| LABEL-MANUAL,DAILY SA | 56031 | 56031-1425 | 1 | ||
| LABEL-MANUAL,OIL & OI | 56031A | 56031-1428 | 1 | ||
| LABEL-MANUAL,BATTERY | 56031B | 56031-1503 | 1 | ||
| LABEL-SPECIFICATION,T | 56037 | 56037-1354 | 1 | CA,US | |
| UNAVAILABLE IN PRICE BOOK | 56037A | 56037-1355 | 1 | CN | |
| LABEL,BRAKE-IN | 56040 | 56040-1007 | 1 | CA,US | |
| LABEL,AIR INTAKE | 56040A | 56040-1014 | 1 | ||
| LABEL-WARNING,FUEL TK | 56040B | 56040-1121 | 1 | CA | |
| SCREW | 92009 | 92009-1456 | 4 | ||
| NUT,LOCK,3MM | 92015 | 92018-005 | 4 | ||
| SCREW-CSK-CROS | 221 | 221E0306 | 4 |
