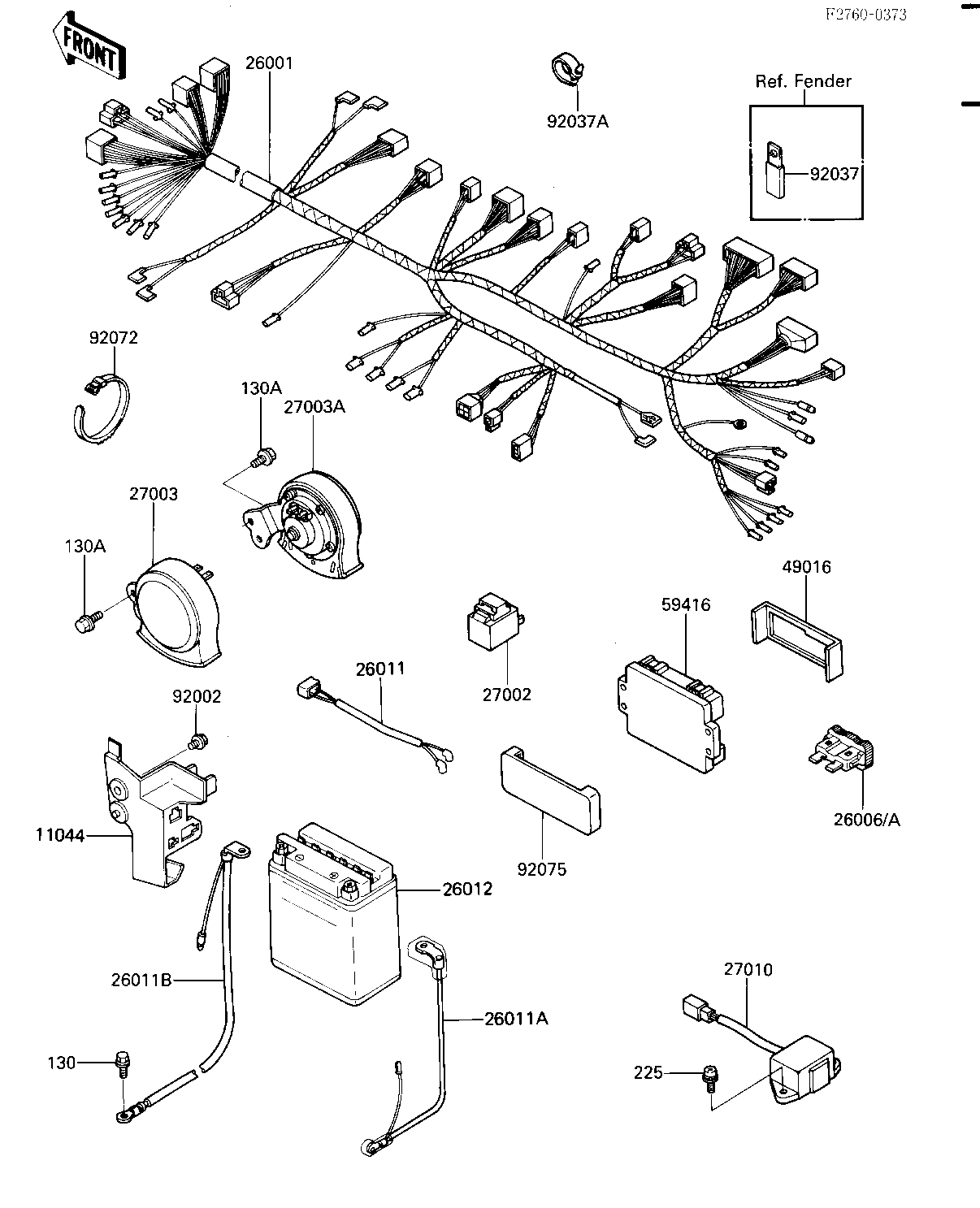

1987 ZL1000 Eliminator - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RELAY&COUPLER | 11044 | 11045-1385 | 1 | ||
| HARNESS,MAIN | 26001 | 26001-1790 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1006 | 2 | ||
| FUSE,10A-R | 26006A | 26006-1007 | 6 | ||
| WIRE-LEAD,BRAKE SWITC | 26011 | 26011-1313 | 1 | ||
| WIRE-LEAD,BRAKE SWITC | 26011A | 26011-1313 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011B | 26011-1367 | 1 | ||
| YUA BAT YB14L-A2 | 26012 | 26012-1008 | 1 | ||
| RELAY-ASSY,TURN SIGNA | 27002 | 27002-1060 | 1 | ||
| HORN,LH | 27003 | 27003-1255 | 1 | ||
| HORN,RH | 27003A | 27003-1256 | 1 | ||
| SWITCH,RESERVE LIGHTI | 27010 | 27010-1069 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1121 | 1 | ||
| CASE-ELECTRIC | 59416 | 59416-1062 | 1 | ||
| BOLT | 92002 | 92002-1351 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| CLAMP | 92037A | 92037-1163 | 1 | ||
| BAND,WIRING HARNESS | 92072 | 92072-056 | 4 | ||
| DAMPER,FUSE & RELAY B | 92075 | 92075-1688 | 1 | ||
| BOLT,FLANGED,6X8 | 130 | 130B0608 | 1 | ||
| BOLT-FLANGED,6X10,BLA | 130A | 130C0610 | 4 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 |
| BRACKET,RELAY&COUPLER | |
| REF # | 11044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,30A-G | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A-R | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BRAKE SWITC | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BRAKE SWITC | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT YB14L-A2 | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-ASSY,TURN SIGNA | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN,LH | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN,RH | |
| REF # | 27003A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,RESERVE LIGHTI | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,FUSE | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-ELECTRIC | |
| REF # | 59416 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,WIRING HARNESS | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUSE & RELAY B | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10,BLA | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 225 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
