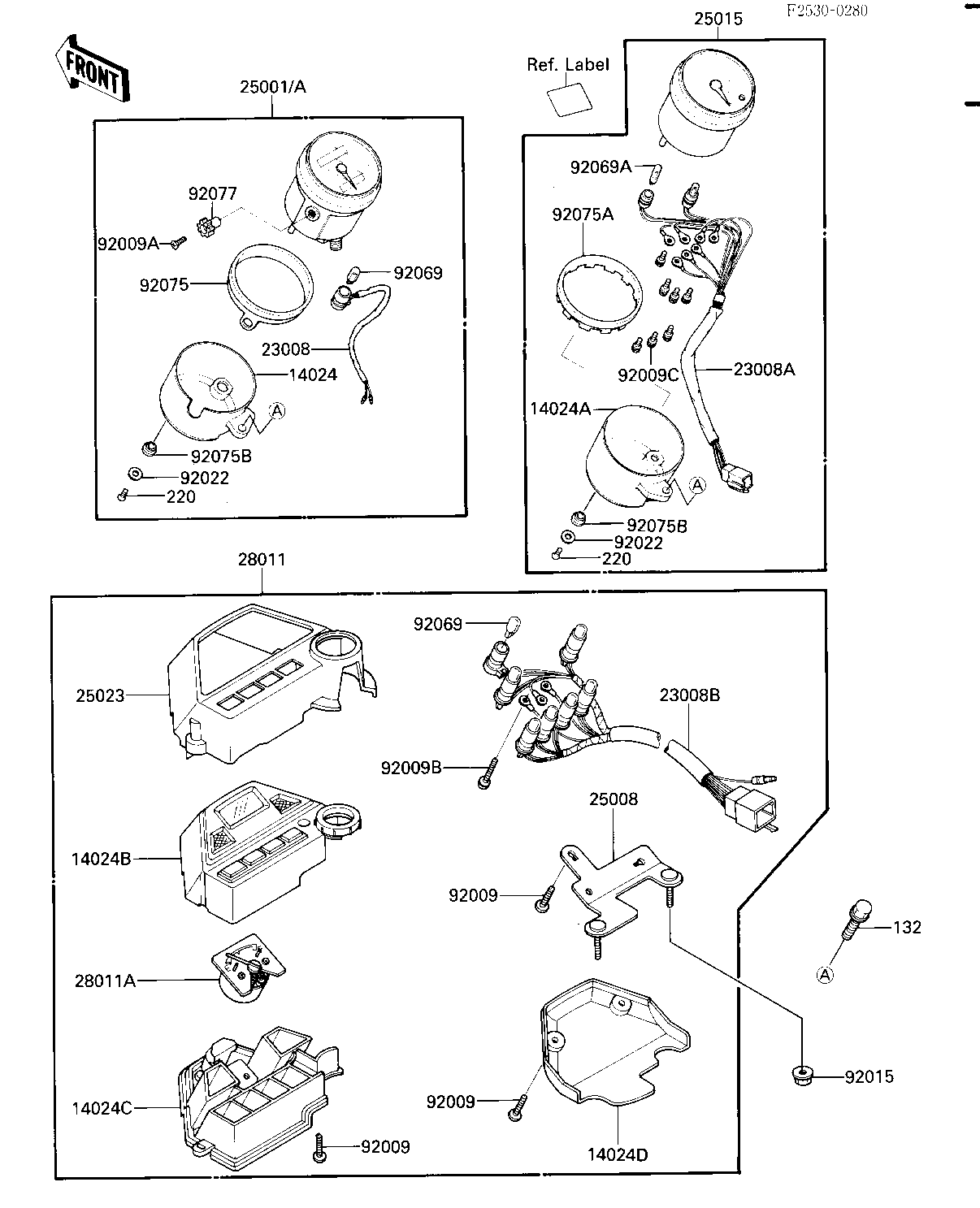

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER | 14024 | 14024-1096 | 1 | ||
| COVER | 14024A | 14024-1097 | 1 | ||
| COVER,PILOT BOX,INNER | 14024B | 14024-1354 | 1 | ||
| COVER,PILOT BOX,LWR | 14024C | 14024-1355 | 1 | ||
| COVER,PILOT BOX | 14024D | 14024-1356 | 1 | ||
| SOCKET-ASSY,SPEEDOMET | 23008 | 23008-1279 | 1 | ||
| SOCKET-ASSY,TACHOMETE | 23008A | 23008-1280 | 1 | ||
| SOCKET-ASSY,PILOT BOX | 23008B | 23008-1321 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1661 | 1 | CA,US | |
| METER-ASSY,SPEED,KPH (Canada) | 25001A | 25001-1662 | 1 | CN | |
| BRACKET-METER,PILOT B | 25008 | 25008-1134 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1260 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1148 | 1 | ||
| METER,PILOT BOX | 28011 | 28011-1087 | 1 | ||
| METER,FUEL | 28011A | 28011-1090 | 1 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 7 | ||
| SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
| SCREW,3X22 | 92009B | 92009-1293 | 3 | ||
| SCREW,3X10 | 92009C | 92009-1406 | 7 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1328 | 2 | ||
| WASHER | 92022 | 92022-1822 | 4 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 8 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 2 | ||
| DAMPER | 92075 | 92075-1751 | 1 | ||
| DAMPER | 92075A | 92075-1752 | 1 | ||
| DAMPER | 92075B | 92075-1753 | 4 | ||
| KNOB,METER | 92077 | 92077-1059 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0620 | 2 | ||
| SCREW PAN HEAD 4X8 | 220 | 220E0408 | 4 |
