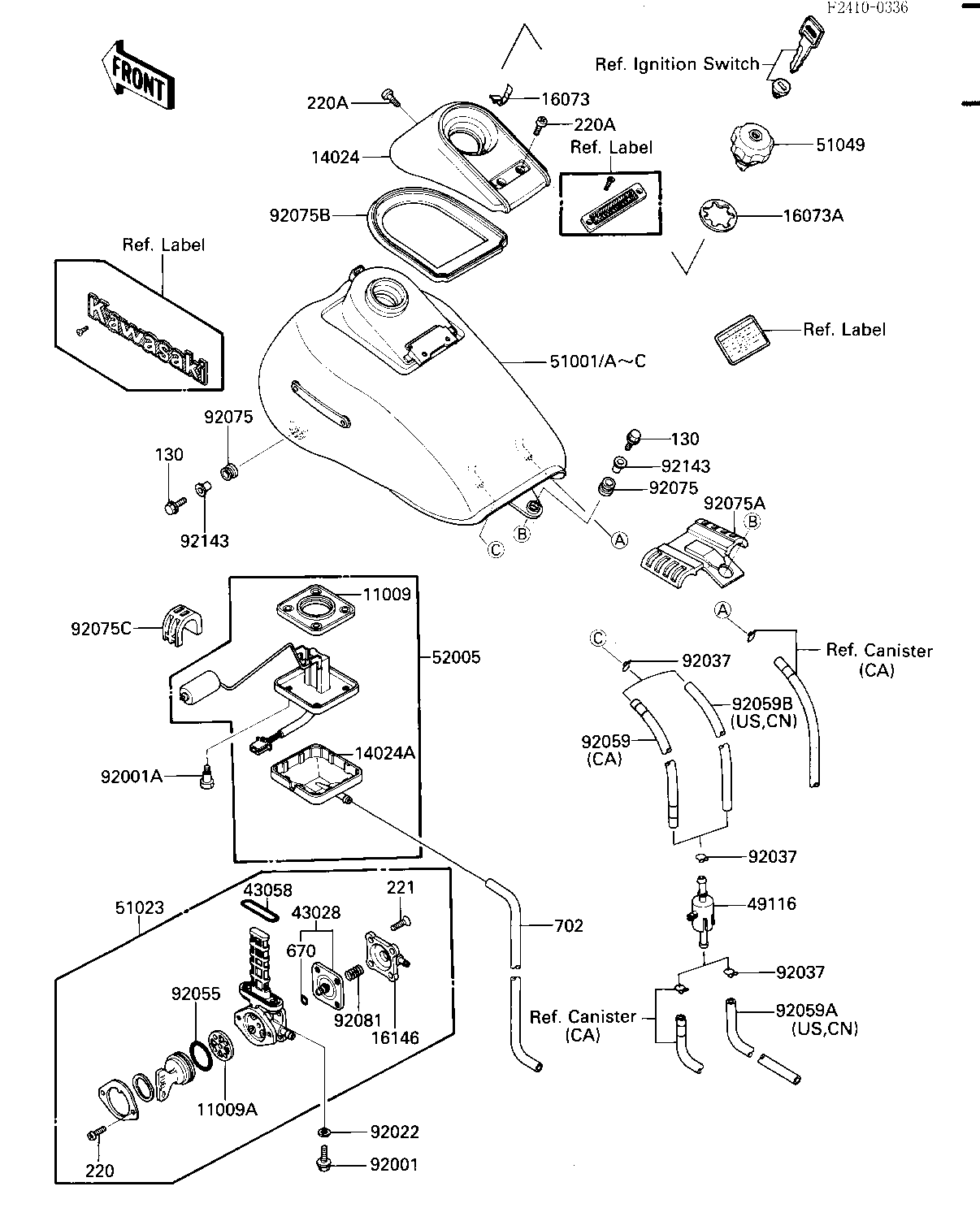

1987 ZL1000 Eliminator - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
GASKET,TAP VALVE 11009A 11009-1530 1
COVER,FUEL TANK,EBONY 14024 14024-1377-H8 1
COVER,FUEL GAGE 14024A 14025-1536 1
INSULATOR 16073 16073-1061 1
INSULATOR 16073A 16073-1063 1
COVER ASSY,TAP 16146 16146-1005 1
DIAPHRAGM ASSY,TAP 43028 43028-1015 1
"0" RING 43058 51039-010 1
VALVE-ASSY,BREATHER 49116 49116-1063 1
TANK-COMP-FUEL CW RED 51001 51001-1247-H3 1 CA
TANK-COMP-FUEL EBONY 51001A 51001-1247-H8 1 CA
TANK-COMP-FUEL,C.W.RE 51001B 51001-1249-H3 1 CN,US
TANK-COMP-FUEL,EBONY 51001C 51001-1249-H8 1 CN,US
TAP-ASSY,FUEL 51023 51023-1119 1
CAP-TANK,FUEL 51049 51049-1074 1
GAUGE,FUEL 52005 52005-1077 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
BOLT,FUEL GAGE 92001A 92001-1705 4
WASHER-PLAIN 92022 92022-183 2
CLAMP FUEL PIPE 92037 92037-010 2 CA
"0" RING,TAP LEVER 92055 92055-1027 1
TUBE,5X8X980,BLUE 92059 92059-1420 1 CA
TUBE 92059A 92059-1625 1 CN,US
TUBE,5X8X320 92059B 92059-1714 1 CN,US
DAMPER 92075 92075-1057 3
DAMPER,FUEL TANK,RR 92075A 92075-1846 1
DAMPER,FUEL TANK COVE 92075B 92075-1847 1
DAMPER,FUEL TANK 92075C 92075-1862 1
SPRING,TAP 92081 92081-1171 1
COLLAR,L=15.6 92143 92143-1041 3
BOLT-FLANGED,6X25 130 130J0625 3
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW-PAN-CROS 220A 220C0510 3
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE-RUBBER 702 702A07680 1
