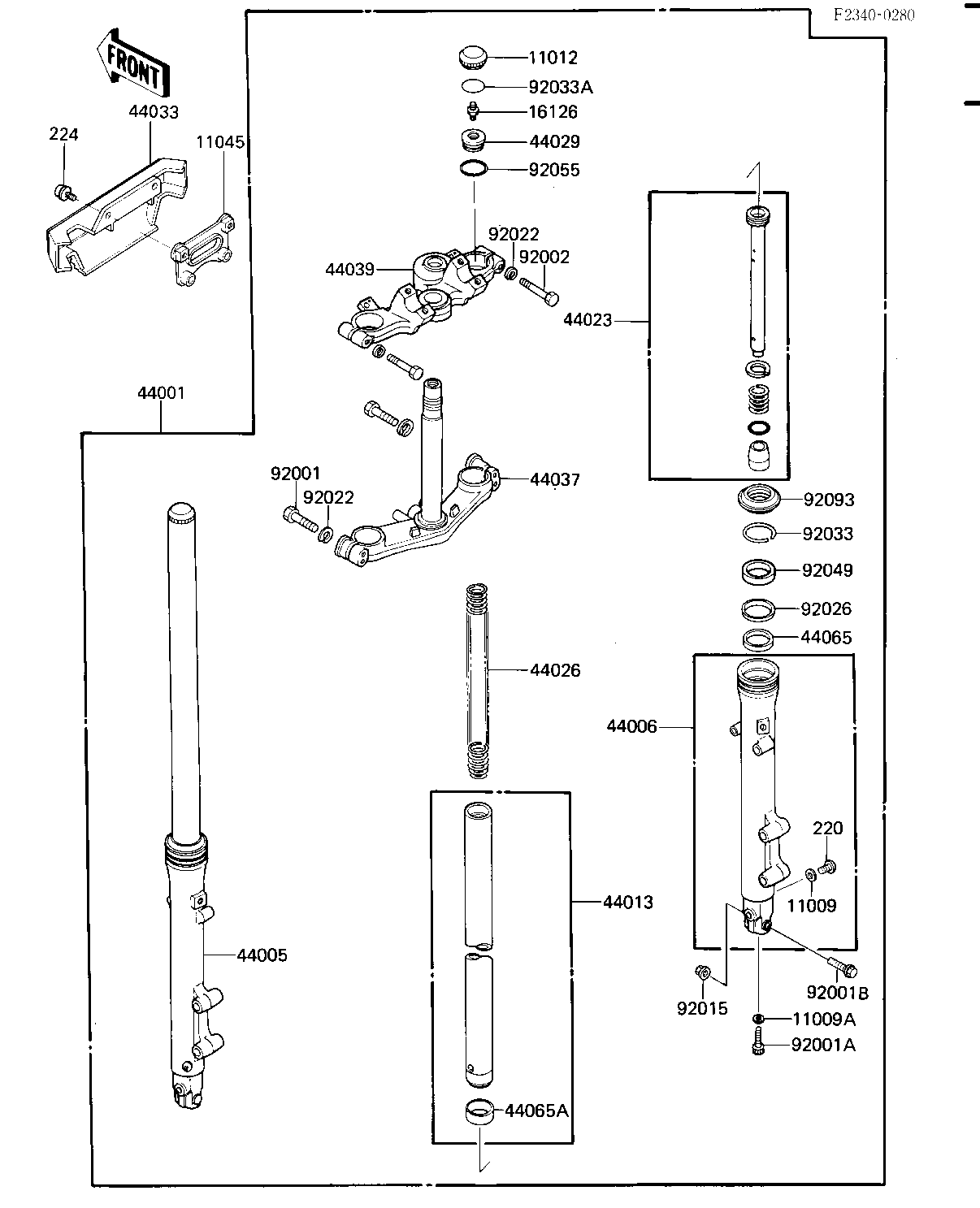

1987 ZL1000 Eliminator - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLG 11009 44045-046 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,FORK TOP 11012 11012-1473 2
BRACKET 11045 11045-1156 1
VALVE,AIR 16126 16126-1105 2
FORK-FRONT 44001 44001-1635 1
PIPE-LEFT FORK OUTER 44005 44005-1233 1
PIPE-RIGHT FORK OUTER 44006 44006-1233 1
PIPE-FORK INNER 44013 44013-1232 2
CYLINDER-COMP-FORK 44023 44023-1055 2
SPRING-FRONT FORK 44026 44026-1342 2
SEAT-FORK SPRING 44029 44029-1120 2
COVER-FORK 44033 44033-1175 1
HOLDER-FORK UNDER 44037 44037-1183 1
HOLDER-FORK UPPER 44039 44039-1143 1
BUSHING-FRONT FORK 44065 44065-1070 2
BUSHING-FRONT FORK,IN 44065A 44065-1071 2
BOLT,HEX HEAD,8X40 92001 92001-1063 4
BOLT,FORK DRAIN 92001A 92001-1464 2
BOLT,FLANGED,8X50 92001B 92001-1486 1
BOLT 92002 92002-1603 2
NUT,8MM 92015 92015-1055 1
WASHER,SPRING,8MM 92022 92022-1703 6
SPACER,FORK 92026 92026-1254 2
RING-SNAP,FORK 92026 92033-1200 2
RING-SNAP 92033A 92033-1201 2
SEAL-OIL,FORK 92049 92049-1230 2
RING-O,FORK SPRING SE 92055 92055-1309 2
SEAL,FORK 92093 92093-1197 2
SCREW PAN HEAD 4X6 220 220B0406 2
SCREW-PAN-WP-CROS,5X1 224 224C0512 2
