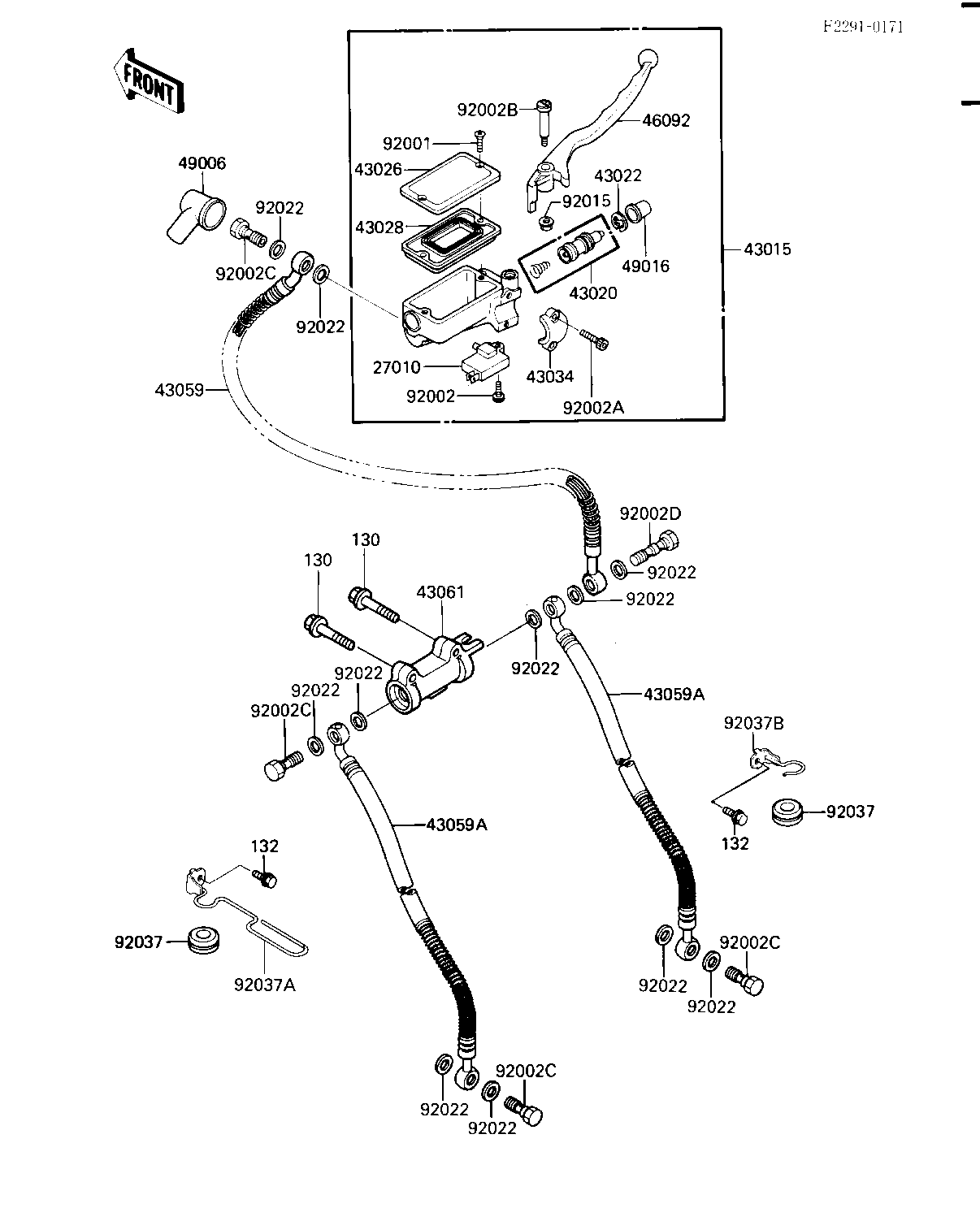

1987 ZL1000 Eliminator - FRONT MASTER CYLINDER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
| CYLINDER-ASSY-MASTER, | 43015 | 43015-1293 | 1 | ||
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE,FR | 43026 | 43026-1052 | 1 | ||
| DIAPHRAGM,MASTER CYLI | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER C | 43034 | 43034-1053 | 1 | ||
| HOSE-BRAKE,FR | 43059 | 43059-1354 | 1 | ||
| HOSE-BRAKE,FR | 43059A | 43059-1355 | 2 | ||
| JOINT,FR BRAKE HOSE | 43061 | 43061-1002 | 1 | ||
| LEVER-GRIP,FRONT BRAK | 46092 | 46092-1121 | 1 | ||
| BOOT,DUST | 49006 | 49006-1041 | 1 | ||
| COVER-SEAL,MASTER CYL | 49016 | 49016-1044 | 1 | ||
| BOLT,MASTER CYLINDER | 92001 | 92001-1727 | 2 | ||
| BOLT | 92002 | 92002-1323 | 1 | ||
| BOLT,SOCKET,6X10 | 92002A | 92002-1324 | 2 | ||
| BOLT,LEVER SET | 92002B | 92002-1561 | 1 | ||
| BOLT | 92002C | 92002-1593 | 4 | ||
| BOLT | 92002D | 92002-1864 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 11 | ||
| DAMPER RUBBER,CYL HSE | 92037 | 43064-006 | 2 | ||
| CLAMP,BRAKE HOSE,LH | 92037A | 92037-1702 | 1 | ||
| CLAMP,BRAKE HOSE,RH | 92037B | 92037-1703 | 1 | ||
| BOLT,FLANGED,6X40 | 130 | 130G0640 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0612 | 2 |
