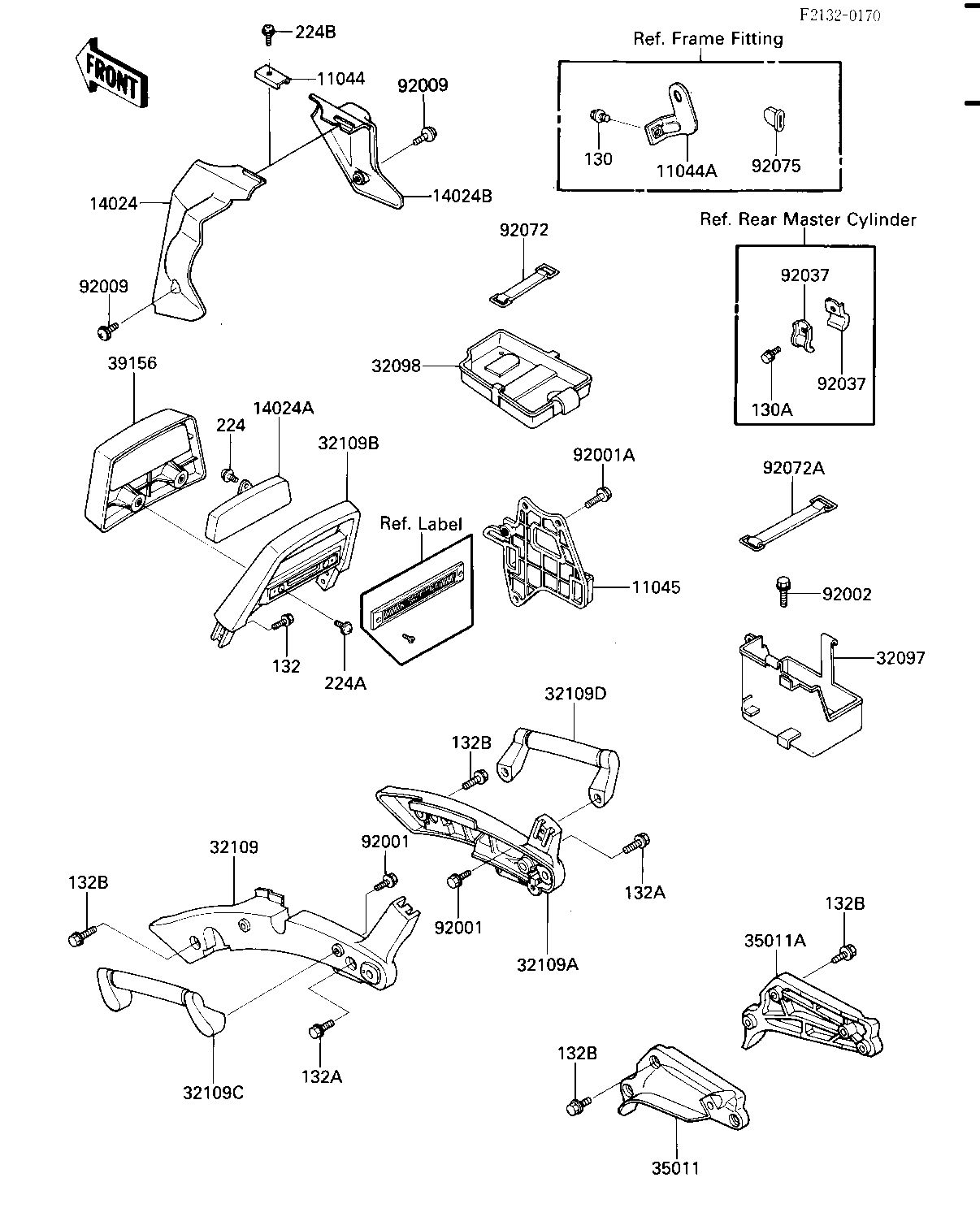

1987 ZL1000 Eliminator - BATTERY CASE/TOOL CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GUSSET COVER 11044 11044-1293 1
BRACKET 11044A 11044-1424 1
BRACKET,ELECTRIC BASE 11045 11045-1152 1
COVER,FUEL TANK,LH 14024 14024-1075 1
COVER 14024A 14024-1361 1
COVER,FUEL TANK,RH 14024B 14024-1364 1
CASE-BATTERY 32097 32097-1128 1
CASE-TOOL 32098 32098-1073 1
GRIP-FRAME,LWR,LH 32109 32109-1143 1
GRIP-FRAME,LWR,RH 32109A 32109-1144 1
GRIP-FRAME,UPP 32109B 32109-1145 1
GRIP-FRAME,LH 32109C 32109-1146 1
GRIP-FRAME,RH 32109D 32109-1147 1
STAY,MUFFLER,LH 35011 35011-1251 1
STAY,MUFFLER,RH 35011A 35011-1252 1
PAD 39156 39156-1066 1
BOLT,FLANGED,6X22 92001 92001-1352 4
BOLT,6X12 92001A 92002-1884 3
BOLT 92002 92002-1351 3
SCREW 92009 92009-1663 2
CLAMP,BRAKE HOSE 92037 92037-1670 2
BAND-SPARK PLUG COVER 92072 92072-053 1
BAND 92072A 92072-1188 1
DAMPER,SIDE COVER 92075 92075-1445 1 CA
BOLT-FLANGED,6X10,BLA 130 130C0610 1
BOLT-FLANGED,6X12 130A 130C0612 1
BOLT-FLANGED-SMALL 132 132E0612 4
BOLT-FLANGED-SMALL 132A 132E0820 2
BOLT-FLANGED-SMALL 132B 132E0825 6
SCREW-PAN-WP-CROS 224 224B0410 3
SCREW-PAN-WP-CROS 224A 224B0620 2
SCREW-PAN-WP-CROS 224B 224C0520 1
