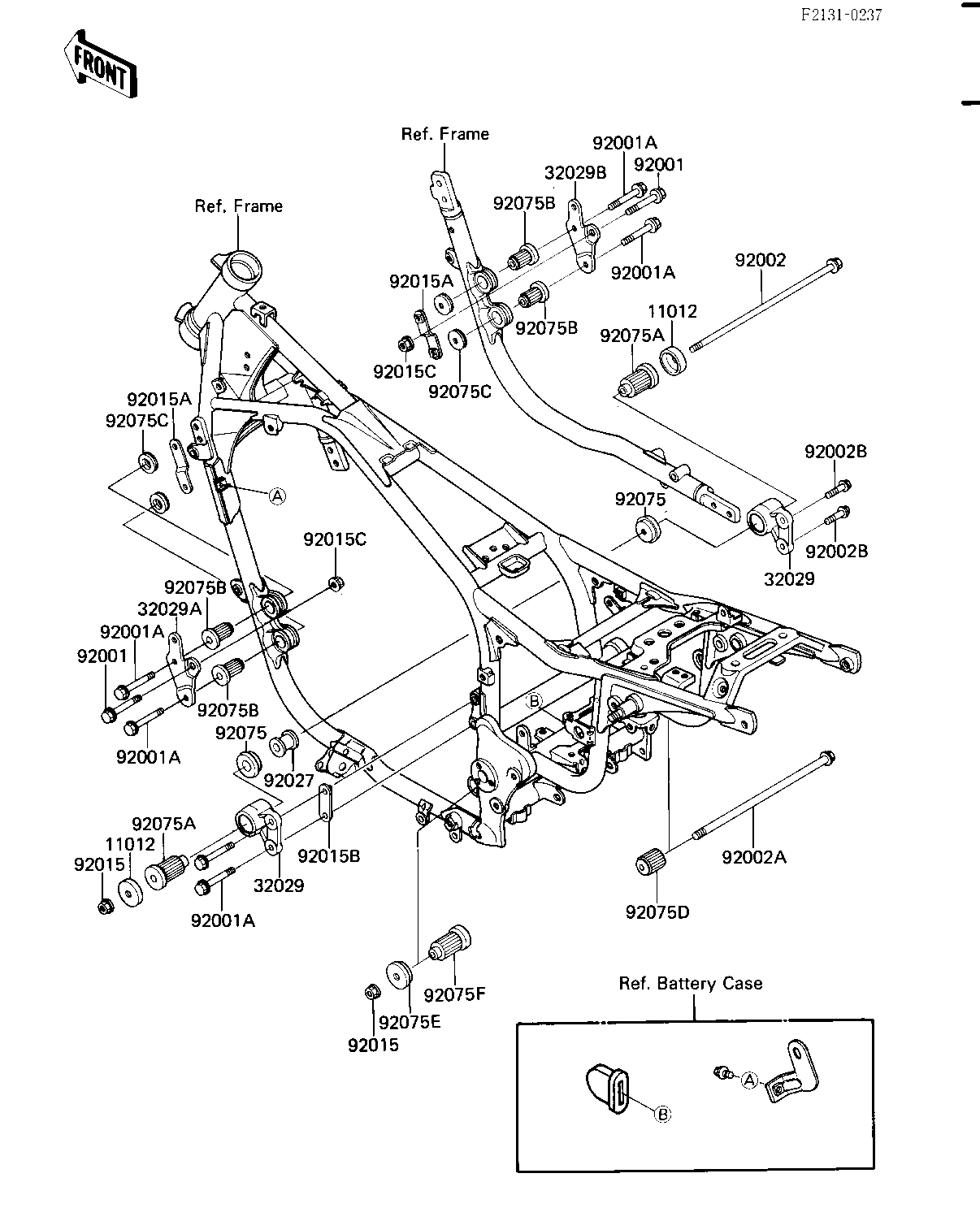

1987 ZL1000 Eliminator - FRAME FITTINGS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,ENGINE BRACKET | 11012 | 11012-1228 | 2 | ||
| BRACKET-ENGINE,RR,UPP | 32029 | 32029-1406 | 2 | ||
| BRACKET-ENGINE,FR,LH | 32029A | 32029-1427 | 1 | ||
| BRACKET-ENGINE,FR,RH | 32029B | 32029-1428 | 1 | ||
| BOLT,BLACK,10X47 | 92001 | 92001-1522 | 2 | ||
| BOLT,FLANGED,8X55,BLA | 92001A | 92001-1641 | 6 | ||
| BOLT | 92002 | 92002-1360 | 1 | ||
| BOLT,FLANGED,10X280 | 92002A | 92002-1530 | 1 | ||
| BOLT,FLANGED,8X30 | 92002B | 92002-1532 | 2 | ||
| NUT,FLANGED,10MM,BLAC | 92015 | 92015-1180 | 2 | ||
| NUT | 92015A | 92015-1517 | 2 | ||
| NUT | 92015B | 92015-1518 | 1 | ||
| NUT,LOCK,10MM | 92015C | 92019-021 | 2 | ||
| COLLAR,L=24.8 | 92027 | 92027-1990 | 1 | ||
| DAMPER | 92075 | 92075-1274 | 2 | ||
| DAMPER,ENGINE BRACKET | 92075A | 92075-1377 | 2 | ||
| DAMPER,ENGINE MOUNT | 92075B | 92075-1730 | 4 | ||
| DAMPER,ENGINE MOUNT | 92075C | 92075-1731 | 4 | ||
| DAMPER,ENGINE MOUNT | 92075D | 92075-1733 | 1 | ||
| DAMPER,ENGINE BRACKET | 92075E | 92075-1738 | 1 | ||
| DAMPER,ENGINE MOUNT,M | 92075F | 92075-1739 | 1 |
| CAP,ENGINE BRACKET | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RR,UPP | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,FR,LH | |
| REF # | 32029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,FR,RH | |
| REF # | 32029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BLACK,10X47 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X55,BLA | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X280 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X30 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM,BLAC | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=24.8 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE BRACKET | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT | |
| REF # | 92075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE BRACKET | |
| REF # | 92075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT,M | |
| REF # | 92075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
