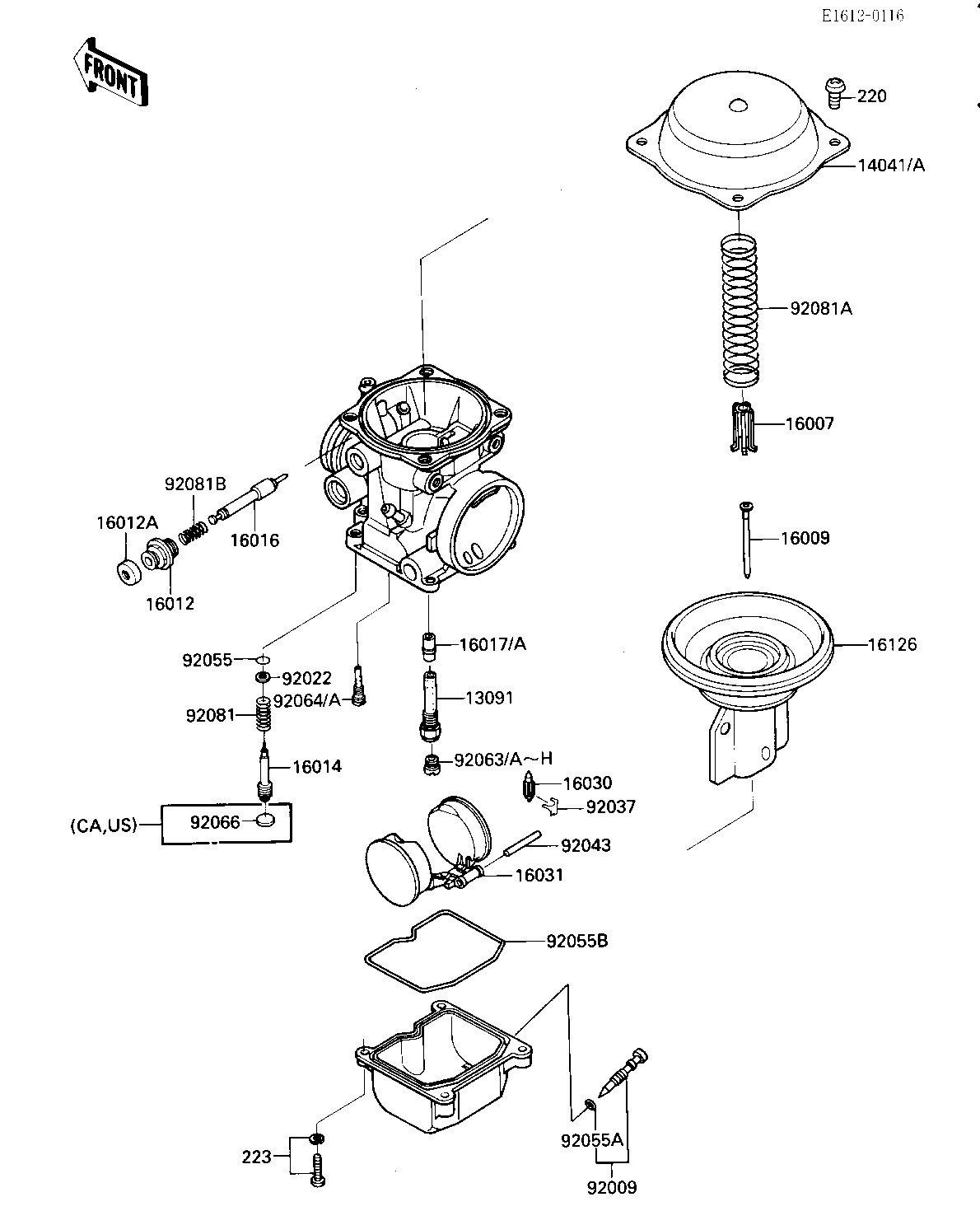

1987 ZL1000 Eliminator - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1463 4
COVER-COMP,MIXING CHA 14041 14041-1061 2
COVER-COMP,MIXING,OUT 14041A 14041-1079 2
SEAT-SPRING,THROTTLE 16007 16007-1117 4
NEEDLE-JET,N36M 16009 16009-1332 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1054 4
PLUNGER,STARTER 16016 16016-1061 4
JET-NEEDLE 16017 16017-1326 4 CA,US
JET-NEEDLE 16017A 16017-1327 4 CN
FLOAT VALVE 16030 16030-1007 4
FLOAT 16031 16031-1056 4
VALVE,VACUUM 16126 16126-1173 4
SCREW,DRAIN 92009 92009-1095 4
WASHER,PLAIN 92022 92022-1003 4
CLIP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1148 4
O RING,PILOT ADJ 92055 92055-1002 4
"O" RING,DRAIN SCREW 92055A 92055-1053 8
RING-O,FLOAT CHAMBER 92055B 92055-1222 4
MAIN JET,#140 92063 92063-1013 4 CA
MAIN JET,#135 92063A 92063-1014 4 CA
MAIN JET,#135 92063B 92063-1014 4 CN,US
MAIN JET,#138 92063C 92063-1015 4 CA
MAIN JET,2ND,#125 92063D 92063-1069 4 CN,US
MAIN JET,2ND,#128 92063E 92063-1074 4 CN,US
MAIN JET,2ND,#130 92063F 92063-1075 4 CN,US
MAIN JET,2ND,#130 92063G 92063-1075 4 CA
JET-MAIN,#132 92063H 92063-1076 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4
JET-PILOT,#32 92064A 92064-1117 4 (OPTION)
PLUG,PILOT SCREW 92066 92066-1051 4 CA,US
SPRING,PIROT ADJ SCRW 92081 92081-1002 4
SPRING,VACUUM VALVE 92081A 92081-1760 4
SPRING,STARTER PLUNGE 92081B 92081-1761 4
SCREW PAN HEAD 4X8 220 220E0408 15
SCREW-PAN-WS-CROS 223 223C0416 16
