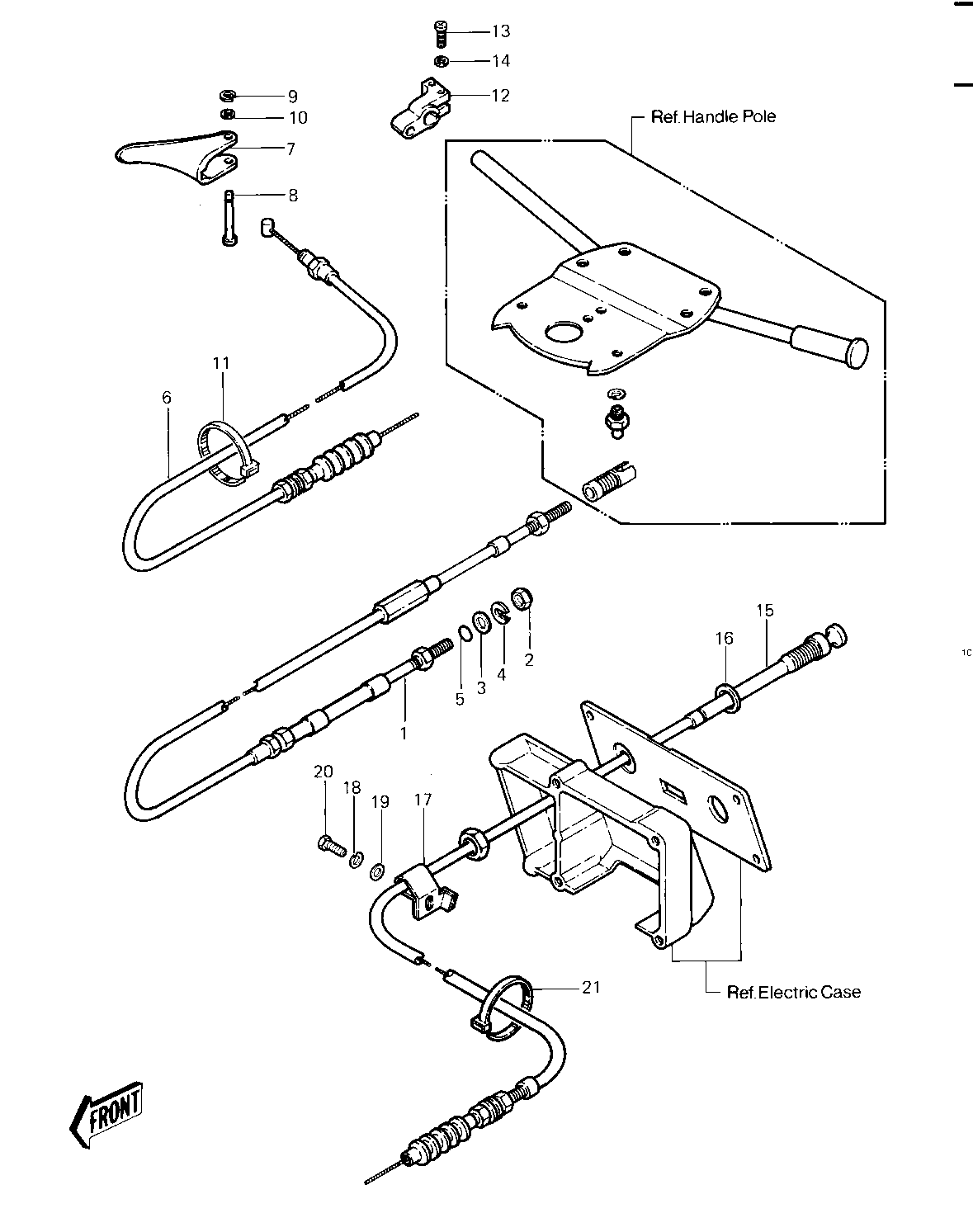

1983 JS440 - CABLES ('82-'83 JS440-A6/A7)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,STEERING | 1 | 59406-3001 | 1 | ||
| NUT 20 M/M | 2 | 92015-526 | 1 | ||
| WASHER | 3 | 92022-535 | 1 | ||
| 'C'RING | 4 | 92036-501 | 1 | ||
| "O" RING | 5 | 670B2011 | 1 | ||
| CABLE,THROTTLE | 6 | 54012-3001 | 1 | ||
| LEVER,THROTTLE | 7 | 59126-509 | 1 | ||
| PIN,THROTTLE | 8 | 92043-3003 | 1 | ||
| RING,SNAP | 9 | 92036-518 | 1 | ||
| WASHER | 10 | 410S0600 | 1 | ||
| BAND,SHORT | 11 | 92072-030 | 1 | ||
| BRACKET,THROTTLE LEV | 12 | 11034-3009 | 1 | ||
| SCREW,PAN HEAD,6X25 | 13 | 220R0625 | 1 | ||
| WASHER | 14 | 410S0600 | 1 | ||
| CABLE,CHOKE | 15 | 59401-3001 | 1 | ||
| GASKET | 16 | 92065-538 | 1 | ||
| CLAMP,CHOKE CABLE | 17 | 92037-544 | 1 | ||
| WASHER-SPRING,6MM | 18 | 461S0600 | 1 | ||
| WASHER | 19 | 411S0600 | 1 | ||
| BOLT 6X12 | 20 | 110R0612 | 1 | ||
| BAND,SHORT | 21 | 92072-030 | 1 |
| CABLE,STEERING | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 20 M/M | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 'C'RING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,THROTTLE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,THROTTLE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,THROTTLE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SNAP | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,THROTTLE LEV | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,6X25 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,CHOKE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CHOKE CABLE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X12 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
