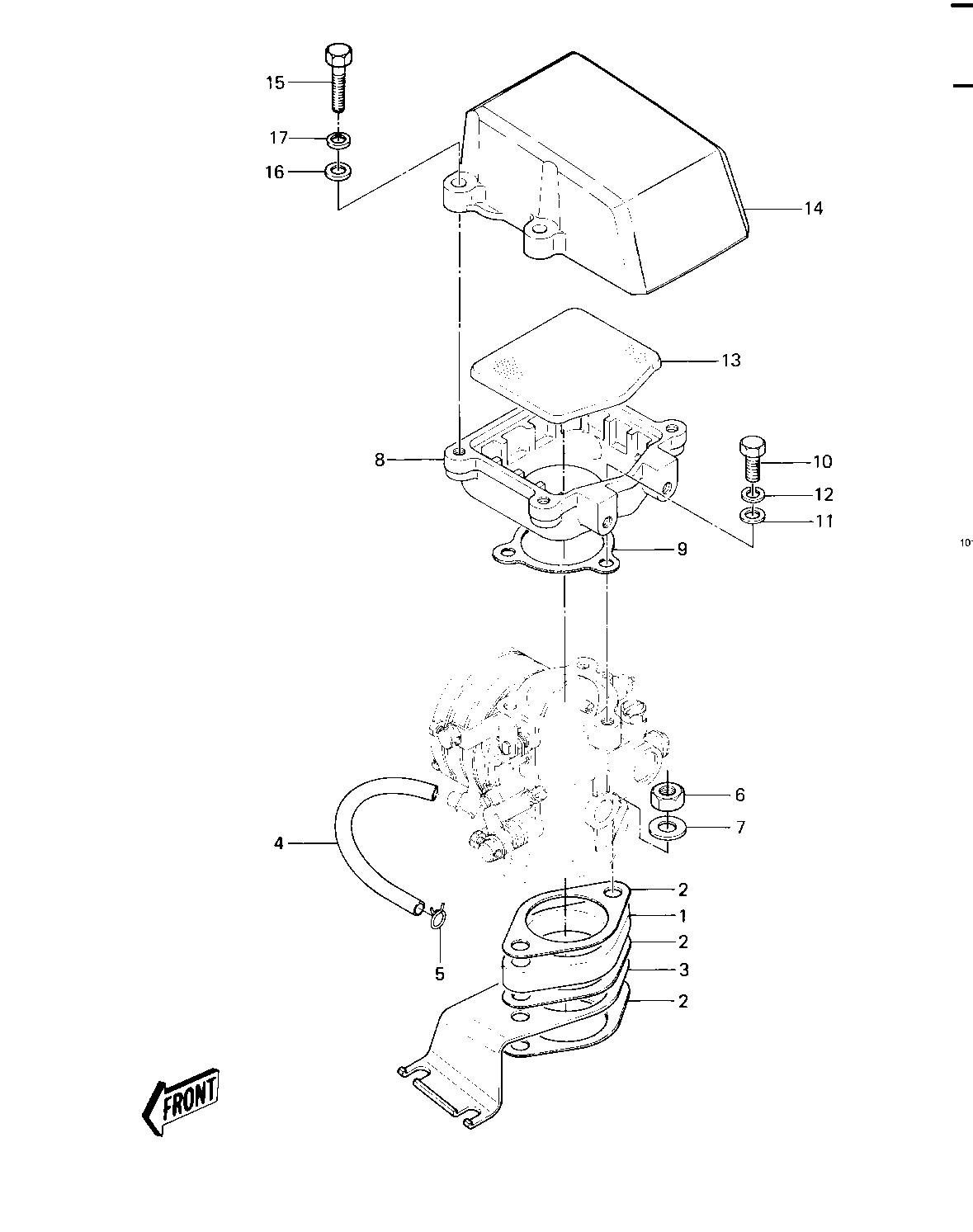

1983 JS440 - CARBURETOR BRACKETS/FLAME ARRESTER ('82-
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| INSULATOR | 1 | 16061-511 | 1 | ||
| GASKET,INSULATOR | 2 | 11009-3786 | 3 | ||
| BRACKET,CONTROL | 3 | 11034-3004 | 1 | ||
| PIPE,PULS | 4 | 92059-518 | 1 | ||
| CLAMP,SPARK PLUG CAP | 5 | 92037-1173 | 1 | ||
| NUT 6M/M | 6 | 312R0600 | 2 | ||
| WASHER | 7 | 410S0800 | 2 | ||
| CASE,FLAME ARRESTER | 8 | 32099-2169 | 1 | ||
| GASKET | 9 | 11060-3702 | 1 | ||
| BOLT-6X18 | 10 | 110R0618 | 3 | ||
| WASHER | 11 | 410S0600 | 3 | ||
| WASHER-SPRING,6MM | 12 | 461S0600 | 3 | ||
| ARRESTER-FLAME | 13 | 59006-3706 | 1 | ||
| COVER-INTAKE | 14 | 59421-3001-YR | 1 | ||
| BOLT,6X30 | 15 | 92001-3022 | 4 | ||
| WASHER | 16 | 410S0600 | 4 | ||
| WASHER-SPRING,6MM | 17 | 461S0600 | 4 |
