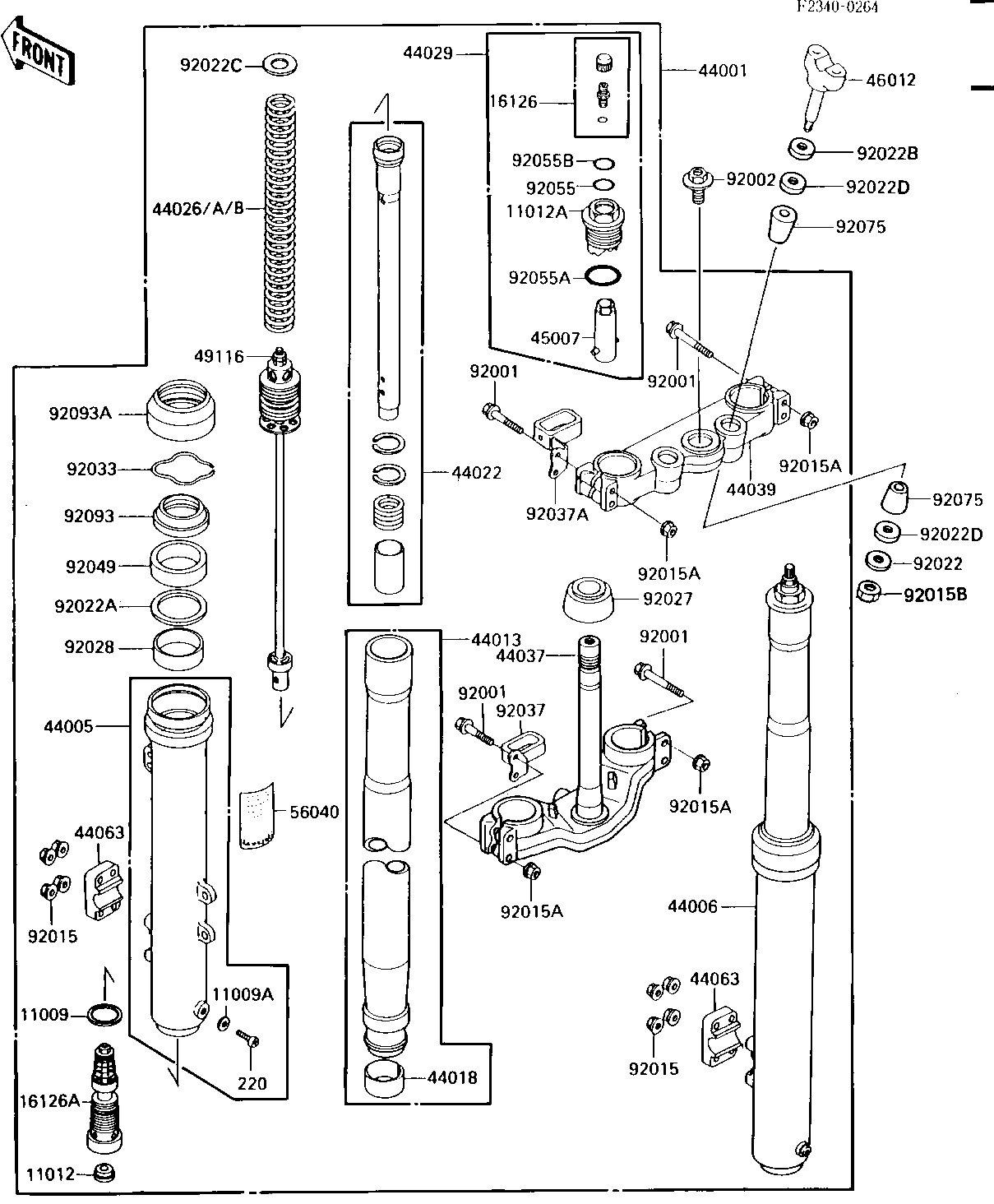

1986 KX250 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1592 2
GASKET FORK DRAIN PL 11009A 44045-002 2
CAP,FORK CYLINDER 11012 11012-1381 2
CAP 11012A 11012-1439 2
VALVE AIR 16126 16126-1052 2
VALVE,FORK CYLINDER 16126A 16126-1155 2
FORK-FRONT 44001 44001-1597 1
PIPE-LEFT FORK OUTER 44005 44005-1244 1
PIPE-RIGHT FORK OUTE 44006 44006-1243 1
PIPE-FORK INNER 44013 44013-1248 2
PISTON-FORK 44018 44018-1005 2
CYLINDER-FORK 44022 44022-1192 2
SPRING-FRONT FORK,K= 44026 44026-1314 2
SPRING-FRONT FORK,K= 44026A 44026-1324 2
SPRING-FRONT FORK,K= 44026B 44026-1325 2
SEAT-FORK SPRING 44029 44029-1117 2
HOLDER-FORK UNDER 44037 44037-1192 1
HOLDER-FORK UPPER 44039 44039-1142 1
HOLDER-FRONT AXLE 44063 44063-1008 2
ADJUSTER-SPRING,FRON 45007 45007-1055 2
HOLDER-HANDLE 46012 46012-1138 2
VALVE-ASSY 49116 49116-1065 2
LABEL,FRONT FORK 56040 56040-1120 1
BOLT 92001 92001-1639 8
BOLT,FORK TOP 92002 92002-1399 1
NUT-6MM 92015 92015-1078 8
NUT,FLANGED,8MM 92015A 92015-1485 8
NUT,LOCK,10MM 92015B 92019-021 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1299 2
WASHER,12.4X28X2.3,B 92022B 92022-1303 2
WASHER,FORK SPRING 92022C 92022-1665 2
WASHER 92022D 92022-1737 4
COLLAR,FRONT FORK 92027 92027-1427 1
BUSHING 92028 92028-1145 2
RING-SNAP 92033 92033-1077 2
CLAMP 92037 92037-1627 1
CLAMP 92037A 92037-1628 1
SEAL-OIL,FORK OUTER 92049 92049-1104 2
"O"RING,FORK TOP CAP 92055 92055-1062 2
RING-O 92055A 92055-1123 2
RING-O 92055B 92055-1288 2
DAMPER 92075 92075-1776 4
SEAL,FORK DUST 92093 92093-1086 2
SEAL,FORK 92093A 92093-1184 2
SCREW PAN HEAD 4X8 220 220B0408 2
