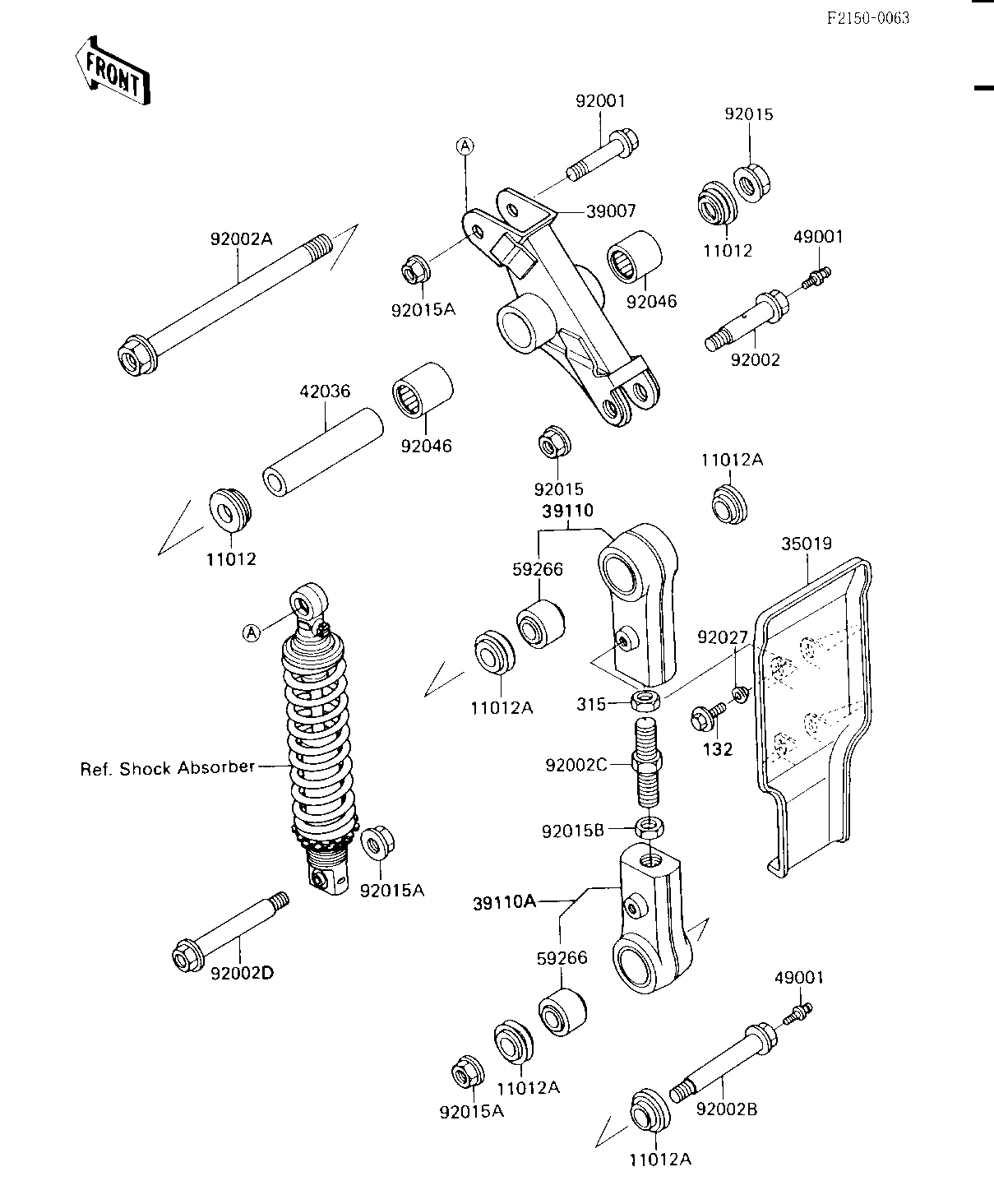

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1207 | 2 | ||
| CAP,ROD | 11012A | 11012-1418 | 4 | ||
| FLAP,ROD | 35019 | 35019-1166 | 1 | ||
| ARM-SUSP,UNI TRAK | 39007 | 39007-1081 | 1 | ||
| ROD-ASSY-TIE | 39110 | 39110-1067 | 1 | ||
| ROD-ASSY-TIE | 39110A | 39110-1068 | 1 | ||
| SLEEVE,SUSPENSION AR | 42036 | 42036-1144 | 1 | ||
| NIPPLE-GREASE,ROD BO | 49001 | 49001-1051 | 2 | ||
| JOINT-BALL,ROD | 59266 | 59266-1056 | 2 | ||
| BOLT,FLANGED,10X48 | 92001 | 92001-1962 | 1 | ||
| BOLT,FLANGED,14X57 | 92002 | 92002-1390 | 1 | ||
| BOLT,14X122 | 92002A | 92002-1396 | 1 | ||
| BOLT,ROD,10X65 | 92002B | 92002-1397 | 1 | ||
| BOLT,ROD | 92002C | 92002-1632 | 1 | ||
| BOLT,10MM | 92002D | 92002-1680 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 2 | ||
| NUT,10MM | 92015A | 92015-1415 | 3 | ||
| NUT,16MM | 92015B | 92015-1548 | 1 | ||
| COLLAR,FRONT FENDER | 92027 | 92027-1936 | 4 | ||
| BEARING-NEEDLE,TA203 | 92046 | 92046-1128 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 4 | ||
| NUT-HEX-FINE | 315 | 315G1600 | 1 |
| CAP,SWING ARM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,ROD | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FLAP,ROD | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,UNI TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-TIE | |
| REF # | 39110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-TIE | |
| REF # | 39110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SUSPENSION AR | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-GREASE,ROD BO | |
| REF # | 49001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL,ROD | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X48 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,14X57 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,14X122 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ROD,10X65 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ROD | |
| REF # | 92002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10MM | |
| REF # | 92002D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,16MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT FENDER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,TA203 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE | |
| REF # | 315 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
