Parts Diagrams |

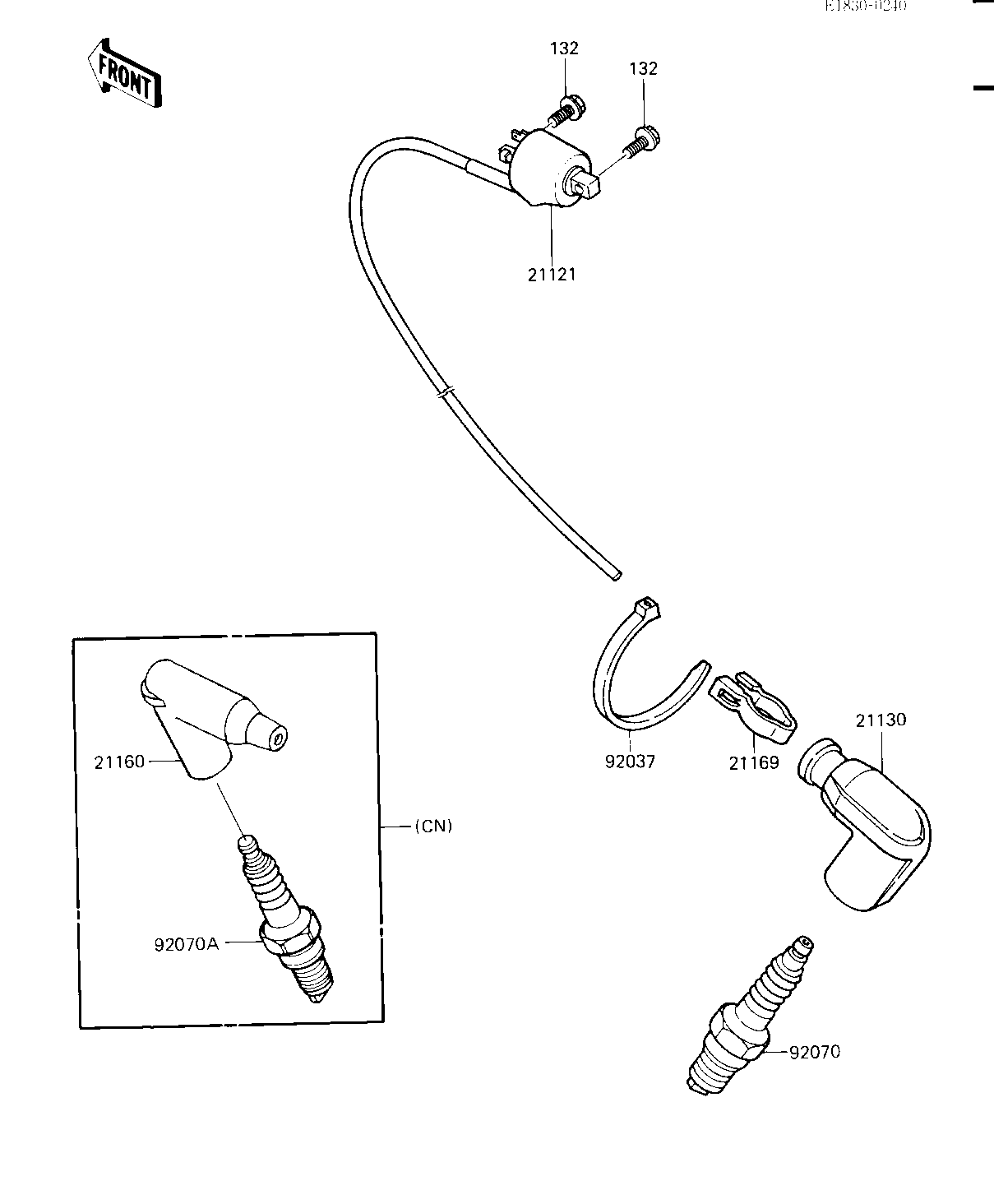

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL-IGNITION | 21121 | 21121-1170 | 1 | ||
| CAP,SPARK PLUG | 21130 | 21130-1006 | 1 | US | |
| CAP ASSY,SPARK PLUG | 21160 | 21160-1009 | 1 | CN | |
| TERMINAL,PLUG CAP | 21169 | 21169-001 | 1 | US | |
| CLAMP,SPARK PLUG CAP | 92037 | 92037-1173 | 1 | US | |
| SPARK PLUG B9EG | 92070 | B9EG | 1 | US | |
| *** N.L.A.*** (Canada) | 92070A | 92070-1063 | 1 | CN | |
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CAP ASSY,SPARK PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| TERMINAL,PLUG CAP | |
| REF # | 21169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CLAMP,SPARK PLUG CAP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SPARK PLUG B9EG | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| *** N.L.A.*** (Canada) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
