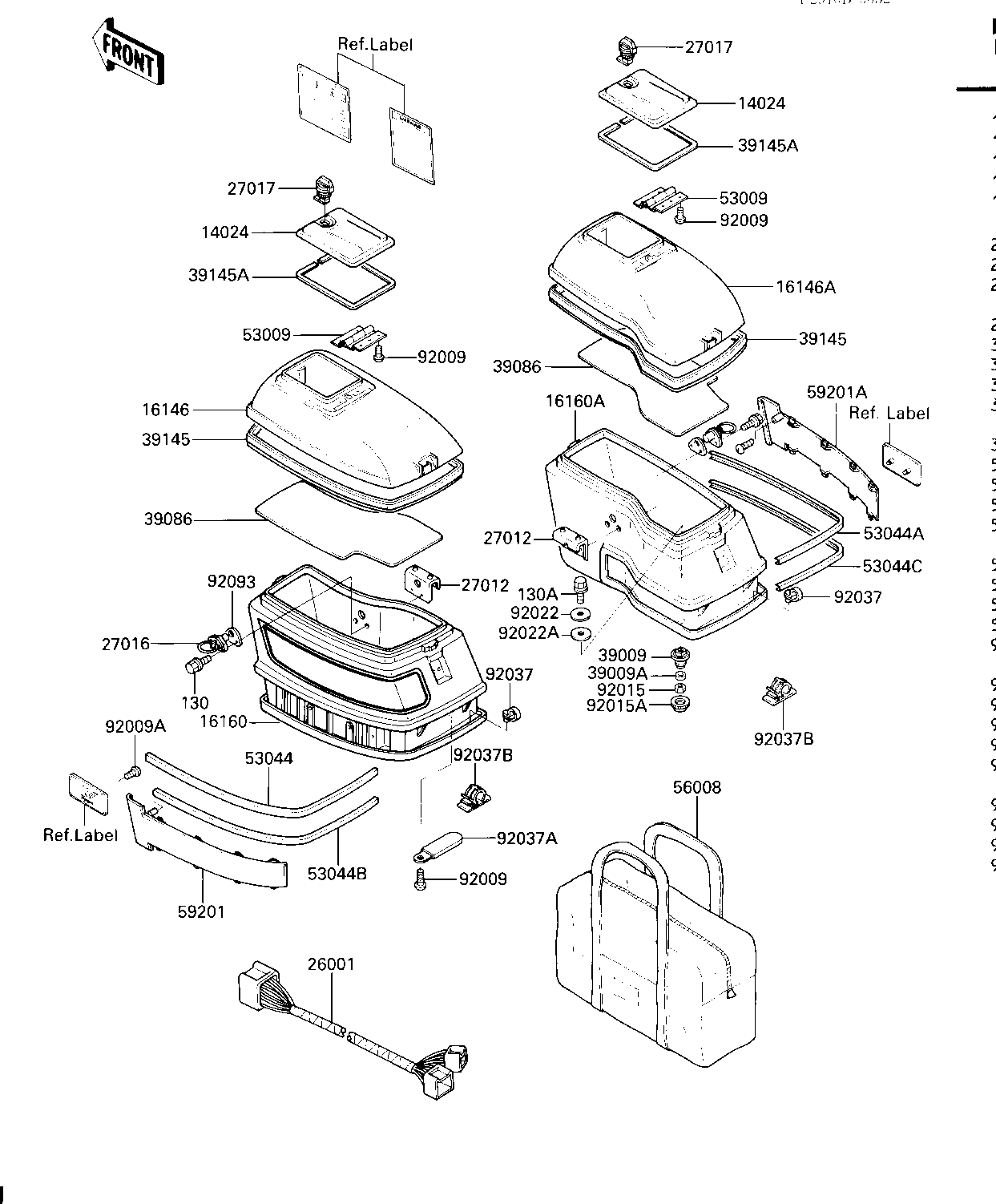

1986 Voyager XII - SADDLEBAGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE BAG 14024 14024-1178 2
COVER-ASSY,SIDE BAG,L 16146 16146-1063-P5 1
COVER-ASSY,SIDE BAG,R 16146A 16146-1064-P5 1
BODY,SIDE BAG,LH,RED/ 16160 16160-5014-V4 1
BODY,SIDE BAG,RH,RED/ 16160A 16160-5015-V4 1
HARNESS,SIDE BAG 26001 26001-1757 2
HOOK,SIDE BAG 27012 27012-1339 2
LOCK-ASSY,BAG 27016 27016-1054 2
LOCK,BAG 27017 27017-1126 2
BLOCK-MOUNT,BAG 39009 39009-1051 4
BLOCK-MOUNT,BAG 39009A 39009-1052 4
PAD-STORAGE,BAG 39086 39086-1052 2
TRIM-SEAL,SIDE BAG 39145 39145-1068 2
TRIM-SEAL,SIDE BAG 39145A 39145-1071 2
HINGE,SIDE BAG 53009 53009-1062 2
TRIM,SIDE BAG,LH 53044 53044-1143 1
TRIM,SIDE BAG,RH 53044A 53044-1144 1
TRIM,SIDE BAG,LH 53044B 53044-1145 1
TRIM,SIDE BAG,RH 53044C 53044-1146 1
BAG 56008 56008-1055 2
BUMPER,LH 59201 59201-1051 1
BUMPER,RH 59201A 59201-1052 1
SCREW,TAPPING,4X10 92009 92009-1040 14
SCREW 92009A 92009-1429 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 4
NUT 92015A 92015-1628 4
WASHER,7X28X1.6,BLACK 92022 92022-1392 4
WASHER,5X28X1 92022A 92022-1813 4
CLAMP 92037 92037-1290 2
CLAMP,HARNESS 92037A 92037-1726 4
CLAMP 92037B 92037-1793 2
SEAL,LOCK 92093 92093-1209 2
BOLT-FLANGED,6X16 130 130C0616 4
BOLT-FLANGED 130A 130C0630 4
