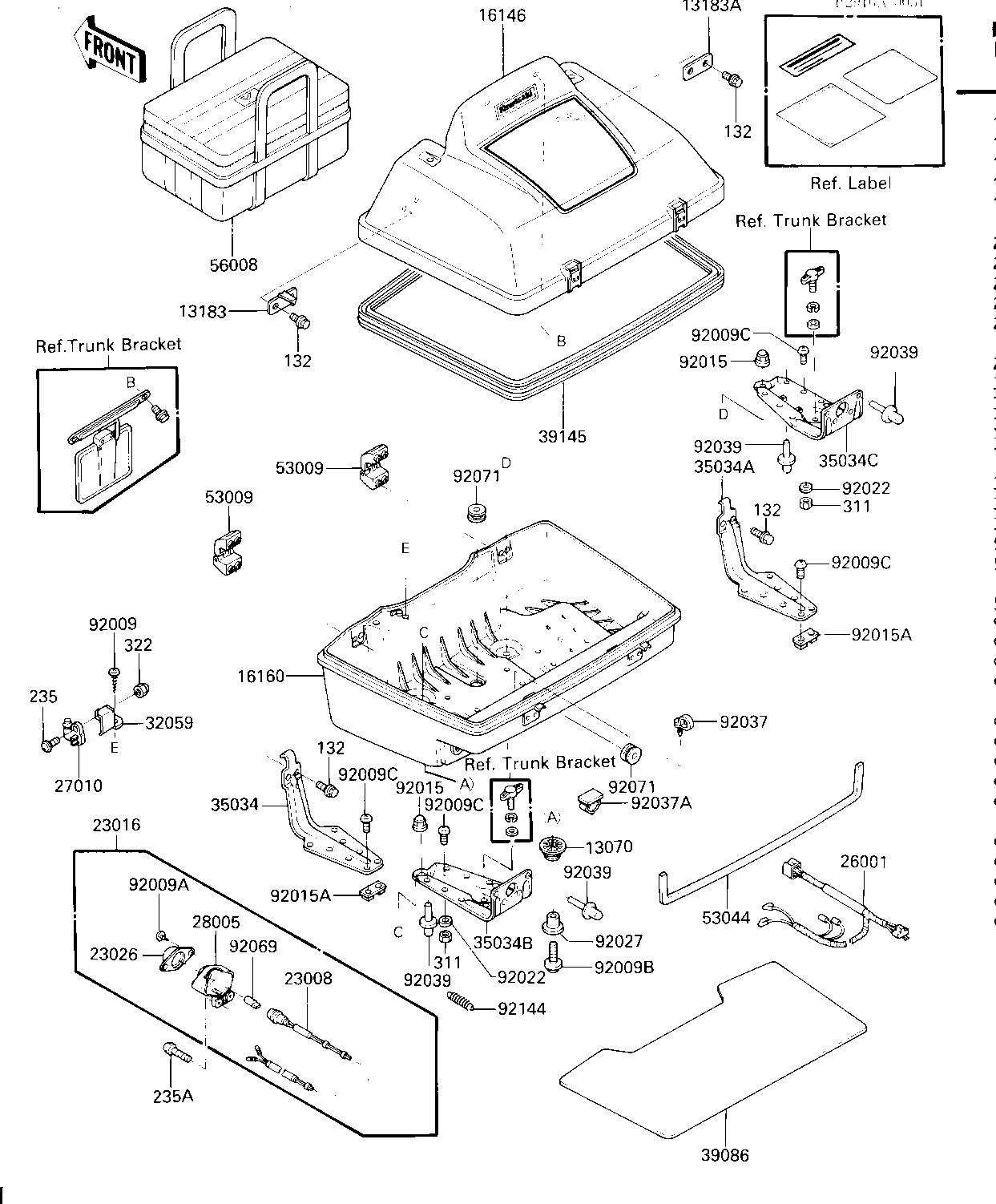

1986 Voyager XII - TRUNK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-1149 2
PLATE,HINGE,LH 13183 13169-1635 1
PLATE,HINGE,RH 13183A 13169-1636 1
COVER-ASSY,TRUNK,RED/ 16146 16146-5009-V4 1
BODY,TRUNK,L.V.RED 16160 16160-1106-P5 1
SOCKET-ASSY,TRUNK ROO 23008 23008-1295 1
LAMP-ASSY,TRUNK ROOM 23016 23016-1066 1
LENS,LICENSE PLATE LA 23026 23026-1054 1
HARNESS,TRUNK 26001 26001-1758 1
SWITCH,BRAKE 27010 27010-1185 1
BODY-LAMP,TRUNK ROOM 28005 28005-1054 1
BRACKET-SWITCH 32059 32059-1067 1
REINFORCE 35034 35034-1197 1
REINFORCE 35034A 35034-1198 1
REINFORCE 35034B 35034-1200 1
REINFORCE 35034C 35034-1201 1
PAD-STORAGE,TRUNK 39086 39086-1051 1
TRIM-SEAL,TRUNK 39145 39145-1069 1
HINGE,TRUNK 53009 53009-1071 2
TRIM,TAIL LAMP 53044 53044-1142 1
BAG 56008 56008-1060 1
SCREW,TAPPING,5X10 92009 92009-1332 1
SCREW,TAPPING,4X12 92009A 92009-1381 2
SCREW,6X22 92009B 92009-1400 2
SCREW 92009C 92009-1448 28
NUT,LOCK 6MM 92015 92015-1262 2
NUT 92015A 92015-1620 6
WASHER 92022 92022-1830 16
COLLAR 92027 92027-195 2
CLAMP 92037 92037-1290 2
CLAMP 92037A 92037-1793 1
RIVET 92039 92039-1150 16
BULB,12V 3CP 92069 92069-1066 1
GROMMET 92071 92071-1136 2
SPRING,HARNESS GUIDE 92144 92081-1954 1
BOLT-FLANGED-SMALL 132 132J0510 8
SCREW-PAN-WP-CROS 235 235C0414 1
SCREW-PAN-WP-CROS 235A 235C0430 2
NUT-HEX 311 311C0400 12
NUT-CAP,4MM 322 322C0400 1
