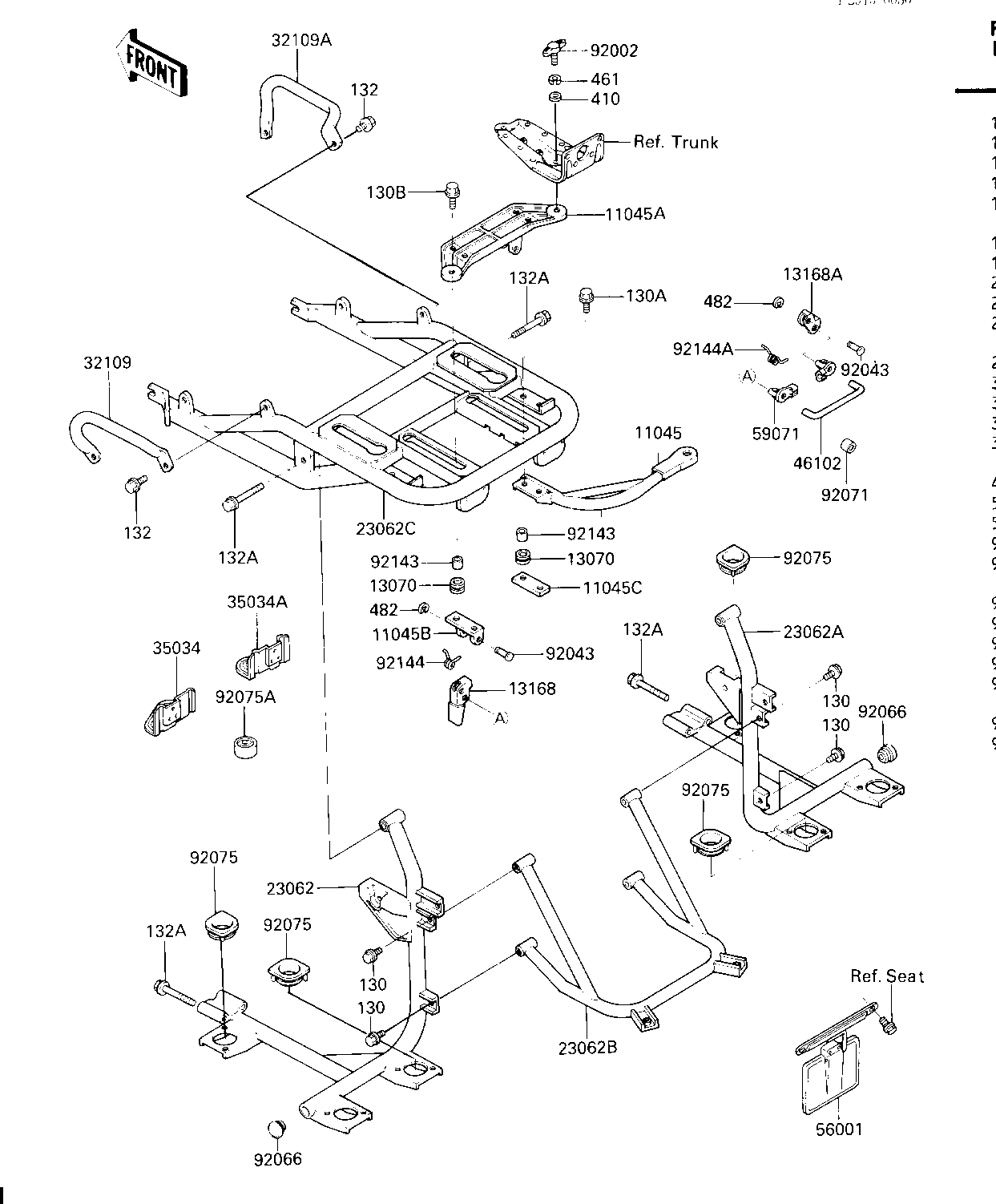

1986 Voyager XII - TRUNK BRACKET

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ANTENNA 11045 11044-1636 1
BRACKET,TRUNK 11045A 11044-1637 1
BRACKET,TRUNK,LH 11045B 11044-1676 1
BRACKET,TRUNK,RH 11045C 11044-1677 1
GUIDE 13070 13070-1151 4
LEVER 13168 13168-1307 1
LEVER 13168A 13168-1329 1
BRACKET-COMP,LH 23062 23062-1060 1
BRACKET-COMP,RH 23062A 23062-1061 1
BRACKET-COMP,TAIL 23062B 23062-1062 1
BRACKET-COMP,CNT 23062C 23062-1066 1
GRIP-FRAME,LH 32109 32109-1137 1
GRIP-FRAME,RH 32109A 32109-1138 1
REINFORCE 35034 35034-1194 1
REINFORCE 35034A 35034-1195 1
ROD 46102 46102-1182 1
MIRROR-ASSY,VANITY 56001 56001-1268 1
JOINT 59071 59071-1103 2
BOLT,WING,8MM 92002 92002-1672 2
PIN,6X28 92043 92043-1308 2
PLUG 92066 92066-1220 4
GROMMET,ANTENNA LEAD 92071 92071-1057 1
DAMPER 92075 92075-1840 6
DAMPER 92075A 92075-1844 1
COLLAR,6.8X10X9.5 92143 92027-1983 4
SPRING,RETURN 92144 92081-1967 1
SPRING 92144A 92144-1045 1
BOLT 130 130B0614 4
BOLT-FLANGED,6X10,BLA 130A 130C0610 2
BOLT-FLANGED,6X20 130B 130C0620 4
BOLT-FLANGED-SMALL,8X 132 132E0816 4
BOLT-FLANGED-SMALL,8X 132A 132E0855 6
WASHER,PLAIN,8MM 410 92022-1554 2
WASHER-SPRING,8MM,BLA 461 461K0800 2
CIRCLIP-TYPE-E 482 482L4000 2
