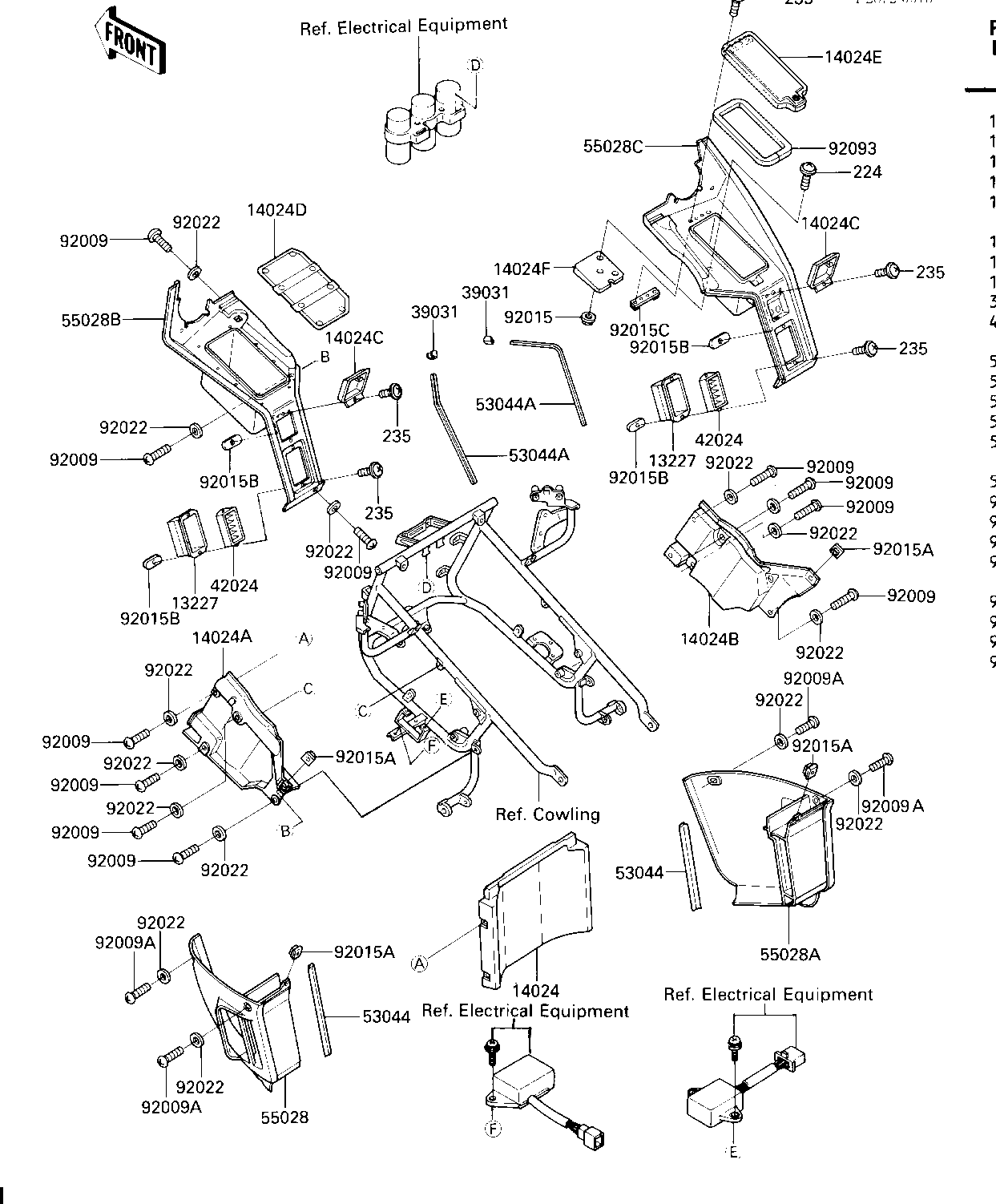

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOUSING,SHUTTER | 13227 | 13227-1012 | 2 | ||
| COVER,COWLING,INNER,F | 14024 | 14024-1183 | 1 | ||
| COVER,COWLING,INNER,L | 14024A | 14024-1184 | 1 | ||
| COVER,COWLING,INNER,R | 14024B | 14024-1185 | 1 | ||
| COVER,TRANSCEIVER | 14024C | 14024-1191 | 2 | ||
| COVER,FAIRING POCKET, | 14024D | 14024-1199 | 1 | ||
| COVER,FAIRING POCKET, | 14024E | 14024-1200 | 1 | ||
| COVER,AMPLIFIER | 14024F | 14024-1304 | 1 | ||
| CAP-END | 39031 | 39031-1058 | 2 | ||
| SHUTTER,LOUVER | 42024 | 42024-1002 | 2 | ||
| TRIM,COWLING,LWR | 53044 | 53044-1159 | 2 | ||
| TRIM,INNER COWLING | 53044A | 53044-1161 | 2 | ||
| COWLING,LWR,LH,L.V.RE | 55028 | 55028-1106-P5 | 1 | ||
| COWLING,LWR,RH,L.V.RE | 55028A | 55028-1107-P5 | 1 | ||
| COWLING,INNER,LH | 55028B | 55028-1108 | 1 | ||
| COWLING,INNER,RH | 55028C | 55028-1109 | 1 | ||
| SCREW | 92009 | 92009-1445 | 14 | ||
| SCREW | 92009A | 92009-1445 | 8 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
| NUT | 92015A | 92015-1710 | 8 | ||
| NUT,4MM | 92015B | 92015-1598 | 6 | ||
| NUT,BRACKET,4MM | 92015C | 92015-1599 | 1 | ||
| WASHER,NYLON,5.3X11.5 | 92022 | 92022-1521 | 22 | ||
| SEAL,FAIRING POCKET | 92093 | 92093-1211 | 1 | ||
| SCREW-PAN-WP-CROS | 224 | 224B0514 | 1 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0412 | 8 |
| HOUSING,SHUTTER | |
| REF # | 13227 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,F | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,L | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,R | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRANSCEIVER | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,FAIRING POCKET, | |
| REF # | 14024D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FAIRING POCKET, | |
| REF # | 14024E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AMPLIFIER | |
| REF # | 14024F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-END | |
| REF # | 39031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHUTTER,LOUVER | |
| REF # | 42024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TRIM,COWLING,LWR | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TRIM,INNER COWLING | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,L.V.RE | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,L.V.RE | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,LH | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,RH | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,BRACKET,4MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| SEAL,FAIRING POCKET | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 235 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
