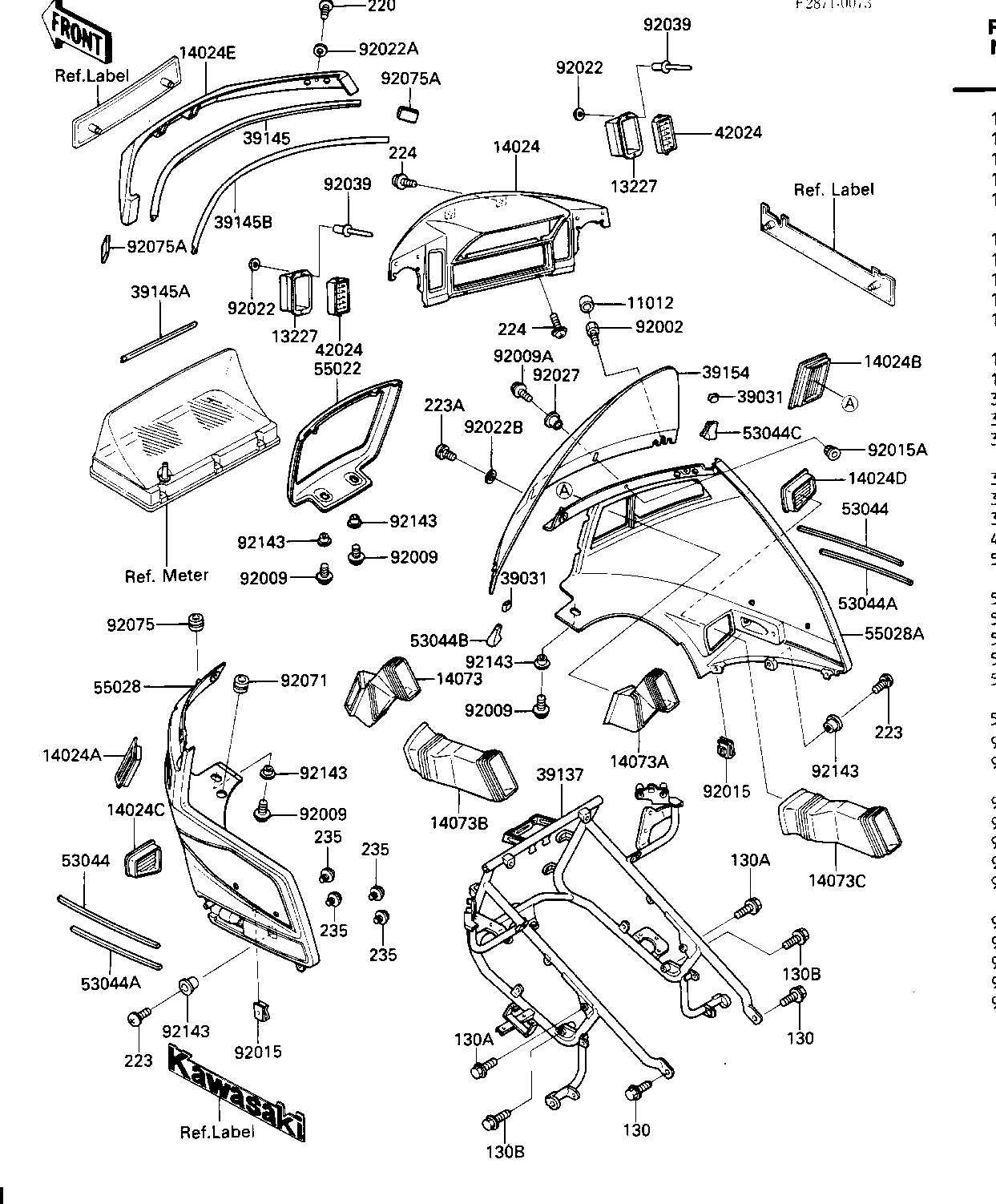

1986 Voyager XII - FAIRING

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1550 2
HOUSING,SHUTTER 13227 13227-1012 2
COVER,METER 14024 14024-1186 1
COVER,LOUVER,UPP,LH 14024A 14024-1192 1
COVER,LOUVER,UPP,RH 14024B 14024-1193 1
COVER,LOUVER,LWR,LH 14024C 14024-1194 1
COVER,LOUVER,LWR,RH 14024D 14024-1195 1
COVER,WINDSHIELD 14024E 14024-1280 1
DUCT,COWLING,UPP,LH 14073 14073-1245 1
DUCT,COWLING,UPP,RH 14073A 14073-1246 1
DUCT,COWLING,LWR,LH 14073B 14073-1247 1
DUCT,COWLING,LWR,RH 14073C 14073-1248 1
CAP-END 39031 39031-1058 2
STAY-COMP,COWLING 39137 39137-1057 1
TRIM-SEAL,WINDSHIELD 39145 39145-1072 1
TRIM-SEAL 39145A 39145-1081 1
TRIM-SEAL,METER COVER 39145B 39145-1082 1
WINDSHIELD 39154 39154-1101 1
SHUTTER,LOUVER 42024 42024-1002 2
TRIM,COWLING SIDE,UPP 53044 53044-1150 2
TRIM,COWLING SIDE,LWR 53044A 53044-1151 2
TRIM,WINDSHIELD,LH 53044B 53044-1181 1
TRIM,WINDSHIELD,RH 53044C 53044-1182 1
COVER-HEAD LAMP,L.V.R 55022 55022-1054-P5 1
COWLING,UPP,LH,RED/RE 55028 55028-5255-V7 1
COWLING,UPP,RH,RED/RE 55028A 55028-5256-V7 1
BOLT 92002 92002-1830 2
SCREW,6X14 92009 92009-1288 4
SCREW,5X14 92009A 92009-1427 2
NUT 92015 92015-1710 4
NUT,FENDER 92015A 92015-1345 2
WASHER,3.3X8X0.5 92022 92022-1516 4
WASHER,5.3X10X0.8 92022A 92022-1653 2
WASHER,6.5MM 92022B 92022-1808 2
COLLAR 92027 92027-194 4
RIVET 92039 92039-1041 4
GROMMET,AIR FILTER 92071 92071-1042 1
DAMPER 92075 92075-1629 2
DAMPER 92075A 92075-1883 2
COLLAR,L=6.5 92143 92143-1025 6
BOLT-FLANGED 130 130D0812 2
BOLT-FLANGED,8X35 130A 130D0835 2
BOLT-FLANGED,8X50 130B 130D0850 2
SCREW PAN HEAD 5X10 220 220B0510 2
SCREW-PAN-WS-CROS 223 223C0616 2
SCREW-PAN-WS-CROS,6X2 223A 223C0625 2
SCREW-PAN-WP-CROS 224 224C0510 4
SCREW-PAN-WP-CROS 235 235B0408 8
