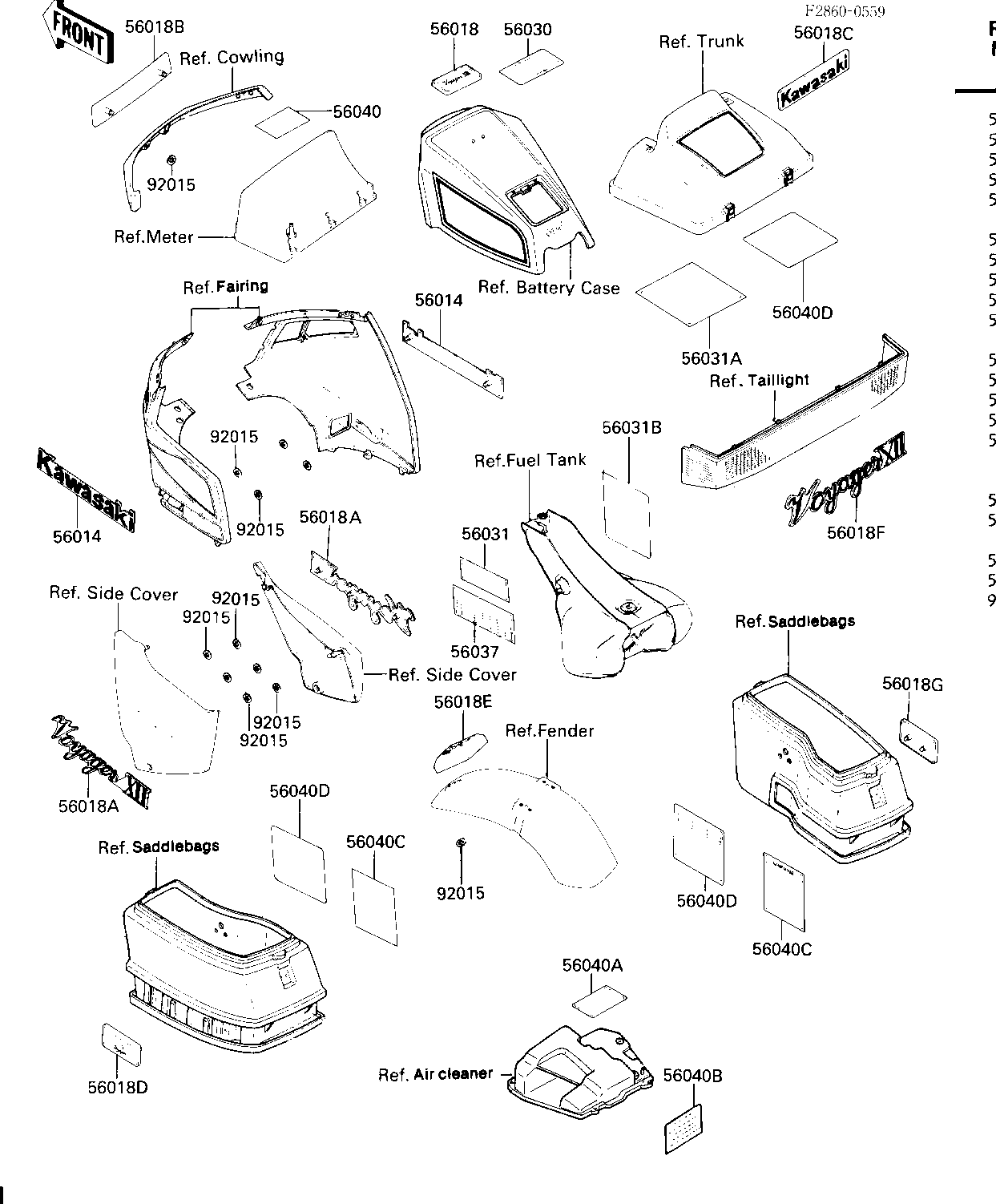

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,COWLING,KAWASA | 56014 | 56014-1133 | 2 | ||
| MARK,DUMMY TANK COVER | 56018 | 56018-1856 | 1 | ||
| MARK,SIDE COVER | 56018A | 56018-1857 | 2 | ||
| MARK,WINDSHIELD COVER | 56018B | 56018-1858 | 1 | ||
| MARK,TRUNK COVER,KAWA | 56018C | 56018-1859 | 1 | ||
| MARK,SIDE BAG | 56018D | 56018-1860 | 1 | ||
| MARK,FRONT FENDER | 56018E | 56018-1861 | 1 | ||
| MARK,TAIL LAMP | 56018F | 56018-1862 | 1 | ||
| MARK | 56018G | 56018-1882 | 1 | ||
| LABEL,RIDING & SAFETY | 56030 | 56030-1087 | 1 | ||
| LABEL-MANUAL,OIL & OI | 56031 | 56031-1465 | 1 | ||
| LABEL-MANUAL,DAILY SA | 56031A | 56031-1466 | 1 | ||
| LABEL-MANUAL,BATTERY | 56031B | 56031-1467 | 1 | ||
| LABEL-SPECIFICATION,T | 56037 | 56037-1345 | 1 | ||
| LABEL,BRAKE-IN | 56040 | 56040-1007 | 1 | CA,US | |
| LABEL,AIR INTAKE | 56040A | 56040-1014 | 1 | ||
| LABEL-WARNING,EVAPO | 56040B | 56040-1170 | 1 | CA | |
| LABEL-WARNING | 56040C | 56040-1171 | 2 | ||
| LABEL-WARNING,MAXIMUM | 56040D | 56040-1202 | 3 | ||
| NUT,LOCK,3MM | 92015 | 92018-005 | 14 |
