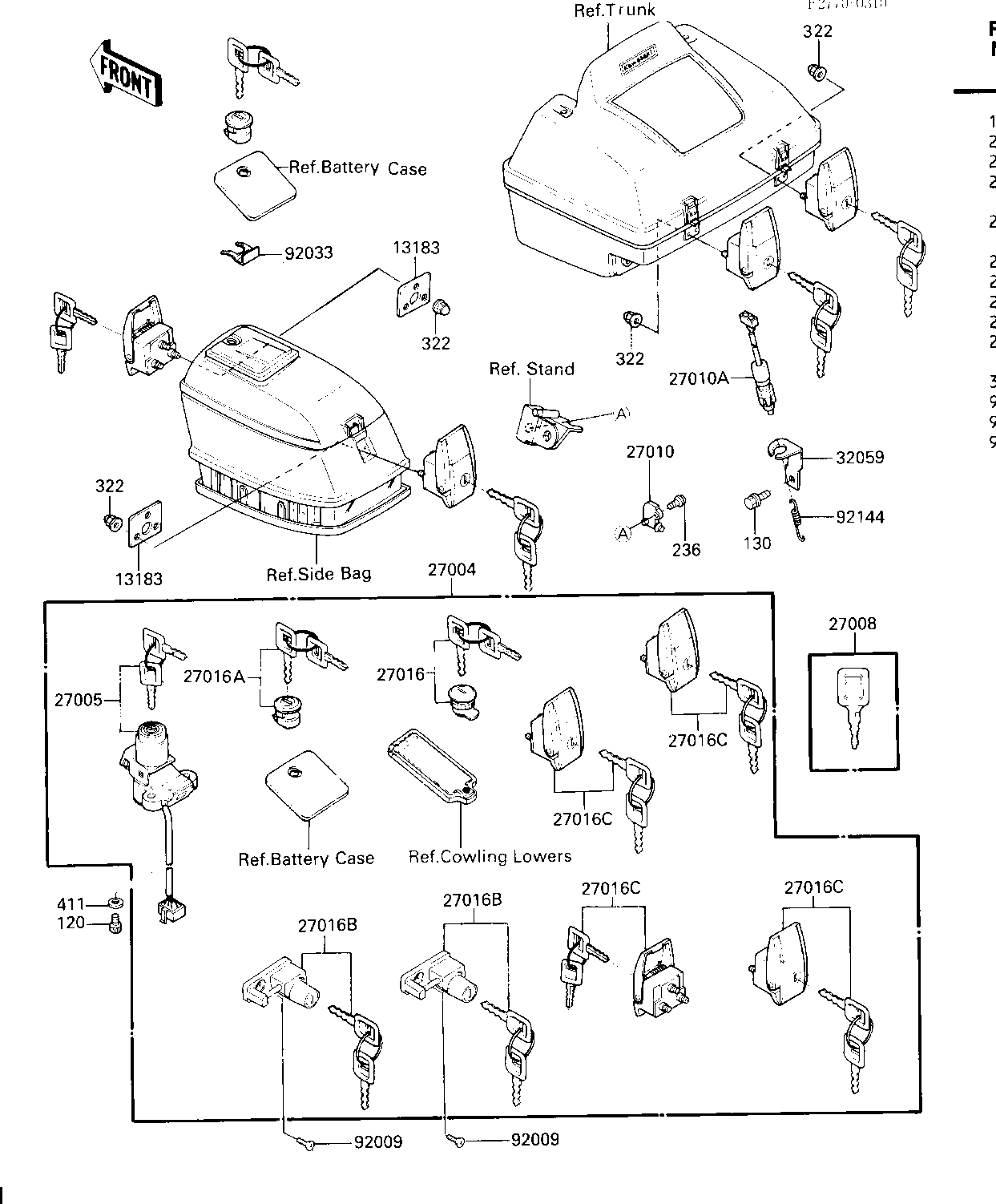

1986 Voyager XII - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,BAG | 13183 | 13169-1641 | 4 | ||
| SWITCH-ASSY | 27004 | 27004-5278 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5063 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,BRAKE | 27010 | 27010-1185 | 1 | ||
| SWITCH,REAR BRAKE | 27010A | 27010-1200 | 1 | ||
| LOCK-ASSY | 27016 | 27016-5062 | 1 | ||
| LOCK-ASSY,TANK CAP CO | 27016A | 27016-5106 | 1 | ||
| LOCK-ASSY,HELMET | 27016B | 27016-5107 | 2 | ||
| LOCK-ASSY,BAG | 27016C | 27016-5108 | 6 | ||
| BRACKET-SWITCH,REAR B | 32059 | 32059-1068 | 1 | ||
| SCREW | 92009 | 92009-1401 | 2 | ||
| RING-SNAP,COWLING POC | 92033 | 92033-1095 | 1 | ||
| SPRING,REAR BRAKE | 92144 | 92144-1015 | 1 | ||
| BOLT-SOCKET | 120 | 120T0616 | 2 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 1 | ||
| SCREW-PAN-WSP-CROS | 236 | 236B0416 | 1 | ||
| NUT-CAP,4MM | 322 | 322C0400 | 18 | ||
| WASHER PLAIN 6MM | 411 | 410B0600 | 2 |
| PLATE,BAG | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 27005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 27008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SWITCH,BRAKE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,REAR BRAKE | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,TANK CAP CO | |
| REF # | 27016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,HELMET | |
| REF # | 27016B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,BAG | |
| REF # | 27016C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SWITCH,REAR B | |
| REF # | 32059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,COWLING POC | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,REAR BRAKE | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-CAP,4MM | |
| REF # | 322 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
