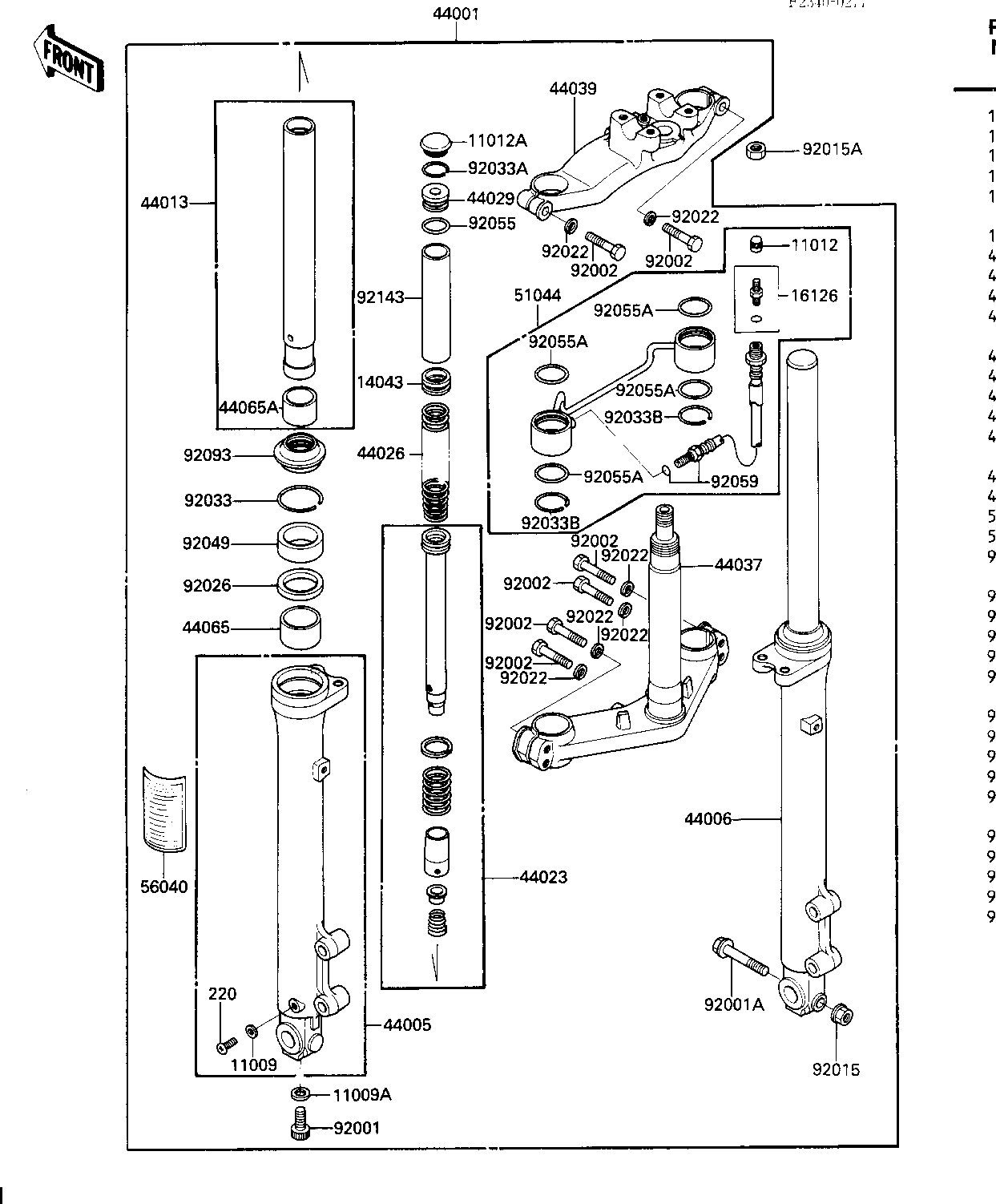

1986 Voyager XII - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLG 11009 44045-046 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,AIR VALVE 11012 11012-1552 1
CAP,FORK TOP 11012A 11012-1561 2
FILTER,FORK 14043 14043-1064 2
VALVE,AIR 16126 16126-1105 1
FORK-FRONT 44001 44001-1612 1
PIPE-LEFT FORK OUTER 44005 44005-1250 1
PIPE-RIGHT FORK OUTER 44006 44006-1249 1
PIPE-FORK INNER 44013 44013-1253 2
CYLINDER-COMP-FORK 44023 44023-1054 2
SPRING-FRONT FORK 44026 44026-1338 2
SEAT-FORK SPRING 44029 44029-1125 2
HOLDER-FORK UNDER 44037 44037-1194 1
HOLDER-FORK UPPER 44039 44039-1132 1
BUSHING-FRONT FORK 44065 44065-1079 2
BUSHING-FRONT FORK,IN 44065A 44065-1080 2
TUBE-ASSY,FORK,AIR 51044 51044-1082 1
LABEL-WARNING,AIR SUS 56040 56040-1054 2
BOLT,FORK DRAIN 92001 92001-1464 2
BOLT,FLANGED,8X50 92001A 92001-1486 1
BOLT 92002 92002-1603 6
NUT,8MM 92015 92015-1055 1
NUT,MAIN STAND FITT 92015A 92016-044 1
WASHER,SPRING,8MM 92022 92022-1703 6
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP,FORK OUTER 92033 92033-1222 2
RING-SNAP,SPRING SEAT 92033A 92033-1223 2
RING-SNAP,AIR TUBE 92033B 92033-1224 2
SEAL-OIL,FORK OUTER 92049 92049-1272 2
RING-O,SPRING SEAT 92055 92055-1363 2
RING-O,FORK,AIR TUBE 92055A 92055-1364 4
TUBE,FORK,AIR 92059 92059-1745 1
SEAL,FORK OUTER TUBE 92093 92093-1231 2
COLLAR,FORK SPRING 92143 92143-1053 2
SCREW PAN HEAD 4X6 220 220B0406 2
