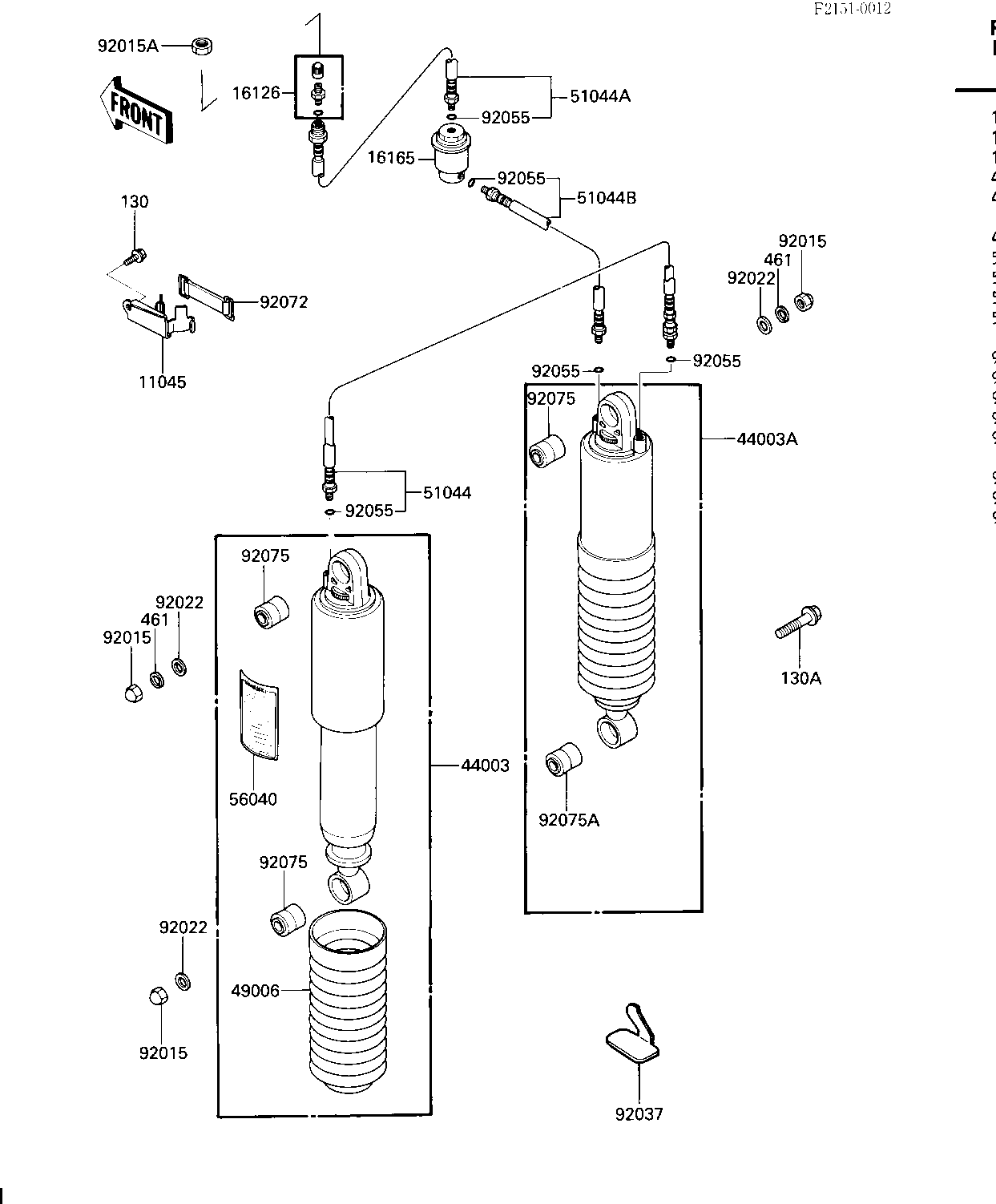

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11045 | 11045-1245 | 1 | ||
| VALVE AIR | 16126 | 16126-1052 | 1 | ||
| SEPARATOR | 16165 | 16165-1056 | 1 | ||
| DAMPER-ASSY,SHOCKABSO | 44003 | 44003-1682 | 1 | ||
| DAMPER-ASSY,SHOCKABSO | 44003A | 44003-1683 | 1 | ||
| BOOT,SHOCKABSORBER,BL | 49006 | 49006-1092 | 2 | ||
| TUBE-ASSY,SHOCKABSORB | 51044 | 51044-1079 | 1 | ||
| TUBE-ASSY,SHOCKABSORB | 51044A | 51044-1080 | 1 | ||
| TUBE-ASSY,SHOCKABSORB | 51044B | 51044-1081 | 1 | ||
| LABEL-WARNING,FRONT F | 56040 | 56040-1030 | 1 | ||
| NUT,10MM | 92015 | 92015-1360 | 3 | ||
| NUT,MAIN STAND FITT | 92015A | 92016-044 | 1 | ||
| WASHER,10.5X30X2.3,BL | 92022 | 92022-1302 | 3 | ||
| CLAMP | 92037 | 92037-1820 | 3 | ||
| "0" RING,AIR VALVE | 92055 | 92055-1094 | 5 | ||
| BAND,TOOL | 92072 | 92072-066 | 1 | ||
| BUSHING,SHOCK ABSORBE | 92075 | 92075-1141 | 3 | ||
| DAMPER,SHOCKABSORBER | 92075A | 92075-1586 | 1 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 1 | ||
| BOLT-FLANGED,10X35 | 130A | 130J1035 | 1 | ||
| WASHER-SPRING,10MM | 461 | 461K1000 | 2 |
