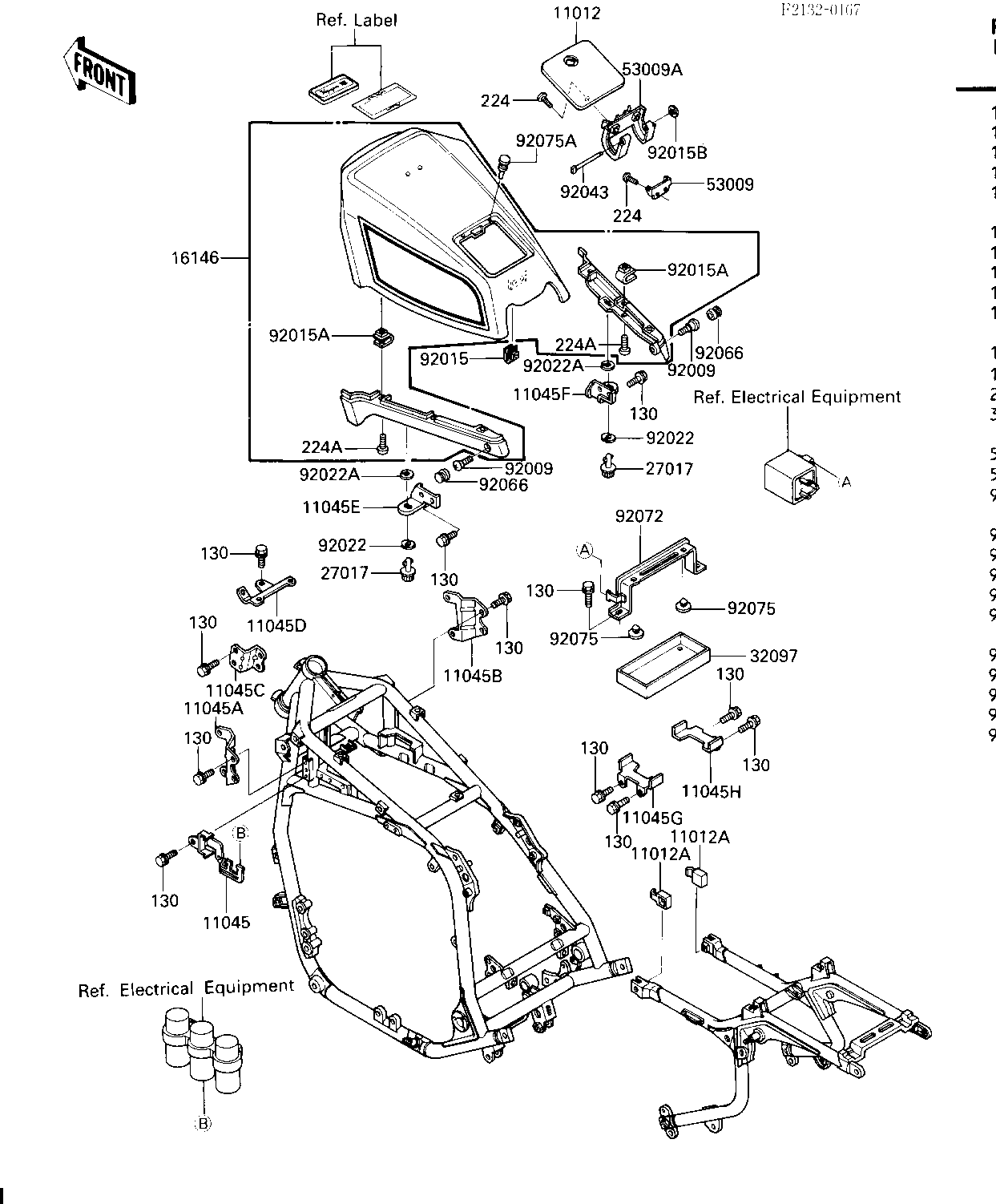

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,DUMMY TANK,L.V.RE | 11012 | 11012-1492-P5 | 1 | ||
| CAP | 11012A | 11012-1542 | 2 | ||
| BRACKET,RELAY | 11045 | 11044-1683 | 1 | ||
| BRACKET,IGNITION COIL | 11045A | 11044-1684 | 1 | ||
| BRACKET,IGNITION COIL | 11045B | 11044-1685 | 1 | ||
| BRACKET,THERMOSTAT | 11045C | 11044-1686 | 1 | ||
| BRACKET,FUSE | 11045D | 11045-1056 | 1 | ||
| BRACKET,DUMMY TANK,LH | 11045E | 11045-1077 | 1 | ||
| BRACKET,DUMMY TANK,RH | 11045F | 11045-1078 | 1 | ||
| BRACKET,BATTERY,LH | 11045G | 11045-1296 | 1 | ||
| BRACKET,BATTERY,RH | 11045H | 11045-1297 | 1 | ||
| COVER-ASSY,DUMMY TANK | 16146 | 16146-5012-V4 | 1 | ||
| LOCK,DUMMY TANK | 27017 | 27017-1124 | 2 | ||
| CASE-BATTERY | 32097 | 32097-1126 | 1 | ||
| HINGE,DUMMY TANK | 53009 | 53009-1060 | 1 | ||
| HINGE,DUMMY TANK CAP | 53009A | 53009-1066 | 1 | ||
| SCREW | 92009 | 92009-1258 | 2 | ||
| NUT,5MM | 92015 | 92015-1569 | 2 | ||
| NUT,5MM | 92015A | 92015-1573 | 6 | ||
| NUT,PUSH,2.6MM | 92015B | 92015-1576 | 1 | ||
| WASHER,WAVE,8MM | 92022 | 92022-1776 | 2 | ||
| WASHER,6.5MM | 92022A | 92022-1808 | 2 | ||
| PIN,2.6X88 | 92043 | 92043-1306 | 1 | ||
| PLUG | 92066 | 92066-1243 | 2 | ||
| BAND,BATTERY | 92072 | 92072-1194 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-078 | 2 | ||
| DAMPER | 92075A | 92075-1808 | 2 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 17 | ||
| SCREW-PAN-WP-CROS | 224 | 224B0512 | 4 | ||
| SCREW-PAN-WP-CROS | 224A | 224B0516 | 6 |
